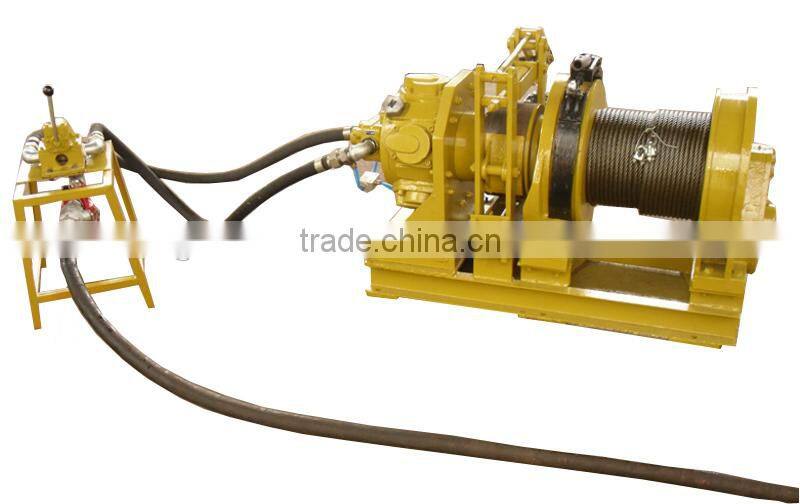

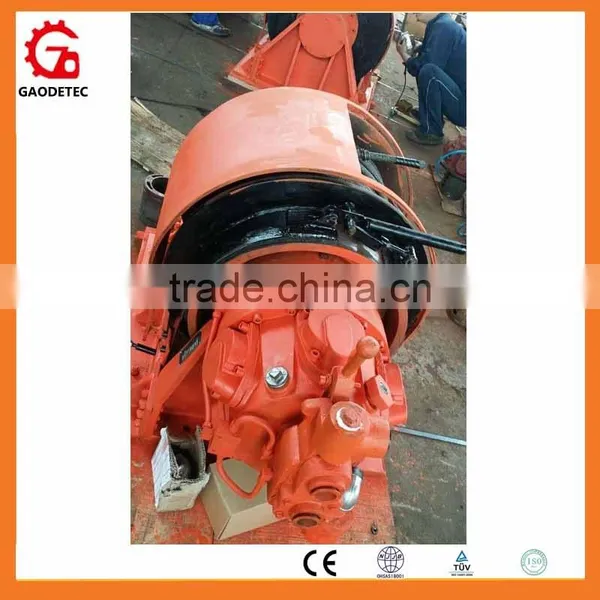

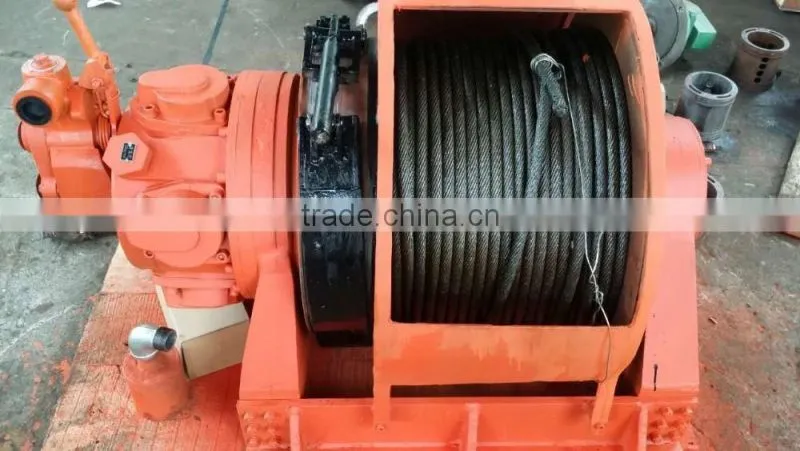

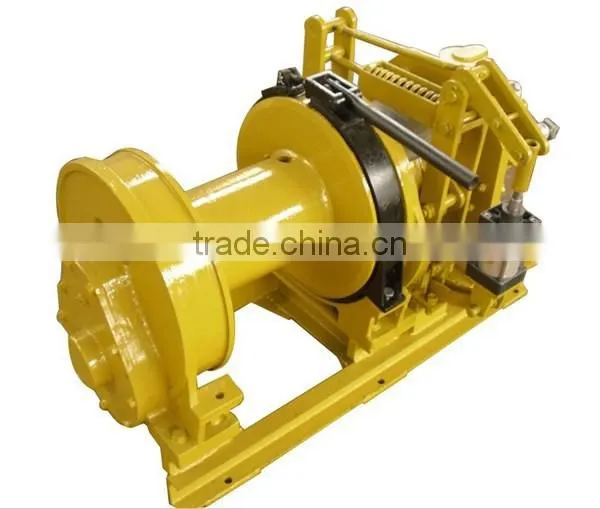

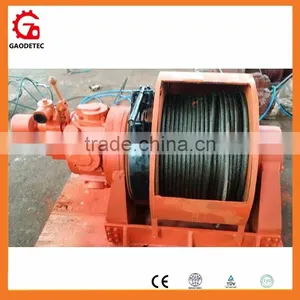

5 Ton Reasonable Design Air Winches
5 Ton Reasonable Design Air Winches
5 tons air winches is powered by piston air motor and remotely operated.
It’s mainly used for pulling or lifting heavy things in metal mine, coal mine,
construction project, oil field, etc.
Feature:
1.reasonable design, compact structure, convenient control
2.easy to operate
3.stable under extremely conditions
5 ton reasonable design air winches
5 tons Air Winch | ||||
1 | Air pressure(Mpa) | 0.63 | ||
2 | Rated Tension(KN) | 50 | ||
3 | Rated Speed(m/min) | 8 | ||
4 |
Air motor | Rated power(KW) | 8 | |
Cylinder Qty.(pcs) | 5 | |||
5 |
Drum | quantity | 1 | |
Diameter(mm) | 222 | |||
width(mm) | 335 | |||
Rope capacity(m) | 120 | |||
6 | Rope diameter(mm) | 20 | ||
7 | Air hose diameter(inch) | 1.25 | ||
8 |
Dimension | length(mm) | 1200 | |
width(mm) | 470 | |||
height(mm) | 750 | |||
Other air winches:
1Ton Air Winches:
1 | Air pressure(Mpa) | 0.6 | |
2 | Rated Tension(KN) | 10 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 4.4 |
Cylinder Qty.(pcs) | 6 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 180 | ||
width(mm) | 200 | ||
Rope capacity(m) | 120 | ||
6 | Rope diameter(mm) | 8 | |
7 | Air hose diameter(mm) | 25 | |
8 |
dimension
| length(mm) | 757.5 |
width(mm) | 350 | ||
height(mm) | 521 | ||
2 Ton Air Winches:
2 ton air winches | |||
1 | Air pressure(Mpa) | 0.6-0.8 | |
2 | Rated Tension(KN) | 20 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 8 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 222 | ||
width(mm) | 335 | ||
Rope capacity(m) | 150 | ||
6 | Rope diameter(mm) | 16 | |
7 | Air hose diameter(inch) | 1.25 | |
3 Ton Air Winches:
3 Ton Air Winches | ||||
1 | Air pressure(Mpa) | 0.6-0.8 | ||
2 | Rated Tension(KN) | 30 | ||
3 | Rated Speed(m/min) | 24 | ||
4 | Air motor | Rated power(KW) | 15 | |
Cylinder Qty.(pcs) | 5 | |||
5 |
Drum | Quantity | 1 | |
Diameter(mm) | 222 | |||
Width(mm) | 335 | |||
Rope capacity(m) | 150 | |||
6 | Rope diameter(mm) | 16 | ||
7 | Air hose diameter(inch) | 1.25 | ||
8 | Dimension | length(mm) | 1200 | |
width(mm) | 470 | |||
height(mm) | 750 | |||
10 Ton Air Winches:
10 ton Air Winches | |||
1 | Air pressure(Mpa) | 0.8 | |
2 | Rated Tension(KN) | 100 | |
3 | Rated Speed(m/min) | 6 | |
4 | Air motor | Rated power(KW) | 18.4 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | OD(mm) | 800 |
ID(mm) | 430 | ||
Width(mm) | 550 | ||
Rope capacity(m) | 100 | ||
6 | Rope diameter(mm) | 24 | |
7 | Air hose diameter(mm) | 50 | |
8 |
Dimension
| length(mm) | 2860 |
width(mm) | 970 | ||
height(mm) | 900 | ||

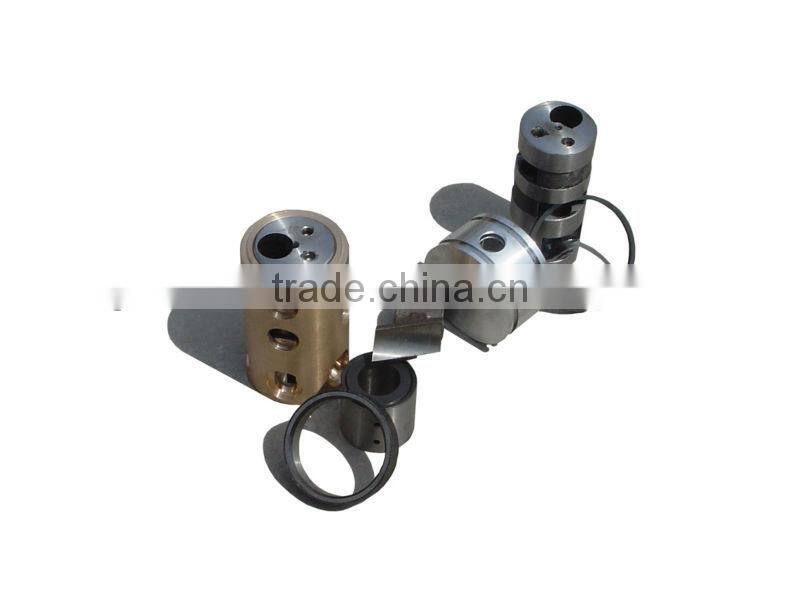

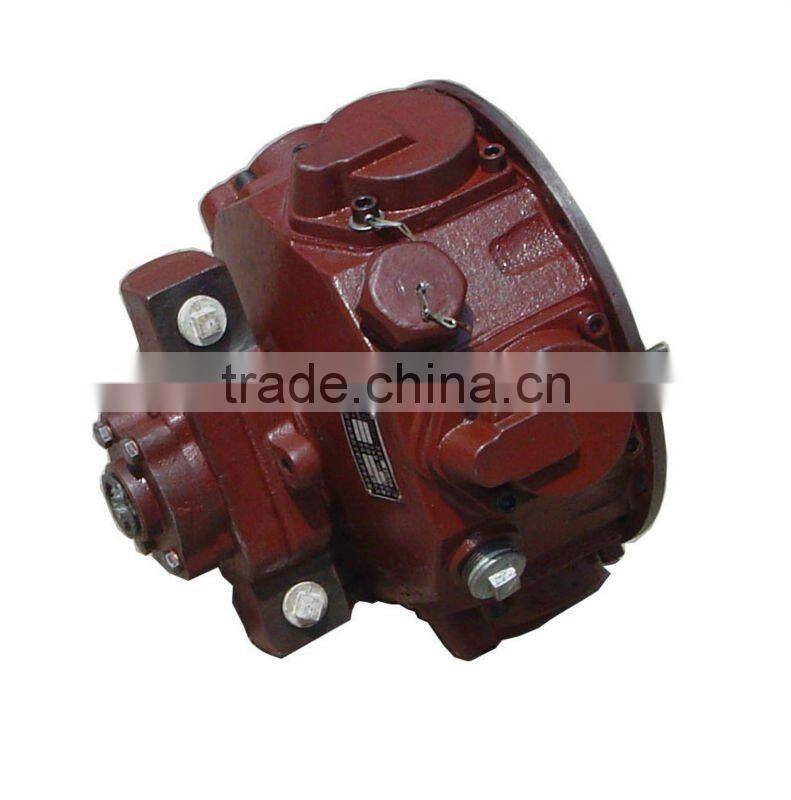

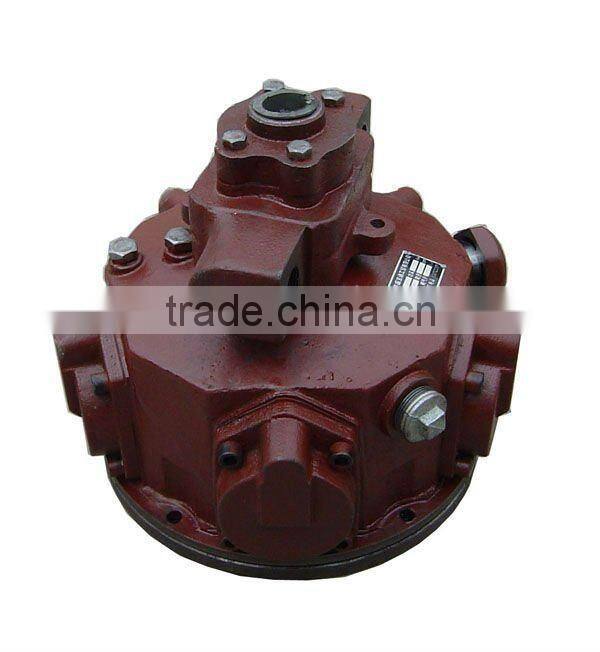

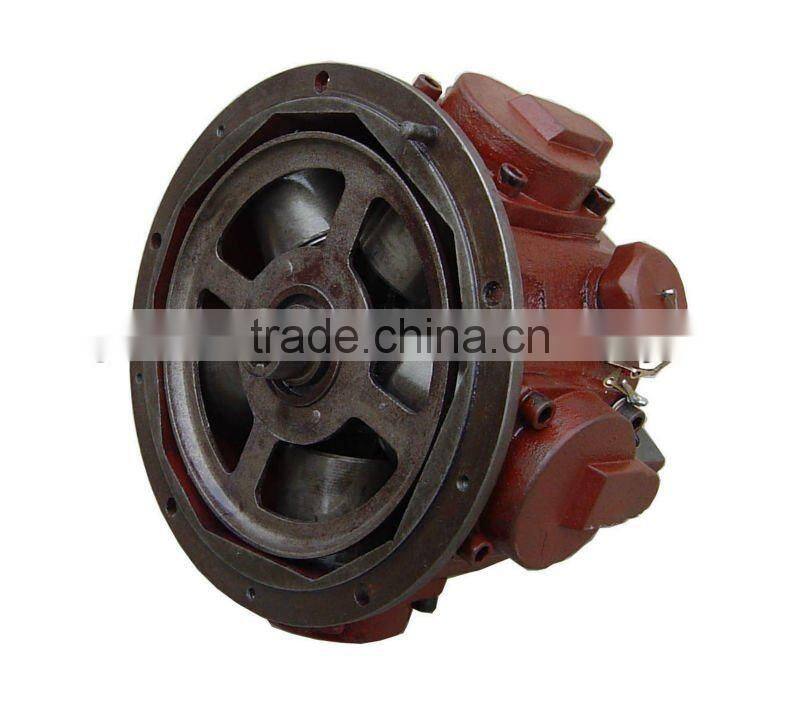

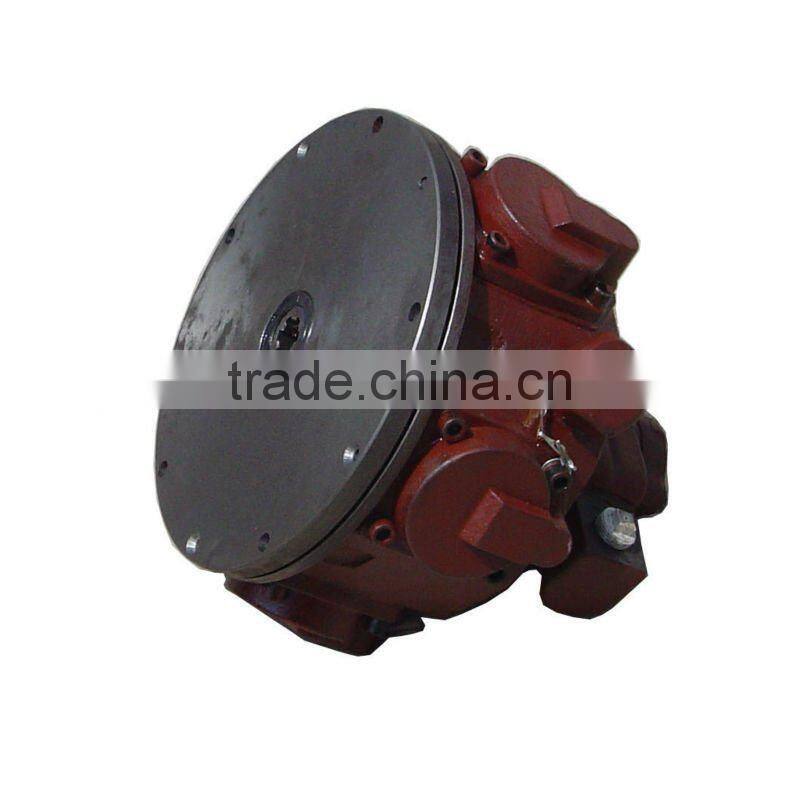

Piston Air Motor:
