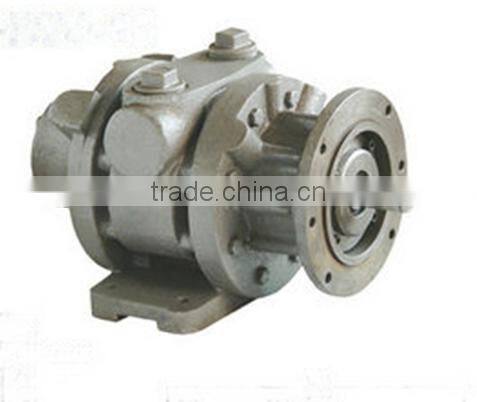

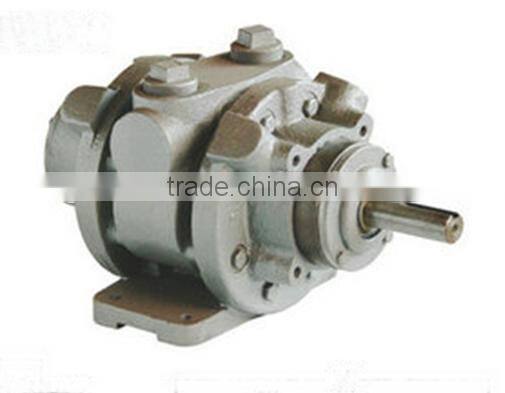

16AM Low Price Small 10Hp Vane Air Motor
With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy. Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion. It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.
16AM Vane Air Motor features:
- Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
- proof water, fire, moisture and explosion
- can work in humid, high temperatures, high dust and other proof working environment
16AM Low Price Small 10Hp Vane Air Motor
Model | Maximum Speed | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air consumption
| Rotate Speed | Torque | |||||
hp | kw | Nm | lb.in. | rpm | m3/h | cfm | rpm | Nm | lb.in. | |
1AM | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.6 |
1UP | 0.45 | 0.33 | 0.58 | 5.25 | 6000 | 47 | 27 | 500 | 0.68 | 6.0 |
2AM | 0.93 | 0.68 | 2.20 | 19.50 | 3000 | 49.5 | 30 | 350 | 3.05 | 26.1 |
4AM | 1.70 | 1.30 | 4.10 | 36.00 | 3000 | 132.5 | 78 | 300 | 6.3 | 56 |
6AM | 4.00 | 3.00 | 10.00 | 84.00 | 3000 | 228 | 128 | 300 | 13 | 115 |
8AM | 5.25 | 3.90 | 14.40 | 132.00 | 2500 | 293 | 175 | 300 | 21 | 185 |
16AM | 10.0 | 7.00 | 34.00 | 290.00 | 2000 | 475 | 275 | 300 | 43 | 372 |

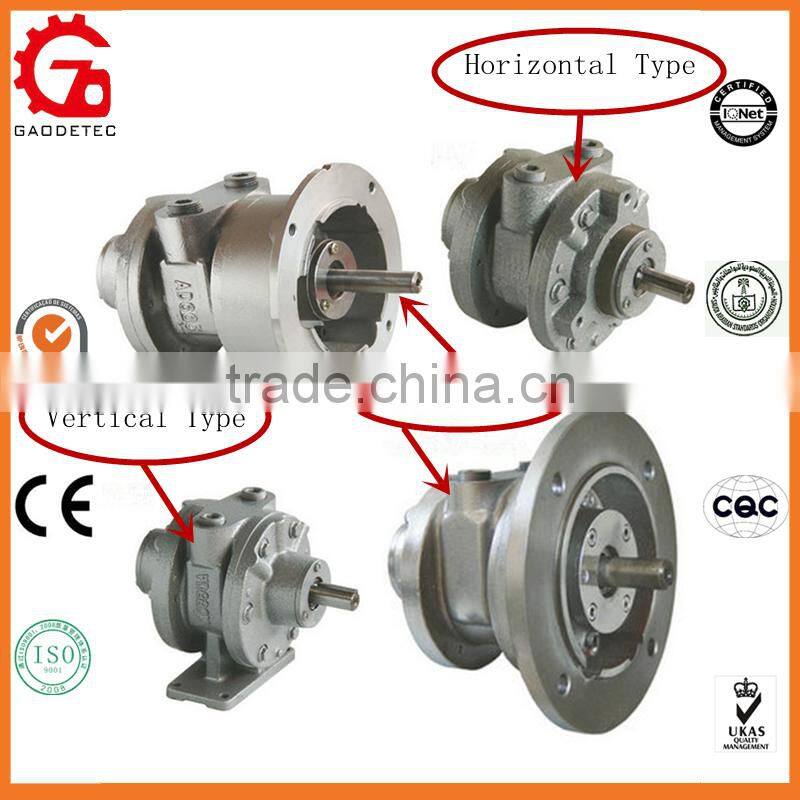

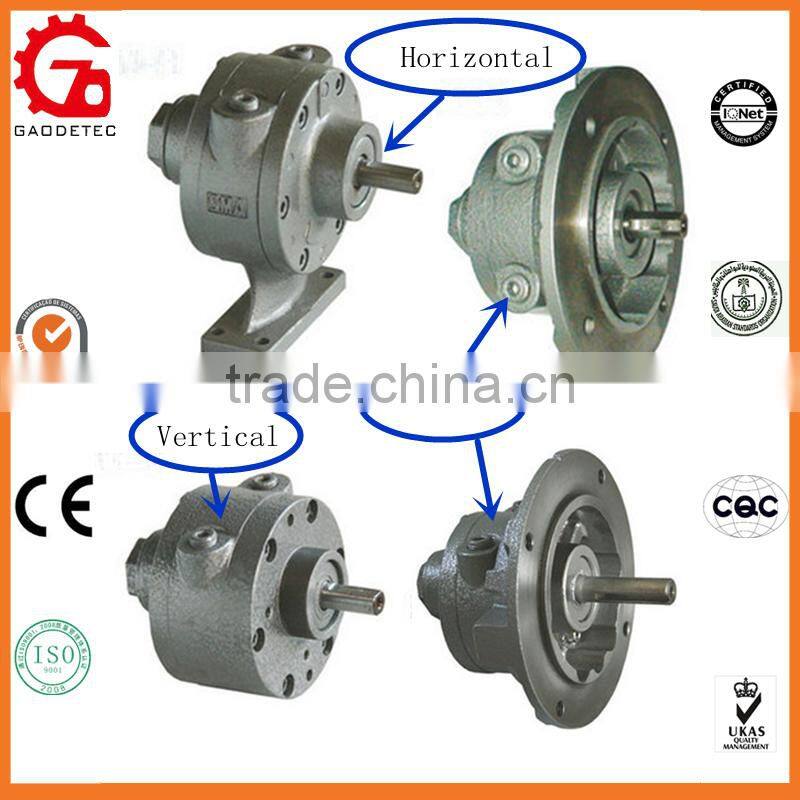

Other Mode Vane Air Motor:
1AM:
1UP:
2AM:
4AM:
6AM:
8AM:
Oilless Vane Air Motor:
Stainless Steel Air Motor:
Air Gear Motor:
Workshop:
