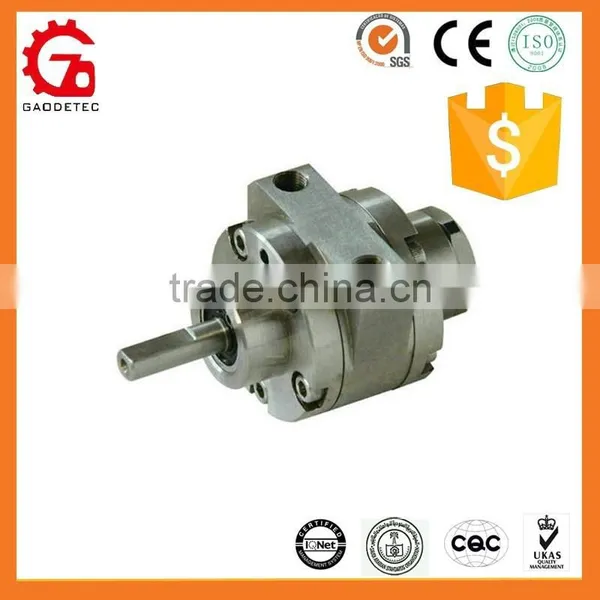

0.45Hp 0.33Kw Hub Mounting Small Air Motor
With compressed air as actuating medium, vane air motor makes use of the expansion of compressed
gases; convert the pressure energy into mechanical energy. Air motor has simple structure, small size,
light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof
water, fire, moisture and explosion. It can work in humid, high temperatures, high dust and other proof
working environment. Besides mine, rock drilling and loading, it was also widely used for ships,
metallurgical, chemical, paper and other industries.
1AM-V-S-113:
1AM-VF-S-113:
1AM-V-S-127:
4AM-NRV-251SS:
0.45Hp 0.33Kw Hub Mounting Small Air Motor
- Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
- proof water, fire, moisture and explosion
- can work in humid, high temperatures, high dust and other proof working environment
0.45Hp 0.33Kw Hub Mounting Small Air Motor
Model | Operation Data | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air Consumption | Rotate Speed | Torque | |||||
Hp | Kw | Nm | Ib.in | rpm | M^3/h | cfm | rpm | Nm | Ib.in | |
1AM-V-S-113 | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.60 |
1AM-VF-S-113 | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.60 |
1AM-V-S-127 | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.60 |
4AM-NRV-251SS | 1.7 | 1.30 | 4.1 | 36.0 | 3000 | 132.5 | 78 | 300 | 6.3 | 56.00 |
Other Model Vane Air Motor:
Technology Parameters:
Model | Maximum Speed | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air consumption
| Rotate Speed | Torque | |||||
hp | kw | Nm | lb.in. | rpm | m3/h | cfm | rpm | Nm | lb.in. | |
1AM | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.6 |
1UP | 0.45 | 0.33 | 0.58 | 5.25 | 6000 | 47 | 27 | 500 | 0.68 | 6.0 |
2AM | 0.93 | 0.68 | 2.20 | 19.50 | 3000 | 49.5 | 30 | 350 | 3.05 | 26.1 |
4AM | 1.70 | 1.30 | 4.10 | 36.00 | 3000 | 132.5 | 78 | 300 | 6.3 | 56 |
6AM | 4.00 | 3.00 | 10.00 | 84.00 | 3000 | 228 | 128 | 300 | 13 | 115 |
8AM | 5.25 | 3.90 | 14.40 | 132.00 | 2500 | 293 | 175 | 300 | 21 | 185 |
16AM | 9.50 | 7.00 | 34.00 | 290.00 | 2000 | 475 | 275 | 300 | 43 | 372 |
1AM:
1UP:
2AM:
4AM:
6AM:
8AM:
16AM:
0.45Hp 0.33Kw Hub Mounting Small Air Motor
0.45Hp 0.33Kw Hub Mounting Small Air Motor
