Manual Single Punch Tablet Press

Manual Single Punch Tablet Press

Technical information

We have many models . Such as Curtain punching

40#,42#,45#,48#,53#,57#,74#,76#,100#.

According to your requirement, we will choose the right one for you.

Advantages

(1) simple structure

(2) easy to use

(3) competitive price

(4) small order acceptable

Operation Instruction for  Curtain Punching Bear

Step 1: measuring hole pitch ,using the special extend-retracted ruler to locate and draw the cut-off rule.

Step 2: folding the curtain to the shape of N according to the cut-off rule that was made in step 1 and aligning , then use the clamp to fix the curtain

Step 3: drawing a cross at the middle of fixed curtain, which helps to make the hole pitch equal, then put the folded curtain into the fixture

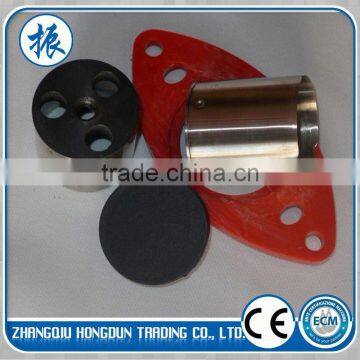

Step 4:aligning the cross and the round hole of the fixture and then fix the fixture

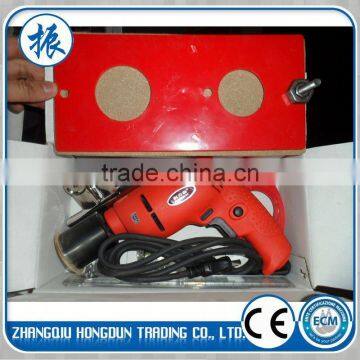

Step 5:start punching: press the fixture with the hand and adjust the electric drill to prograde(clockwise),be careful for work

Step 6:press the fixture with foot and operate as step5.

Step 7:separating the fixture from curtain and spreading the curtain gradually

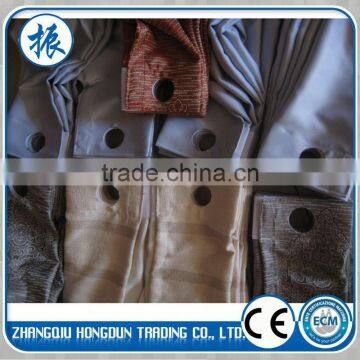

Step 8:spreading the punched curtain and fasten the rings. the picture is the curtain of 4.5meter

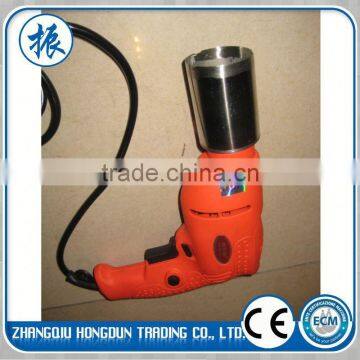

Step 9:fasten the whetstoneon the electric drill to sharpen the toolbit. sharpen the toolbit frequently, then you will punch more beautiful holes

Product Pictures
