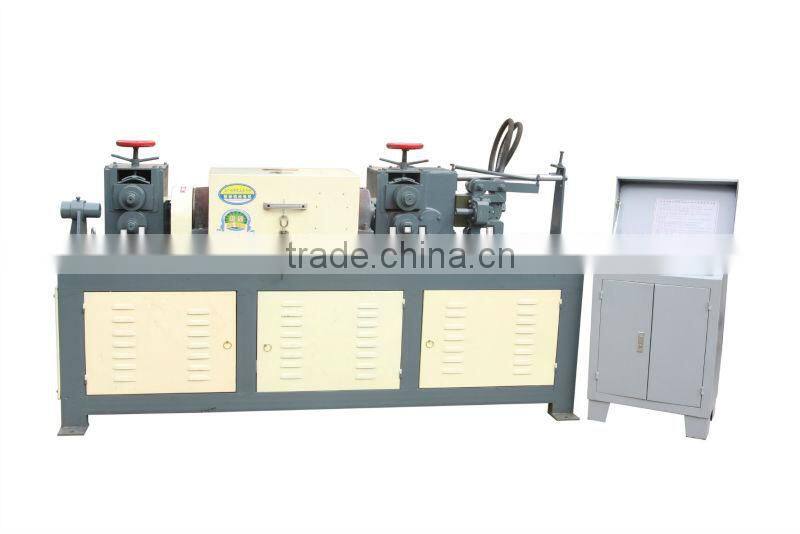

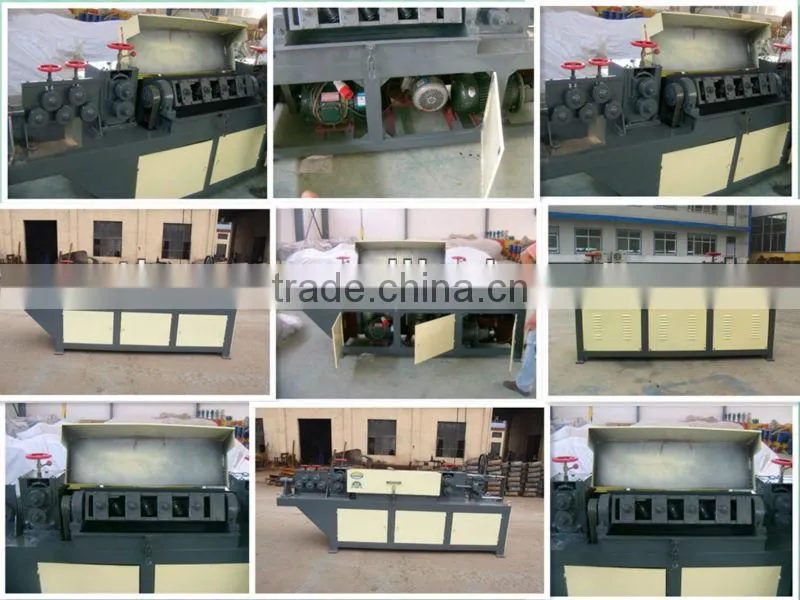

GTQ5-12 CNC Wire Straightening and Cutting Machine
Features:1.can straightening and cutting 4-14mm round bar
2.three pieces international standard copper motor
3.one year quality guarantee
Details introduction:
1.we adopt patent technology and innovate bravely,it can use directly when the power on without any debug.
2.Easy operating: highly automatic, only one need without any professional training when the machine works.

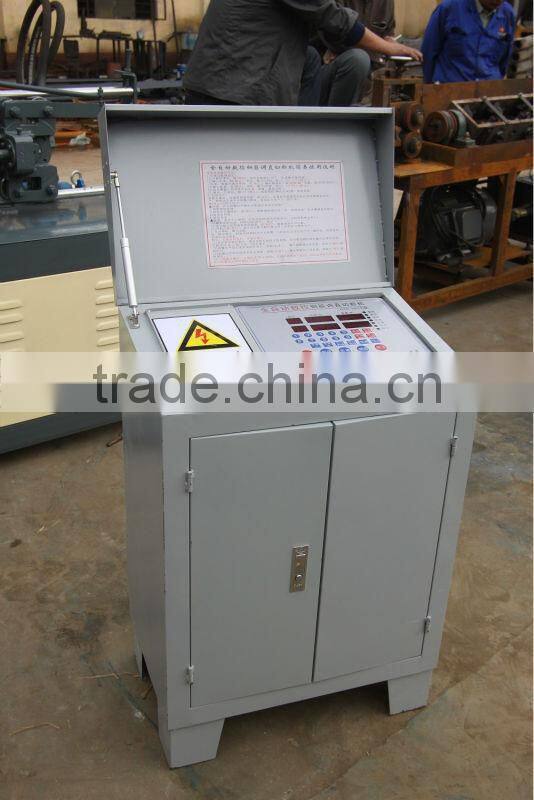

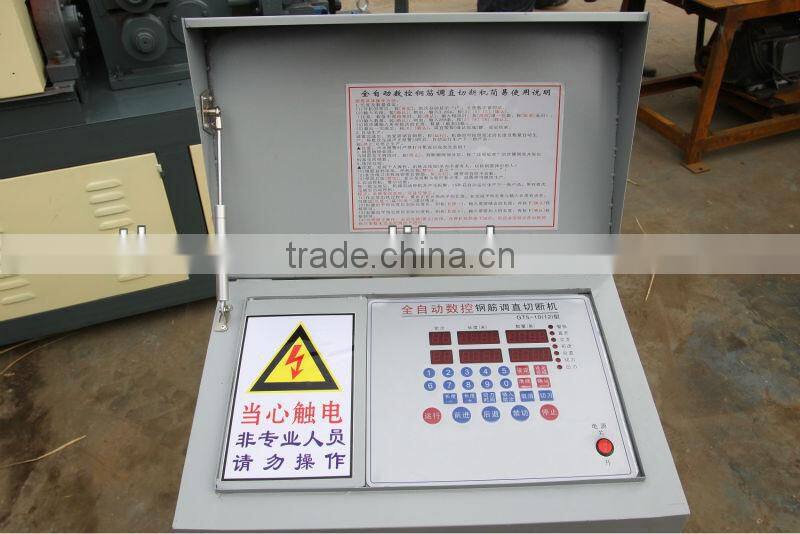

3.Equipped with automatic counter ,length device. Quantity ,length is flexible to change.
The function of straightening and cutting is stable and safe. Reasonable structure, easy maintenance, accurate length, reliable performance and continuous working.
4.Low vibration and voice, convenient adjusting.
5.The wire will be smoothly after straightening , high efficient.
Usage: suitable for straightening and cutting of 4-14mm round steel and 4-12mm deformed steel. Automatic CNC system makes it easy to operate and improve the working efficiency and straightening accuracy. Especially suitable for big building site and metal processing company.
Main data:
Straightening diameter:4-14mm
No. of straightening wheel: 5 pics
Speed of working:35-42m/min(high/low speed adjustable)
Cutting space:800-900mm (can be loger)
Error of cutting length:±0.5cm
Straightening accuracy:±2mm/m
Motor power: 16KW(Traction 3KW, Straightening 7.5KW, Cutting 5.5KW)
Overall size: 2360×900×1160(mm)
Gross weight: 1150kg
Straightening diameter |
4-14mm |
Number of straightening wheel |
5 pcs |
Speed of working |
35-42 m/min (high/low speed adjustable) |
Cutting space |
800-900m(can be longer) |
Error of cutting length |
±0.5cm |
Straightening accuracy |
±2mm/m |
Motor power |
Straightening 7.5KW , Traction 3KW , Cutting 5.5KW |
Overall dimension |
2360*690*1160mm |
Gross weight |
1150kg |
