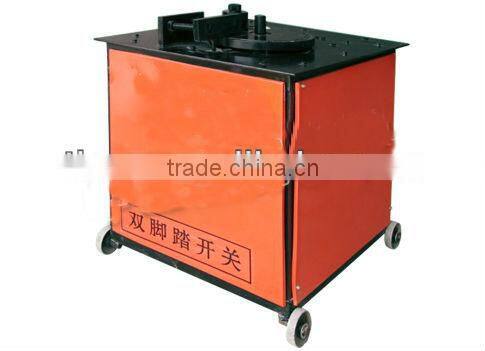

GW32 Stirrup bending machine
We are offering our client an excellent quality range of bar bending machine. These high quality bar bending machine are made from high quality raw materials which ensures high durability at its user ends. Our range of bar bending machine are widely finds its valuable application in various industrial sectors such as bridges, tunnels and other giant construction projects.
Features: 1, classic design,which means easy operation, safe working, and reliable quality. it is widely used at the construction jobs of bridge, tunnel and buildings, etc.
2, the worm wheel design makes it more powerful than the common gear wheel at working
Main Characteristics:
1) GW32 bender is a stirrup bending equipment used on construction project. It can bend bar diameter up to 32mm for Round Steel Bar into Various angles. And it is easy to operate ,with safe working and reliable quality.
2) Two foot switches can be adjusted between 90 °and 135° according to the need. Its working efficiency is about 500 pieces per hour with tidy angles under the operation of skilled worker.
Rated bending capacity,φ32mm
Max.bending angle,200°
Speed of mainshaft,18 r/min
Motor power,3kw
Overall size,670×670×780mm
Gross weight,250kg
GW32
Rated bending capacity |
32mm |
Max.bending angle |
200 |
Speed of main shaft |
18r/min |
Motro power |
3KW |
Gross weight |
250kg |
Overall dimension |
670*670*780mm |
