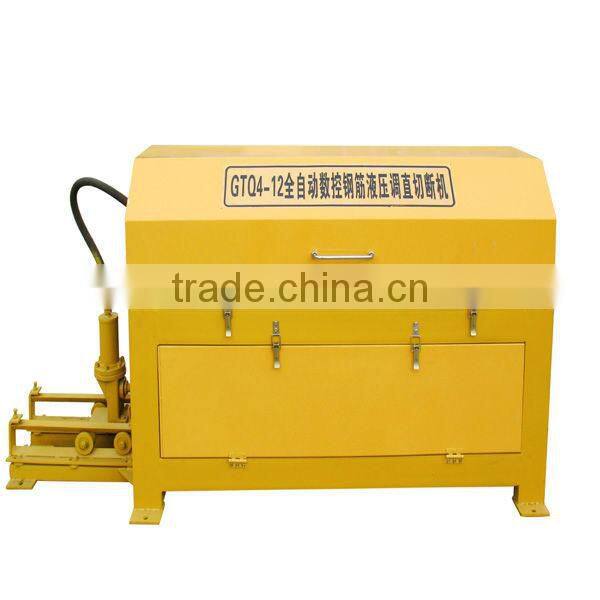

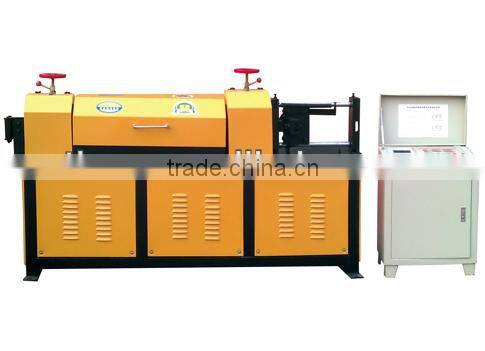

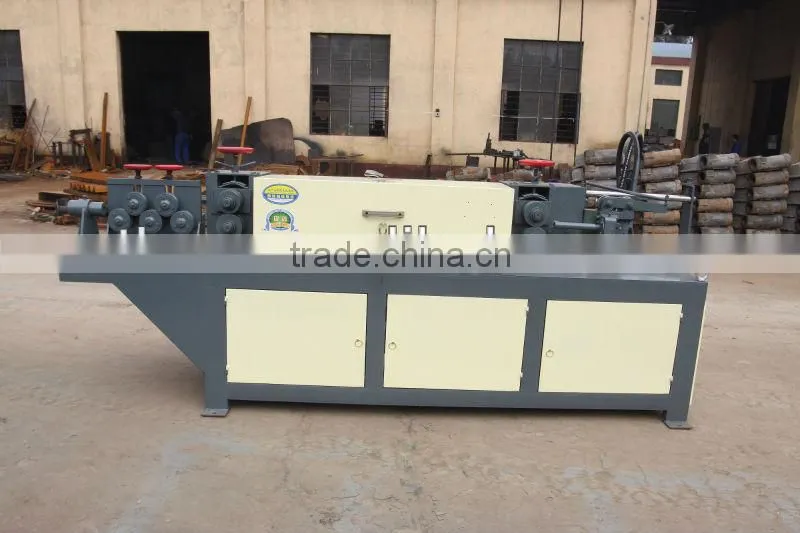

GTQ4-12 small wire straightener and cutter
Usage: suitable for straightening and cutting working of Φ4-12mm round steel and Φ4-10mm deformed steel, automatic CNC operation with high accuracy and working efficiency. Especially suitable for building sites and rebar processing factory.
Main data for small wire straightener and cutter
Model:GTQ4-10
Straightening diameter: Φ4 to Φ12mm
Working speed: 25-35m/min
Cutting space: 900mm (can be longer)
Cutting length error: ±0.8cm
Straightening accuracy: ±2mm/m
Motor power:5.5KW
Overall size: 1760*600*800mm
Weight: 280kgs
Model | Straightening diameter | Power
| Working speed | Revolving speed | Gross weight | Overall size (mm) |
GTQ4-10 | φ4-10mm | 4 kw | 25- 35m/min | 680r/min | 230 kg | 1760×710×1000 |
GTQ4-12 | φ4-12mm | 5.5 kw | 25- 35m/min | 680r/min | 240 kg | 1760×710×1000 |
Details for small wire straightener and cutter
