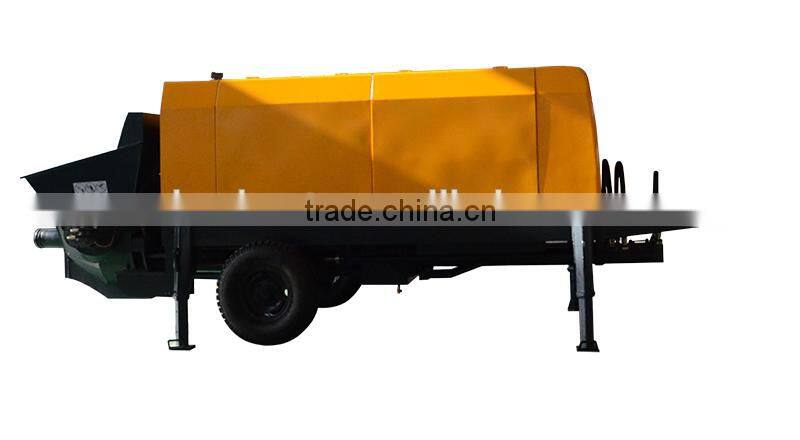

LHBT35-11S ISO concrete injection pump electric motor
Brief introduction of concrete pump electric motor :
Hydraulic concrete pump is a new version machine which is mainly used for conveying concrete mortar, slurry mortar or fine stone aggregate concrete in high-rise buildings.
The small model concrete pump is smaller, lighter and it is easier to be moved than the large model concrete pump.
It has been wildly used in many projects such as high buildings, municipal construction, tunnel, culverts, electricity, power, traffic and so on.
Specification of concrete pump electric motor :
Model No./Concrete pump |
LHBT35-11S |
Max. theoretical concrete pumping pressure (Mpa) |
Low pressure 5.3 / high pressure 11 |
Max. theoretical concrete output (m³/h) |
Low pressure35/ high pressure16 |
Theoretical vertical conveying height (m) |
150 |
Theoretical level transmission distance (m) |
400 |
Concrete tube conveying diameter (mm) and Max. Aggregate particles (mm) |
89 30mm 108 35mm |
Rated power (kw) |
45 |
Hopper volume (m³) |
0.45 |
Filling height (mm) |
1100 |
Hydraulic oil tank volume |
260L |
Distribution Valve |
S valve |
Overall dimension (L×W×H)(mm) |
3990*1670*1650mm |
Total weight (kg) |
2900 |
Warrantee:
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tear parts), improper operation and other manmade reasons are excluded.
Feathure of concrete pump electric motor :
use S-valve to switch the direction, for fine stone concrete conveying
good sealing S-valve, installed with floating wear resistant ring
High-quality wear resistant alloy components for long service-life
high delivery pressure for demand of high-rise and long distance projects
double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency
air cooling system, without dependence of external water supply
with re-pumping function to smooth construction of better accessibility
automatic lubrication system for long service-life
PLC system to ensure best electrical control performance
equipped with wired remote controller, easy to operate
Application of concrete pump electric motor :
Conveying heating, heat insulation, light weight foam cement mortar.
Conveying light-weight foam cement, mortar for ground heating, heat insulation.
Conveying and injection of fireproof and heat preservation materials.
Press grouting and filling for all kinds of engineering and construction.
Packing: In Nude,One unit/20GP
Delivery time: Usually in 10 working days for concrete pump electric motor .
Our Advantages and services:
Factory directly supply.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability,and high work efficiency
Best manufacturer in China.
Good after-sales service
Q1: What's the form of distribution valve for concrete pump?
A: Its S valve.
Q2: What about the output you can supply?
A: The output we can supply is from 7CBM/hour to 85CBM/hour.
Q3:The matched pipes or hoses can't meet to our requirement, how can we want more pipes or hoses?
A: Easy, you could tell us before you book it, and we will calculate the cost of the extra ones.
Q4: If over the guarantee, we need spare parts, how?
A: Here, we are always here offer service in 24hours every day.
LCP-80 concrete pump machine for sale
Diesel mobile portable trailer concrete pump
Truck mounted concrete pump truck
Placing booms
Professional production team, production line, experienced technical experts who engaged in this
industry for more than 10 years. For more information about concrete pump electric motor , please feel free to contact us.
