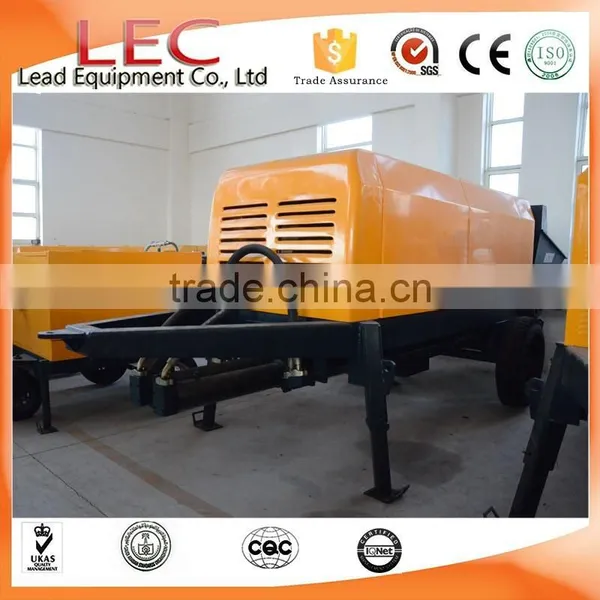

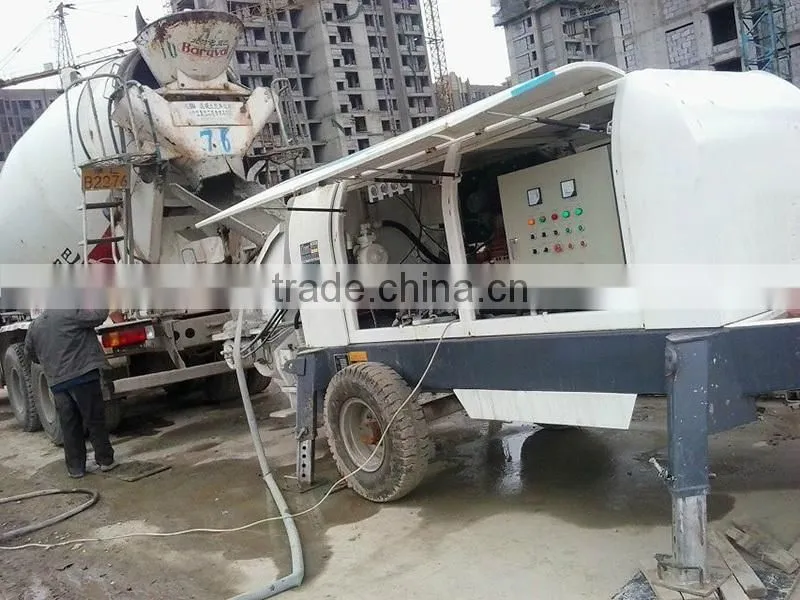

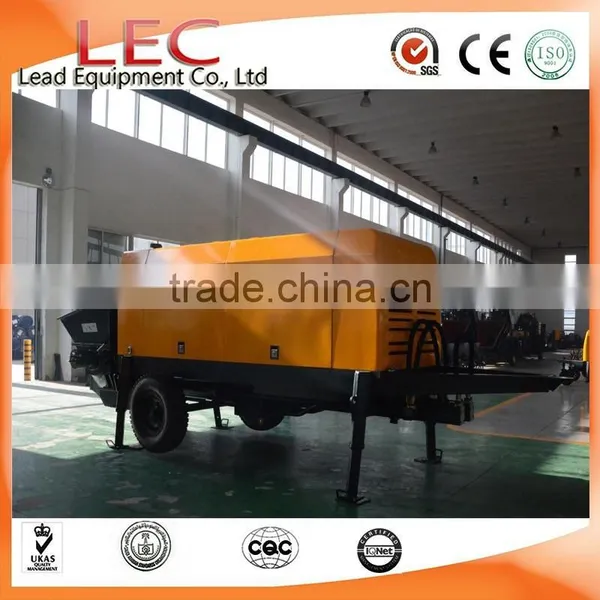

HBT25-10S small size hydraulic used stationary portable concrete pump
Brief introduction of small size hydraulic concrete pump :
Hydraulic concrete pump is a new version machine which is mainly used for conveying concrete mortar, slurry mortar or fine stone aggregate concrete in high-rise buildings.
The small model concrete pump is smaller, lighter and it is easier to be moved than the large model concrete pump.
Specification of small size hydraulic concrete pump :
Model No./Concrete pump |
HBT25-10S |
Max. theoretical concrete pumping pressure (Mpa) |
Low pressure 5.5 / high pressure 10 |
Max. theoretical concrete output (m3/h) |
Low pressure25/ high pressure14 |
Theoretical vertical conveying height (m) |
130 |
Theoretical level transmission distance (m) |
350 |
|
Concrete tube conveying diameter (mm) and Max. Aggregate particles (mm) |
76 25mm 89 30mm |
Rated power (kw) |
37 |
Hopper volume (m3) |
0.4 |
Filling height (mm) |
1000 |
Hydraulic oil tank volume |
150L |
Distribution Valve |
S valve |
Overall dimension (L×W×H)(mm) |
3770*1420*1620 |
Warrantee:
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tear parts), improper operation and other manmade reasons are excluded.
Application of small size hydraulic concrete pump
Conveying heating, heat insulation, light weight foam cement mortar.
Conveying light-weight foam cement, mortar for ground heating, heat insulation.
Conveying and injection of fireproof and heat preservation materials.
Press grouting and filling for all kinds of engineering and construction.
Packing: In Nude,One unit/20GP
Delivery time: Usually in 10 working days for small size hydraulic concrete pump .
Our Advantages and services for small size hydraulic concrete pump :
Factory directly supply.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability,and high work efficiency
Best manufacturer in China.
Good after-sales service
Q1: What's the form of distribution valve for concrete pump?
A: Its S valve.
Q2: What about the output you can supply?
A: The output we can supply is from 12CBM/hour to 85CBM/hour.
Q3:The matched pipes or hoses can't meet to our requirement, how can we want more pipes or hoses?
A: Easy, you could tell us before you book it, and we will calculate the cost of the extra ones.
Q4: If over the guarantee, we need spare parts, how?
A: Here, we are always here offer service in 24hours every day.
Q5: How are Concrete Pump products produced?
Refined manufacturing is the platform for a quality product.
Our concrete pumps equipment is built on a rolling assembly line, which streamlines efficiency and ensures a common build. The result is a consistent, quality product that doesn’t change with each production, simplifying things for you when it comes to maintaining your working site.
Q6:OEM or ODM is available?
Yes, we can produce with your logo.
Concrete Pump
Mortar Pump
Concrete Mixer
Concrete Mixer Plant
For more information about small size hydraulic concrete pump , please feel free to contact us.
