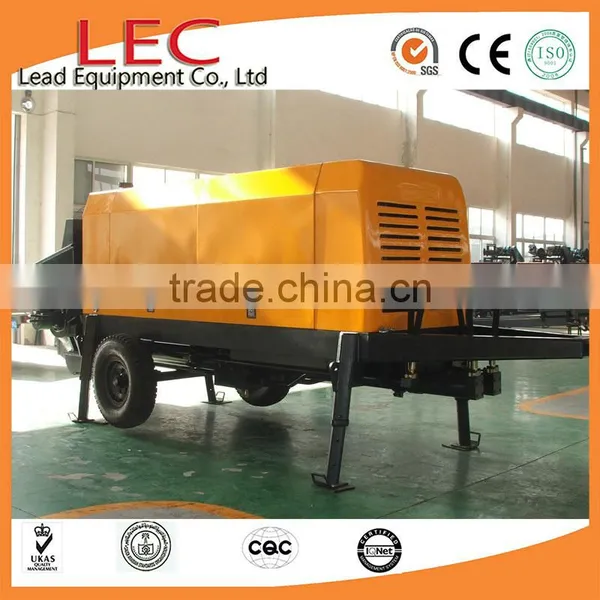

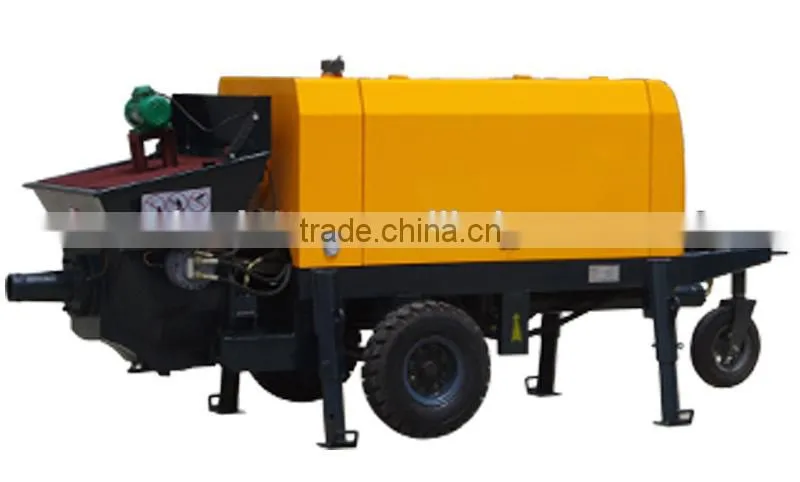

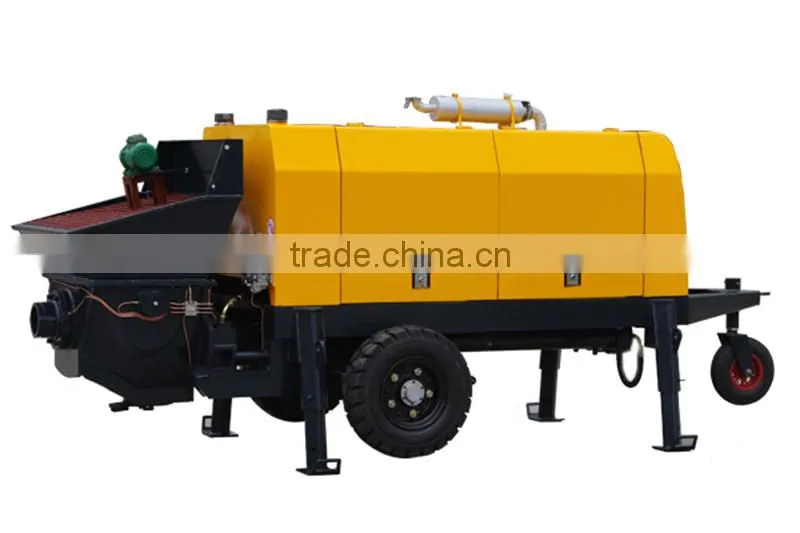

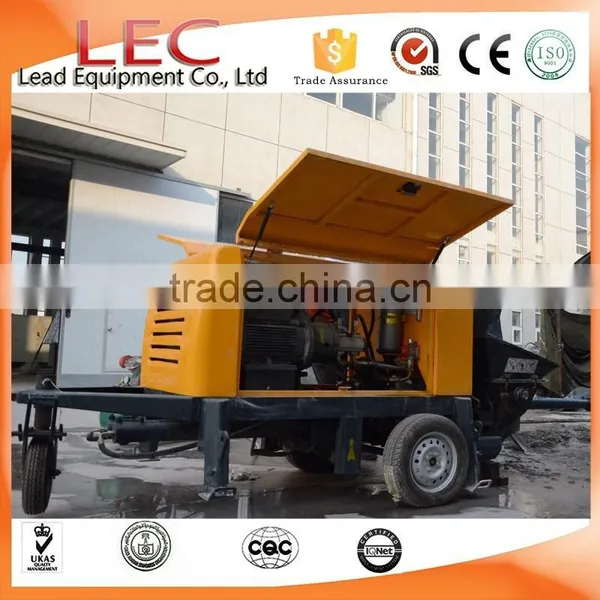

LHBT25-10S convenient portable injection concrete pump with rubber hose
Brief introduction of concrete pump with rubber hose :
Hydraulic concrete pump is a new version machine which is mainly used for conveying concrete mortar, slurry mortar or fine stone aggregate concrete in high-rise buildings.
The small model concrete pump is smaller, lighter and it is easier to be moved than the large model concrete pump.
Specification of concrete pump with rubber hose:
Model No./Concrete pump |
LHBT25-10S |
Max. theoretical concrete pumping pressure (Mpa) |
Low pressure 5.5 / high pressure 10 |
Max. theoretical concrete output (m3/h) |
Low pressure25/ high pressure14 |
Theoretical vertical conveying height (m) |
130 |
Theoretical level transmission distance (m) |
350 |
|
Concrete tube conveying diameter (mm) and Max. Aggregate particles (mm) |
76 25mm 89 30mm |
Rated power (kw) |
37 |
Hopper volume (m3) |
0.4 |
Filling height (mm) |
1000 |
Hydraulic oil tank volume |
150L |
Distribution Valve |
S valve |
Overall dimension (L×W×H)(mm) |
3770*1420*1620 |
Warrantee:
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tear parts), improper operation and other manmade reasons are excluded.
Application of concrete pump with rubber hose
Conveying heating, heat insulation, light weight foam cement mortar.
Conveying light-weight foam cement, mortar for ground heating, heat insulation.
Conveying and injection of fireproof and heat preservation materials.
Press grouting and filling for all kinds of engineering and construction.
Packing: In Nude,One unit/20GP
Delivery time: Usually in 10 working days for concrete pump with rubber hose .
Our Advantages and services for concrete pump with rubber hose :
Factory directly supply.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability,and high work efficiency
Best manufacturer in China.
Good after-sales service
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.

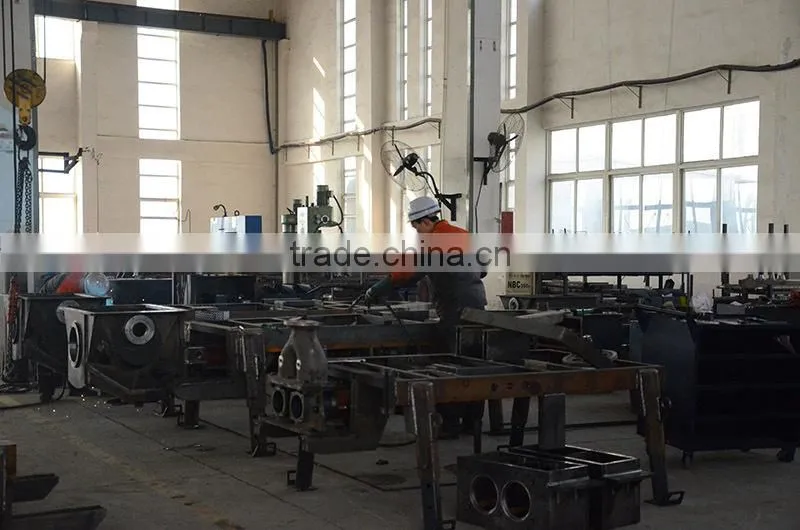

Factory:
Q1: What's the form of distribution valve for concrete pump?
A: Its S valve.
Q2: What about the output you can supply?
A: The output we can supply is from 12CBM/hour to 85CBM/hour.
Q3:The matched pipes or hoses can't meet to our requirement, how can we want more pipes or hoses?
A: Easy, you could tell us before you book it, and we will calculate the cost of the extra ones.
Q4: If over the guarantee, we need spare parts, how?
A: Here, we are always here offer service in 24hours every day.
electric concrete pump machine for sale
Diesel mobile portable trailer concrete pump
Placing booms
For more information about concrete pump with rubber hose , please feel free to contact us.
