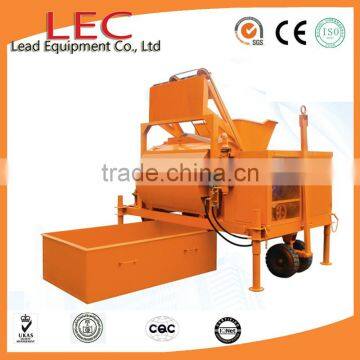

LD-30 High Intensity Foam Concrete Block Machine Offered by Chinese Supplier

LD-30 High Intensity Foam Concrete Block Machine Offered by Chinese Supplier thumbnail-1
LD-30 High Intensity Foam Concrete Block Machine Offered by Chinese Supplier photo-1
US$ 8,500 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, foam concrete block machine, Foam Concrete Machine
Brick Raw Material:
Concrete
Contact Supplier Request Quote Chat Now
Zhengzhou Lead Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, foam concrete block machine, Foam Concrete Machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 15-20m3/h
Place of Origin Henan, China
Brand Name LEC
Model Number LP-30
Voltage 3 phase,380V,50Hz/as required
Power 22.75kw
Dimension(L*W*H) 2600*2250*3000mm
Certification CE ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

foam concrete block machine

   LD-30 high intensity foam concrete block machine offered by chinese supplier





Foam Concrete Block Machinery



Product Description

This fully foamed concrete equipments operation proceeds is automatic, combined the material feeding, foam generating, mixing, and transportation together.The concrete delivering pump, coming with double hydraulic cylinder. Basing on the high output pressure, it can deliver the foam concrete to the high building. It also equips with moving wheels, universal wheels, the stretch frame, easy to move to other sites.

LD-30 high intensity foam concrete block machine offered by chinese supplier

Specifications:

1. Movable type
2. ISO,CE
3. Warranty 1year
4. Used for light concrete block



Data of Foam Concrete Block Machine Mixer LD-30:





Model

LD-30

Production capacity

15-20 m³/h

Output Volume

1500 L

Material Input Volume

2000 L

Main Shaft Revolution

32 r/min

Hopper Lifting speed

22 m/min

Mixing Motor

11 kW

Winding Motor

5.5 kW

Water Pump Motor

1.1 kW

Vibrating Motor

0.55 kW

Foaming System

5.5 kW

Max. Moving Speed

15 km/h

Total Weight

3200 kg

Overall Dimension

2600x2250x3000 mm





LD-30 high intensity foam concrete block machine offered by chinese supplier

Data of Foam Concrete Block Machine Pump LD-30 :



Model

LD-30

Max. Output

30 m³/h

Max. Conveying Pressure

8 MPa

Max. Horizontal Transporting Range

600 m

Max. Vertical Transporting Height

200 m

Max. Particle Size of Aggregates

8 mm

Cylinder Bore

80 mm

Delivery Cylinder Bore

140 mm

Max. Pressure of Hydraulic System

24 MPa

Oil Pressure Box Volume

200 L

Motor Power

30 kW

Total Weight

2200 kg

Overall Dimension

3100x920 x1300 mm







LD-30 high intensity foam concrete block machine offered by chinese supplier









Foam Concrete Block Machine's  features:

1. Competitive price;

2. Light weight;

3. Heat preservation;

4. Sound insulation;

5. Fire proofing;

6. Aseismatic;

7. High construction speed;

8. Environmentally friendly.

LD-30 high intensity foam concrete block machine offered by chinese supplier



A Complete of  Foam Concrete Block Machine line:

  • Foam Concrete Block Mixer
  • Foam Concrete Block Pump
  • Foam Concrete Block Mould
  • FoamConcrete Block Cutting Machine
  • Foaming Machine
  • Foaming Agent
  • Foam Concrete Hardener
Detailed Images

LD-30 high intensity foam concrete block machine offered by chinese supplier

LD-30 high intensity foam concrete block machine offered by chinese supplier

Usage of Foam Concrete Block Machine :

1. Make light weight foam concrete blocks;

2. Precast wall panels;

3. Cast wall in construction site;

4. Roofing insulation and flooring insulation;

5. Gap filling;

6. Road base;

7. Leveling.

 LD-30 high intensity foam concrete block machine offered by chinese supplier



The specific production process of foam concrete block machine:

1. Feeding and blend: The quantitative cement, foam agent, steady bubble enhancer is added intothe mixer, through feeding system will be quantitative strengthening agent, foaming agent, stabilizing bubble cement mixer with 30 seconds by dry blend.

2. Mixing: quantitative warm water be added into the mixer with 2 minutes by wet mixing; The quantitative foaming agent be added into the mixer with 8 to 15 seconds mixing.

3. Inject into the mold and foaming: this material be placed into the mould immediately to foaming with 3-5 minutes.

4. Preliminary maintenance: this process is done by several standing after injection moulding.

5. Demoulding: the foam concrete board can be demould is after initial set, which have the initialstrength.

6. Cutting: this foamed concrete board blank owning a certain intensity can be cut after demoulding, and the cutting specifications can be adjusted according to the need by the cutting blade;

7. Finish product maintenance: the curing time of foam concrete board should have no less than 7 days.

LD-30 high intensity foam concrete block machine offered by chinese supplier

LD-30 high intensity foam concrete block machine offered by chinese supplier

  LD-30 high intensity foam concrete block machine offered by chinese supplier



Company Information

As an unique supplier with ISO 9001 and CE certificate in China, we have been exported to the USA, Canada, India, ,Malasia, Pakistan, Korea, Baharain, Nepal etc. What's more, they have received praise with good quality and excellent after-sale service.

LD-30 high intensity foam concrete block machine offered by chinese supplier

Our Services



Our customer will get a one-stop service:

Pre-sales service: Customers are guided to choose the best applicable products and provided the technology-advanced, energy-saving and practical process. We are responsible for the local planning and design.



Middle-sales Service: Customers are welcome visit our factory for the spot simulation test and propose advices according to contract. We are pleasure to accept them.



After-sales service: Customers are available to get the technology support, including the installation, debugging and operation-training.

FAQ



1. Why choose Lead  foam concrete blocks machine?

  • Duplex full-hydraulic driven system to ensure high output pressure for high-rise construction
  • Automatically control the proportion of the various components, density of foaming cement easy to be adjusted
  • High-quality wear resistant components for long service-life and also provide after-sales service security
  • Installed with walk round, can move on the ground or mounted on the truck .

2. What is the electric voltage and rate?

       A: Our local electric voltage is 380 V and 50 Hz and the electric voltage can be       revised according to the local situation.

3. Warranty period your company offer for us?
       A: 12 months after installation.
