Help CenterLEC Prestressing Concrete Steel Wires Tensioning Machine
Related Products
-
Post Tension Prestressed Cable For Concrete PolesUS$ 510 - 750MOQ: 5 Metric Tons -
LEC Prestressing Concrete Prestressed Cable Pulling MachineUS$ 550 - 1,250MOQ: 1 Set
-
LEC Prestressing Concrete PC Strand Button Heading MachineUS$ 510 - 850MOQ: 1 Set
-
Prestressing And Post Tensioning Mixer MachineUS$ 210 - 450MOQ: 1 Set
-
Post-tensioning Tendon Prestressing Strands Wire Pusher Machine For Flat SlabsUS$ 750 - 2,000MOQ: 1 Set
Specifications
1. Used for pulling 5mm to 16mm steel wire or strands
2. High tensile force and steady performance.
3. Easy to use and in a flexible movement.
4. Competitive price with professional services.
Detail information about Steel Wire Stessing Machine and PC Strands Pulling Machine:
1. LEC Steel Wire Pulling Machine is a special equipment used in pulling 5mm to 9mm steel wires.
2. LEC PC Strand Pulling Machine is specially used in pulling 12.7mm to 16mm pc strands.
3. Now we have designed an integrated steel wire pulling machine and pc strand pullling machine by improve the performance of electric oil pump and jack to make it more durable and flexible.
4. Applications: pre-cast concrete slabs, prestressed concrete beams, prestressed concrete griders construction, bridge construction and factory of hollow core slabs.
5. High tensile strength: maximum capacity can reach 500KN,or according to your requirement.
6. Big and long stroke: We have strokes of 90mm, 120mm, 150mm, 200mm, 1200mm, 1400mm for this machine. Maximum strroke can reach 1500mm or according to your requirement to manufacture.
7. We also manifacture button heading machine to fix the steel wires.
Technical parameter for Steel Wires Stressing Machine:
| Type | Rated Pressure(Mpa) | Rated tensile force(KN) | Pump Power(KW) | Tensile Stroke(mm) | Weight(kg) | Overall dimensions |
| ZLJ900 Hydraulic Tensile Machine | 63 | 40 | 1.5 | 900 | 143 | 2150*500*250 |
| ZLJ1200 Hydraulic Tensile Machine | 63 | 45 | 2.2 | 1200 | 175 | 3000*510*250 |
| ZLJ1400 Hydraulic Tensile Machine | 63 | 45 | 2.2 | 1400 | 190 | 3500*510*250 |
Technical parameter for Steel Wires Stressing Machine:
| Model | LLJ900 | LLJ1200 | LLJ1400 |
| Rated pressure(Mpa) | 63 | 63Mpa | 63 |
| Rated tensile force(KN) | 31 | 45 | 45 |
| Pump power(KW) | 1.5 | 2.2 | 202 |
| Tensile distance(mm) | 900 | 1200 | 1400 |
| Weight(kg) | 143 | 175 | 195 |
| Overall dimensions(mm) | 420x300x540 | 400x350x700 | 470x350x700 |
LEC prestressed anchor system and equipment for prestressing concrete:
We have manufactured prestressed anchors and equipment for many years, we can manufacture prestressed concrete anchor sytems and equipment according to your requirement and drawings. We also supply full complete sets of equipment for prestressed concrete and metal building construction.

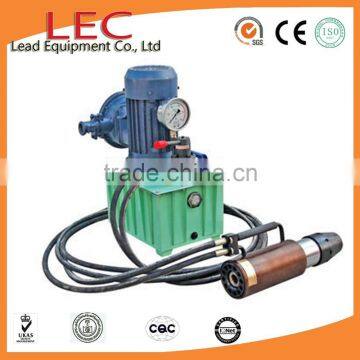

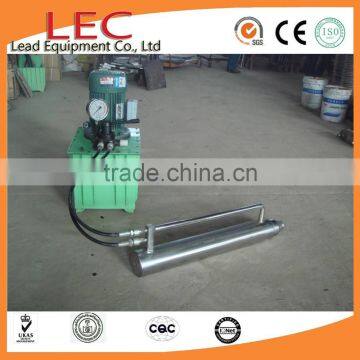

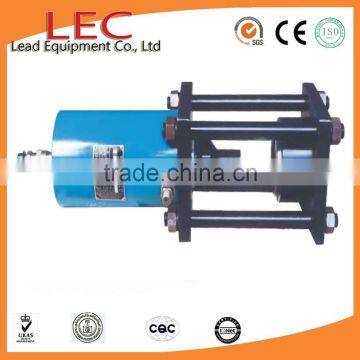

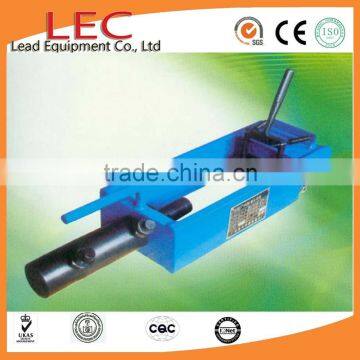

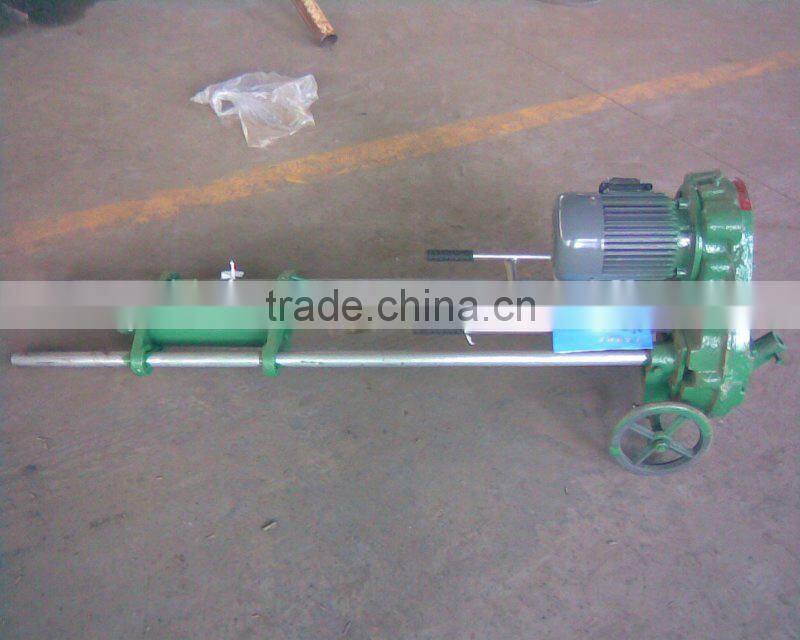

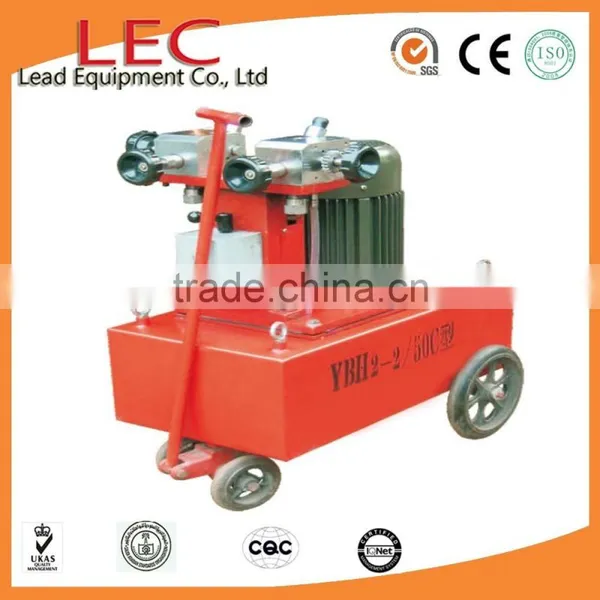

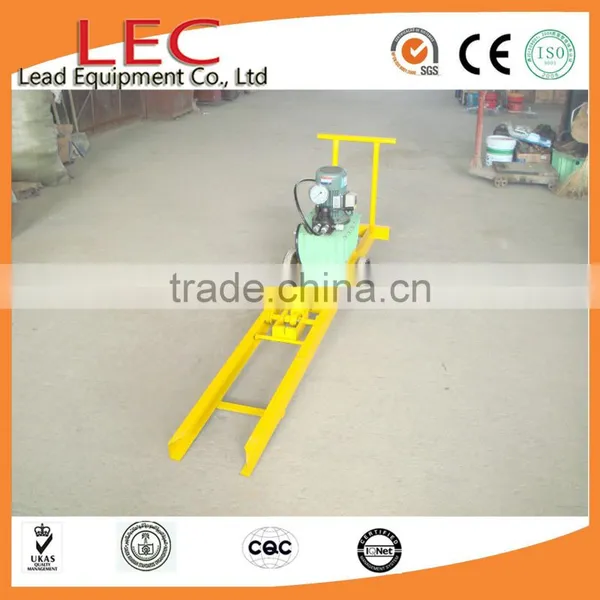

The photos for steel wires stressing machine
The photos for different sizes of steel wires anchorage and pc strand anchorage
