Introduction:
pc strand button heading machine
1. LD series button-head device is the special equipment for prestressing project.
2. It can manufacture high-strength steel wire bundle of button-head in the post-stressing pre-stress construction.
3. It is used in the pre-stressing technology of different precast yard.
4. It can heading the diameter for steel wires of 4mm, 5mm, 5 to 7mm, 9mm. And can head the diameter for pc strand of 12.7mm, 15mm, 15.24mm, 15.7mm and 16mm.
5. We can manufacture all kinds of anchor and equipment according to your requirement and drawings.
The parameter of pc strand button heading machine
| Parameter of LD series button-head device(One) | ||||||||
| Model | Rated hydraulic | Target of head | Max.buttonhead force | Order opening pressure | Heading stroke of piston | Clamping stroke of piston | Overall dimension | Mass |
| Mpa | mm | KN | Mpa | mm | mm | mm | Kg | |
| LD10 | 40 | 5 | 88.2 | 3.1 | 6 | 12 | 98X279X199 | 10 |
| LD20K | 49 | 7 | 186 | 3.2 | 7.5 | 20 | 120X303X249 | 15 |
| Parameter of LD series button-head device(Two) | |||||
| Model | Target of cut tendon | Max.Force of cutting | Stroke of cutter | Overall | Mass |
| dimension | |||||
| mm | KN | mm | mm | kg | |
| LD10 | 5 | 166.6 | 20 | 98X326X199 | 11 |
| LD20K | 7 | 323 | 20 | 120X363X249 | 16.5 |

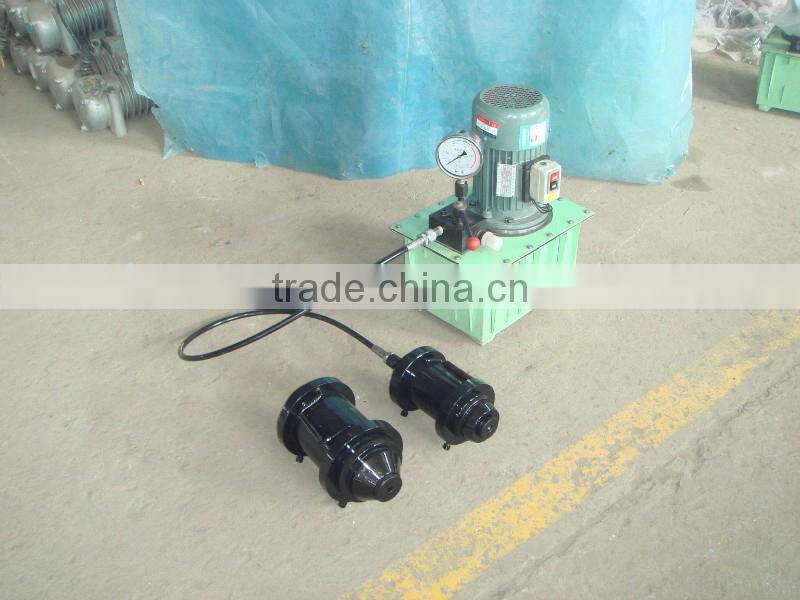

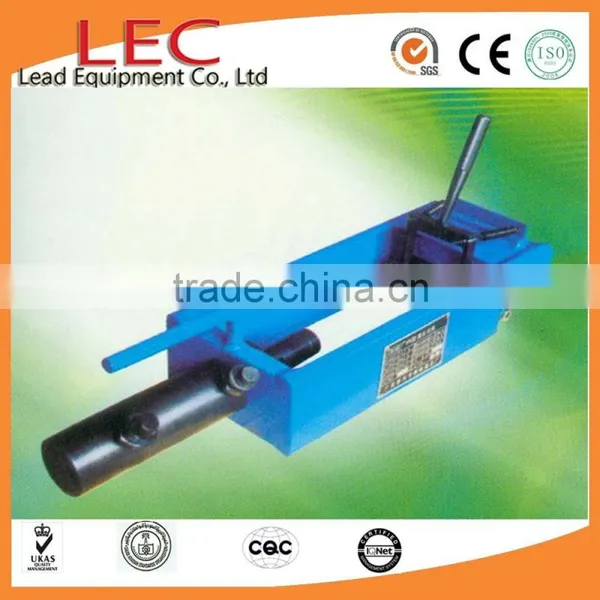

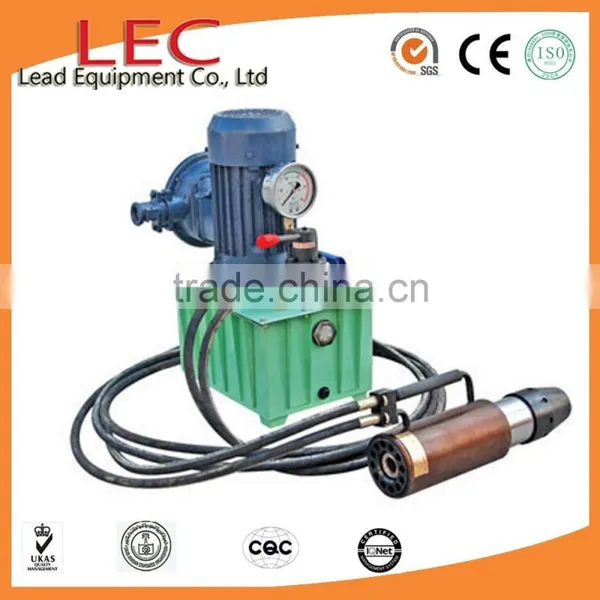

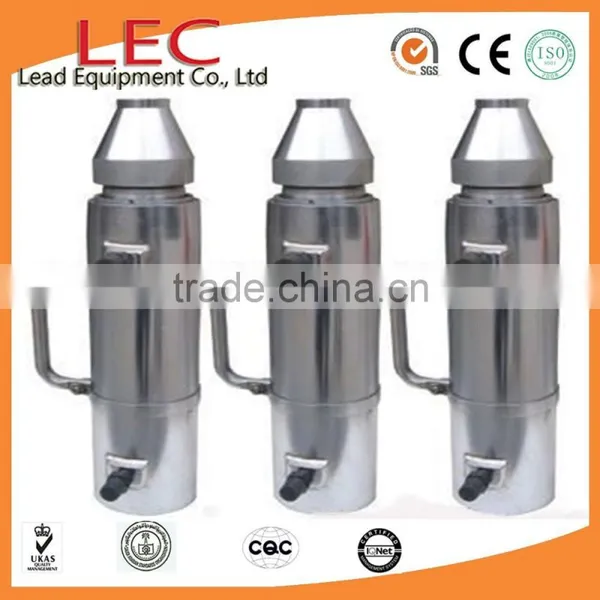

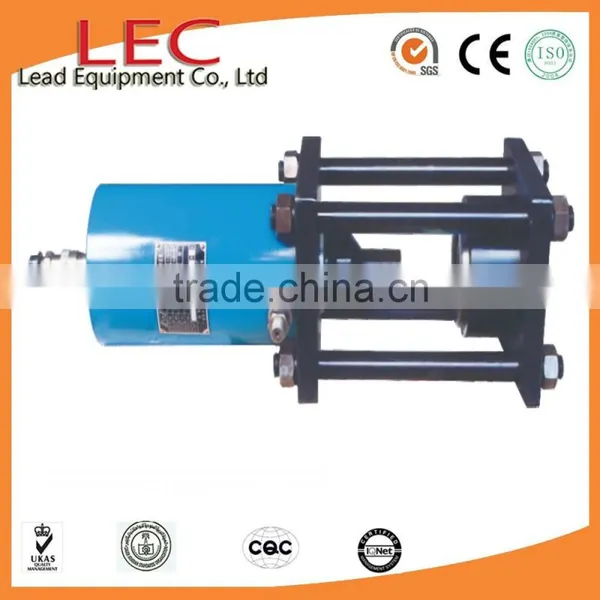

The photos for button heading machine

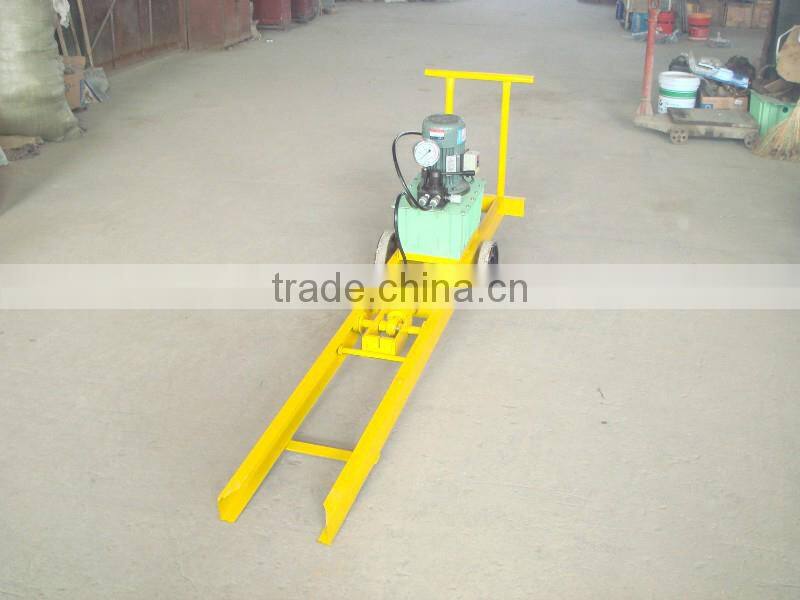

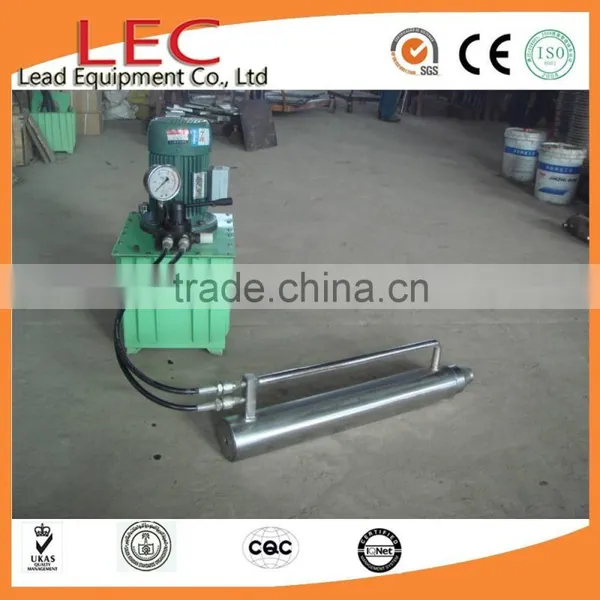

The photos for steel wires stressing machine

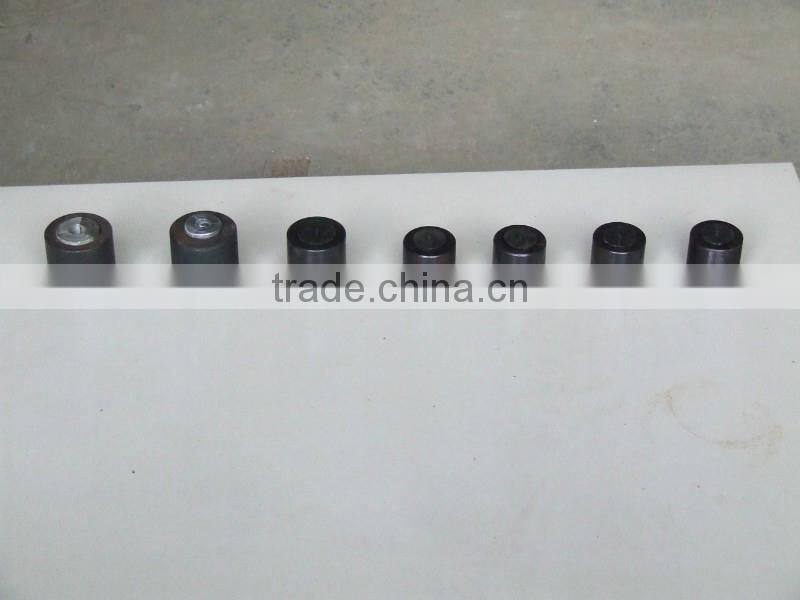

The photos for different sizes of steel wires anchorage and pc strand anchorage
