Specifications

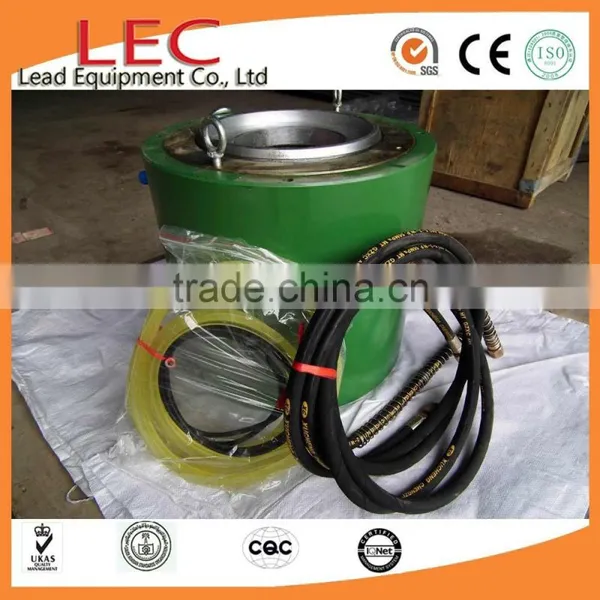

hydraulic hollow jack
1. Type: YDC multi-strands jack
2. Usage: our YDC Cross Core Jack can tension numbers of pc stands from 1 to 55 strands.
3. Matched Oil Pump: 50Mpa, 63Mpa Electric Oil Pump
4. Application: bridges, high buildings, coal mine , railway and subway, water conservancy and hydropower engineering .
5. Features: it can tension the followings PC Strand and Stel Rebar
A It can tension standard pc strand diameter 12.7mm, 15.24mm, 15.7mm, 16mm pc strand.
B It can tension non-standard pc strands diameter 8.0mm, 9.52mmn, 10.8mm, 12.9mm. 17.8, 21.6, 21.8mm, ect.
C It also can tension 16mm, 22mm, 24mm, 26mm, 28mm, 32mm, steel rebar
6. OEM service: we provide OEM serives, you can put your logo on our products and equipement.
7. Professional Services: 1x7 days 24 hours service online, and engineer can service oversea
8. Warranty Time: One Year, we will send you Repair Kits if you need any time.
9. Our Advantages: We supply full complete set anchor system and equipment for construction, please see following
A Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire
B Multi strand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm anchors for pc strand.
C Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.
D Equipment: hydraulic jack, oil pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.
E Building materials: 12.7mm, 15.24mm, 9.53mm unbonded pc strand, bonded(bare) pc strand, metal ducts, plastic ducts, steel strip.
The technical parameter of hollow hydraulic jack
| Types of YDC | Tension Force | Pulling Stroke | operating oil pressure | Tensioning cylinder area | center hole diameter | Dimensions | E(mm) | D(mm) | K(mm) | L(mm) |
| YDC650 | 650 | 200 | 50 | 13745 | Φ63.5 | Φ180×330 | 120 | 700 | 1350 | |
| YDC1100 | 1100 | 200 | 60 | 20498 | Φ80 | Φ225×330 | 150 | 230 | 700 | 1350 |
| YDC1500 | 1500 | 200 | 53 | 30222 | Φ94 | Φ270×330 | 170 | 280 | 780 | 1420 |
| YDC2000 | 2000 | 200 | 59 | 39760 | Φ110 | Φ295×330 | 190 | 324 | 780 | 1490 |
| YDC2500 | 2500 | 200 | 60 | 50579 | Φ122 | Φ325×330 | 200 | 360 | 780 | 1490 |
| YDC3000 | 3000 | 200 | 50 | 60082 | Φ153 | Φ400×525 | 230 | 400 | 780 | 1500 |
| YDC3500 | 3500 | 200 | 50 | 69331 | Φ157 | Φ420×525 | 240 | 420 | 780 | 1510 |
| YDC4000 | 4000 | 200 | 52 | 79128 | Φ160 | Φ446×580 | 250 | 446 | 780 | 1510 |
| YDC4500 | 4500 | 200 | 50 | 90981 | Φ180 | Φ480×600 | 270 | 480 | 800 | 1510 |
| YDC5500 | 5500 | 200 | 50 | 113747 | Φ210 | Φ540×630 | 290 | 540 | 850 | 1570 |
| YDC6500 | 6500 | 200 | 50 | 134706 | Φ240 | Φ580×680 | 310 | 580 | 850 | 1570 |
| YDC8000 | 8000 | 200 | 50 | 159043 | Φ240 | Φ640×730 | 340 | 640 | 860 | 1580 |
| YDC10000 | 10000 | 200 | 50 | 202318 | Φ280 | Φ720×850 | 380 | 720 | 870 | 1590 |
| YDC12000 | 12000 | 200 | 50 | 231299 | Φ280 | Φ750×900 | 400 | 750 | 880 | 1600 |
Notice: The tension journey(stroke) and capacity(tons) of this type jack can be customized according to your requirement.
1. YDC series of jacks and its matached oil pump for construction
2. Mutistrands anchor system and equipment for bonded construction
3. Flat anchor system for construction
3. Prestressed cable wire for prestressed concrete
5. Applications:
Please let me know yor detail information as followings:
1. What is your required maximum capacity(tons) and stroke(tension journey)?
2. How many numbers of pc strands do you tension?
