Post Tensioning Fixing End Anchorage
- 10000 Piece / Pieces per Month
- Shanghai Shenzhen Qingdao Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Henan, China | Brand Name: | LEC | Model Number: | LYM series |
Material: | Steel |
Product Description
Specifications

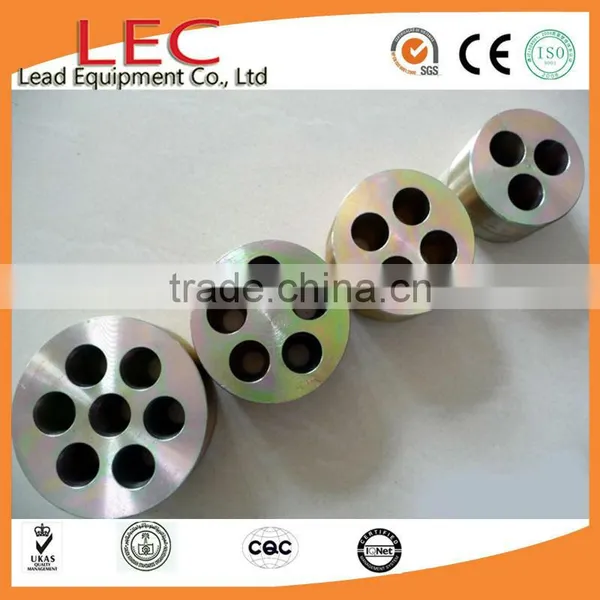

Anchor head and wedges
1.Models: LYM15(15.24MM), LYM15(15.7MM), LYM13(12.7MM), LYM9(9.52M), LYM10(10.8MM), LYM22(22.6mm), ect.
2. Types: Stress End or Dead(fixed) End
3. Three options of customers usually oder:
A: Complete sets: Anchor Head(Ring)+ Wedges+ Anchor Plates+ Spiral Spring Ring
B: Three sets: Anchor Head(Ring)+ Wedges+ Anchor Plates
C: Two sets: Anchor Head(Ring)+ Wedges
4. Best price: No matter you are a seller ot end user, we will provide you our best price for our tuture cooperation.
5. Professional services: 1x7 days 24 hours service online, and engineer can service oversea
6. Samples: We are free to provide you sample for your test
A: Please tell me how many holes anchor do you need?
B: What is your required diameter for pc strand you use?
Our Advantages:
We supply full complete set anchor system and equipment for construction, please see following:
A: Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire
B: Multi strand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm anchors for pc strand.
Flat anchor system
C: Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.
D: Equipement: hydraulic jack, oiln pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.
E: Building materials: unbonded pc strand, bonded(bare) pc strand, 4mm to 10mm pc steel wire, metal ducts, plastic ducts, steel strip.
PC Strand:
Corrugated Pipes(Ducts)
Anchorage system assembly
LYM anchorage system is consists of stressing-end anchorage, fixed-end anchorage, couple and corrugated pipe.
It can be divided into LYM15, LYM13, LYM10,LYM11,LYM18, LYM22, LBM15,LBM13 type anchorage, the anchorage system has the following features:
1. LYM15 applies to 15.2/15.24mm, 15.7mm pc strand.
2. LYM13 applies to 12.7mm, 12.5mm & 12.9mm pc strand.
3. LYM10 applies to 9.3mm, 9.53mm pc strand.
4. LYM11 applies to 10.8mm pc strand.
5. LYM18 applies to 17.8mm pc strand.
6. LYM22 applies to 21.6/21.8mm pc strand.
The number of strand can be selected from 1~55 tendons and can be added per design requirements.
Technical data for anchor system
Model | Number of Strand | Anchor Head | Corrugated Pipe I.D. | Bearing | Spiral | The Matched | |
AxBxφC | øD | Plate | Reinforcement | Jack type | |||
øExF | øGxøHxI | Numberof | |||||
Cycles | |||||||
LYM15-1 | 1 | 80x80xσ14 | ø48x47 | ø80xø6x30 | 4 | QYC270 | |
LYM15-2 | 2 | 122x100xø81 | ø50 | ø83x48 | ø130xø10x40 | 4 | YDC650 |
LYM15-3 | 3 | 125x100xø83 | ø50 | ø87x49 | ø130xø10x40 | 4 | YDC1000 |
LYM15-4 | 4 | 145x110xø90 | ø55 | ø98x50 | ø150xø10x50 | 4 | YDC1500 |
LYM15-5 | 5 | 160x120xø93 | ø55 | ø108x50 | ø165xø12x50 | 4 | YDC1500 |
LYM15-6 | 6 | 190x150xø106 | ø70 | ø128x50 | ø200xø12x50 | 4 | YDC2000 |
LYM15-7 | 7 | 190x150xø106 | ø70 | ø128x50 | ø200xø12x50 | 4 | YDC2000 |
LYM15-8 | 8 | 205x155xø125 | ø80 | ø138x54 | ø210xø14x50 | 5 | YDC2000 |
LYM15-9 | 9 | 215x170xø125 | ø80 | ø148x56 | ø220xø14x50 | 5 | YDC2500 |
LYM15-10 | 10 | 230x185xø142 | ø90 | ø158x59 | ø230xø14x50 | 6 | YDC2500 |
About our company:
1. More than 10 years experience on PT and Pre-stress Concrete Construction.
2. Supply full complete set of anchor system, pc strand, pc steel wire, hydraulic jacks, electric oil pump, corrugated pipe making machine, and other equipment.
3. China top 5 PT and Pre-stress manufacturer, with CE, ISO,Ghost certificate.
4. Products market covering more than 30 countries all of the world.
5. more than 80 engineers available for oversea service, supply face to face training on buyer’s worksite.
6. Response to customer requirement 24 hours, provide full using life technical support.
Our factory
PT and Pre-stress worksite:
1. How many holes anchor do you need?
2. Do you need stress end anchor or dead(fixed) end anhcor?
3. what is your required dimater for pc strand you use?
