Specifications
pc steel wire
1, Type: We manufacture sprial pc steel wire, plain steel wire and intended steel wire
2. Surface on pc steel wire: spriral, plain or intended
3. Strandard for your options: AISI,ASTM,BS,DIN,GB,JIS,ASTM A421, BS5896, EN10138.
4, Tensile strength: 1470Mpa-1860 Mpa
5, Features: High Strength, good quality
6, Applications: Large –span bridges on railway and highway, overhead crane beam, rock-soil anchoring project, multi-story industrial buildings, stadiums, coal mines, civil prefabricated concrete slabs, wall boards, tubular piles, PC water pies, TV towers and nuclear power stations and etc.
7. Samples: We are free to provide you samples for your test.
9. Our Advantages: We supply full complete set metal building materials and equipment for construction, please see following
A Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire
B Multi strand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm anchors for pc strand.
C Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.
D Equipment: hydraulic jack, oil pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.
E Building materials: 12.7mm, 15.24mm, 9.53mm unbonded pc strand, bonded(bare) pc strand, 4mm to 10mm pc steel wires, metal ducts, plastic ducts, steel strip.
We also manufacture anchor system, pc strand, steel wire and equipment according to your requirement and drawings.
The technical parameter of pc steel wire
| PC Steel Wire Technical Data | ||||||||
| Size/mm | Tolerance/mm | Area/mm2 | Theoretical weight-g/m | Wire Cross-sectional Size | Rib Pieces | Lay Length (Lg)/mm | ||
| Basic-roundDia (D1)/mm | OutioneDia(D)/mm | Rib Width(jk)/mm | ||||||
| 4 | ±0.04 | 12.57 | 98.6 | 3.85±0.05 | 4.25±0.05 | 0.90~1.30 | 4 | 24-30 |
| 4.8 | ±0.05 | 18.1 | 142 | 4.60±0.05 | 5.10±0.05 | 1.30~1.70 | 28-36 | |
| 5 | 19.63 | 154 | 4.08±0.05 | 5.30±0.05 | 1.30~1.70 | 28-36 | ||
| 6 | 28.27 | 222 | 5.80±0.05 | 6.30±0.05 | 1.60~2.00 | 30-38 | ||
| 6.25 | 30.68 | 241 | 6.00±0.05 | 6.70±0.05 | 1.60~2.00 | 30-40 | ||
| 7 | 38.48 | 302 | 6.73±0.05 | 7.46±0.10 | 1.80~2.20 | 35-45 | ||
| 8 | ±0.06 | 50.26 | 394 | 7.75±0.05 | 8.45±0.10 | 2.00~2.40 | 40-50 | |
| 9 | 63.62 | 499 | 8.75±0.05 | 9.45±0.05 | 2.10~2.70 | 42-52 | ||
| 10 | 78.54 | 616 | 9.75±0.05 | 9.75±0.05 | 2.50~3.00 | 45-58 | ||

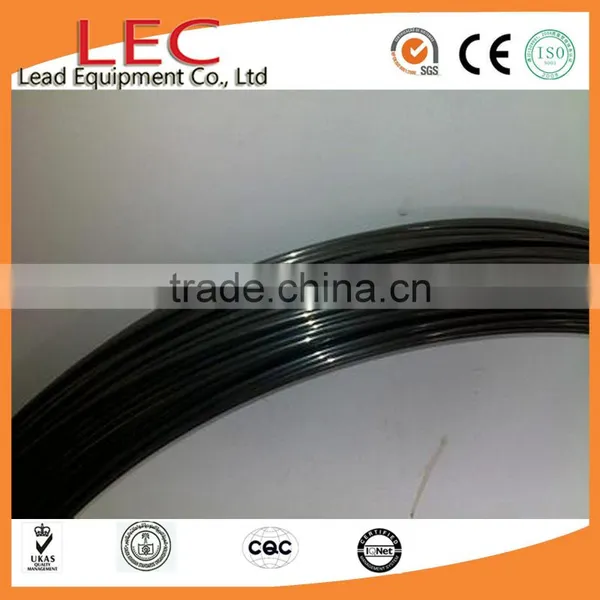

1. We manufacture all kind of pc steel wire

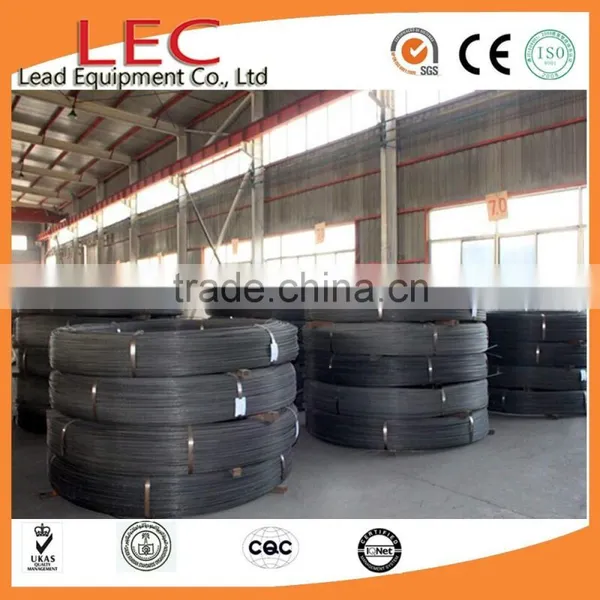

PC steel wire in workshop
We also manufacture anchors system and equipment for pc steel wire
The workers in pc strand and steel wire production workshop
Our certification and application of pc strand
Please let me know your required detail information as followings:
1. What is you required diameter for pc steel wire?
2. What kind of pc steel wire do you need, we have spiral surface, plain surface and intended surface on pc steel wire.
3. Could you tell us your application? so we cann help you in your work.
4. How many quantity do you need and what is your required destination port?
