3300L 0.3Mpa Mechanical Diaphragm Chlorine Dosing Pump

FOB Price

USD $351 - $984 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	LEC
Model Number	HD chlorine dosing pump	Theory	Reciprocating Pump
Structure	Diaphragm Pump	Usage	Water
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, electricity	Pressure	Low Pressure
Application	Metering

Product Description

3300L 0.3Mpa Mechanical Diaphragm Chlorine Dosing Pump

Product Characteristics:

1.Easy installation, simple operation

2.Can transport high viscosity, corrosive, hazardous liquids

3.Measure precisely, can adjust flow infinitely

4.Flow range: 1000L/h-4000L/h

5.Advanced dual-cam, reliable operation

6.Flexible rubber diaphragm with PTFE+ multi-layer composite structure

Application of chlorine dosing pump

Dosing in Printing dyeing, electroplating, chemical, paper industry, sewage treatment

Chlorine Dosing Pump Model Selection

Dear customer, to provide you the suitable metering pump, please tell us the below specifications. Thank you.

1.Transport media (liquid name)

2.flow amount

3.system pressure

dia temperature

5.viscosity of transport media(CP)

6.specific weight

lid content

8.auto-control method

9.external control signal type

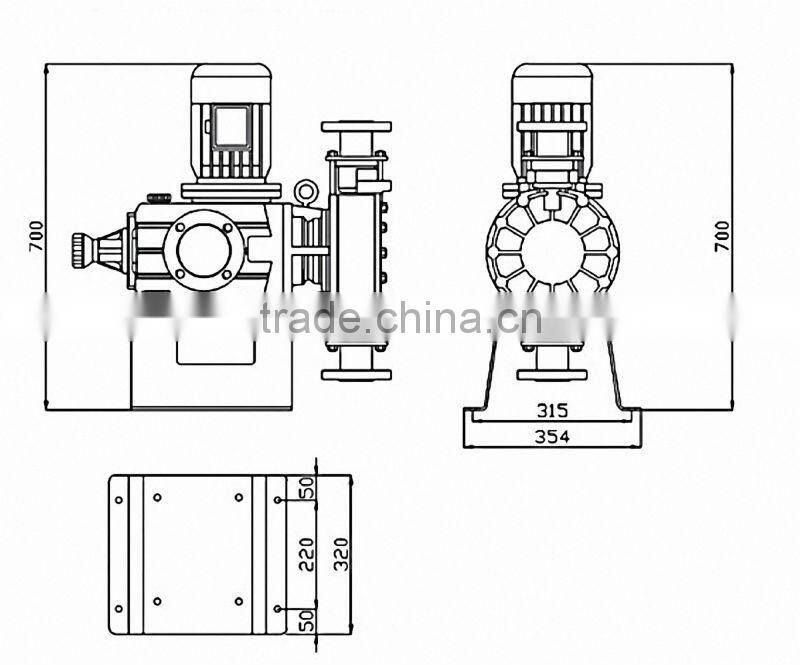

HD Series Mechanical Diaphragm Metering Pump Size

Parameter

Model	Flow(L/h)	Pressure(Mpa)	Frequency(per min)	Power(kw)	Voltage(v)	Diameter(mm)	Connection
HD1000/0.4	1000	0.4	96	0.75	380	DN40	Flange
HD1200/0.4	1200	0.4	96	0.75	380	DN40	Flange
HD1800/0.4	1800	0.4	96	0.75	380	DN40	Flange
HD2000/0.4	2000	0.4	96	1.1	380	DN40	Flange
HD2400/0.4	2400	0.4	96	1.1	380	DN40	Flange
HD2800/0.3	2800	0.3	96	1.1	380	DN40	Flange
HD3300/0.3	3300	0.3	96	1.5	380	DN40	Flange

Liquid Flowing Part

Part Name	Liquid Flowing Part
Pump Head	RPP	PVC	PVDF	SUS304	SUS316L
Diaphragm	PTFE+(Rubber)	PTFE+(Rubber)	PTFE+(Rubber)	PTFE+(Rubber)	PTFE+(Rubber)
Check Valve	RPP	PVC	PVDF	SUS304	SUS316L
Ball Seat	PTFE/PP	PTFE/PVC	PTFE	SUS304	SUS316L
Ball	Ceramics	Ceramics	Ceramics	Ceramics	Ceramics
O-ring	FKM	FKM	PTFE	PTFE	PTFE

Our Certification

Glad to have your inquiry for our pumps, you are welcome to provide information about flow and pressure. Thank you.
