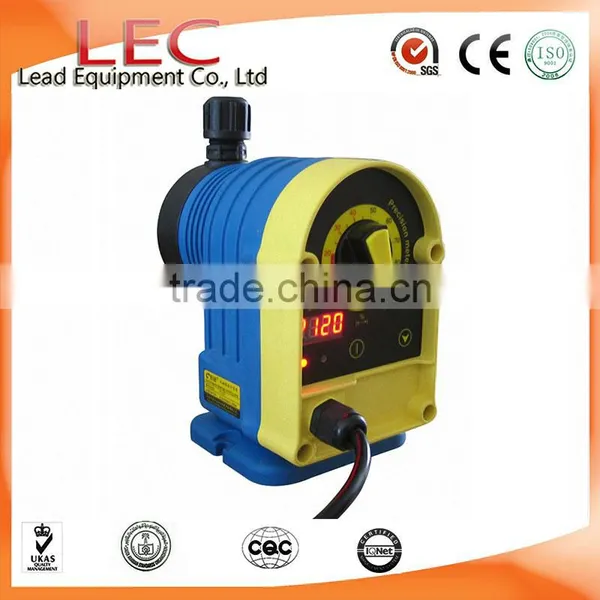

HT Series Solenoid Dosing Pump
Product Application ( Solenoid Dosing Pump)
Presice osig of PAC, polyacrylamide(PAM), bleach chemicals / additives in Sewage treatment works, power plant water treatment, electroplating, circuit boards, paper, swim pool and other industry.
Product Features ( Solenoid Dosing Pump)
1. New design, reasonable structure, beautiful appearance, strudy and durable.
2. Enclosure protection class IP65
3. Programmable high-precision micropocessor control
4. Stoke frequency range(1-200 times/minute).
5. Standard duble ball one-way valve design, higher work efficiency and accuracy.
6. Switch button.
7. Reliable hose interface.
8. External interface IP68.
Parameters ( Solenoid Dosing Pump)
HT manual type: stroke length and frequency is adjustable between 0 and 100%, liquid level switch function is availale.
HT-Z automatic type: except the function of manual type, it can be external controlled by receiving 4-20 ma analogue or pulse signals.

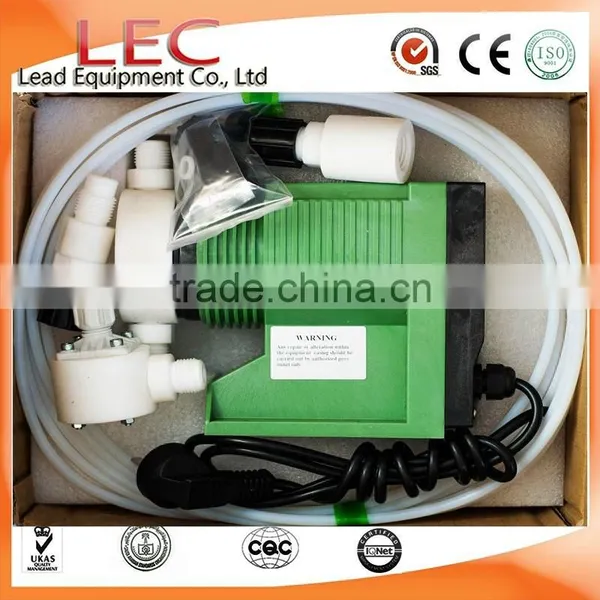

Acessories ( Solenoid Dosing Pump )
1. Foot valve
2. Injection Valve
3. Inlet Pipe
4. Outlet Pipe
Pump Head material ( Solenoid Dosing Pump )
Choose Materials of Pump Parts | |||||
Pump Head | RPP | PVC | PVDF | SUS304 | SUS316 |
Diaphragm | PTFE | PTFE | PTFE | PTFE | PTFE |
Valve Seat | PTFE | PTFE | PTFE | SUS316 | SUS316 |
Valve Ball | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
Inlet Pipe | PVC/PE | PVC/PE | PE/PVDF | PE/PVDF | PE/PVDF |
Outlet Pipe | PE | PE | PE/PVDF | PE/PVDF | PE/PVDF |
RPP: Reinforced Polypropylene | |||||
PVDF: Polyvinylidene Fluoride | |||||
PTFE: Polytetrafluoroethene (Teflon) | |||||
PVC: Polychloroethylene | |||||
SUS304: 304 Stainless Steel | |||||
SUS316: 316 Stainless Steel | |||||
PE: Polyethylene | |||||
Dimensions ( Solenoid Dosing Pump )
Model Selection ( Solenoid Dosing Pump )
1. the transmission medium or liquid name ( water, drug name and so on)
2. the flow (L/H)
3. the systerm pressure (Mpa)
4. the medium temperature
5. the vicosity of the transmission medium(CP)
6. connectors ( screw or flange )
Please tell me the details about the medium and the metering pump you need. Thanks!
For more questions about Solenoid Dosing Pump , please feel free to contact me!
