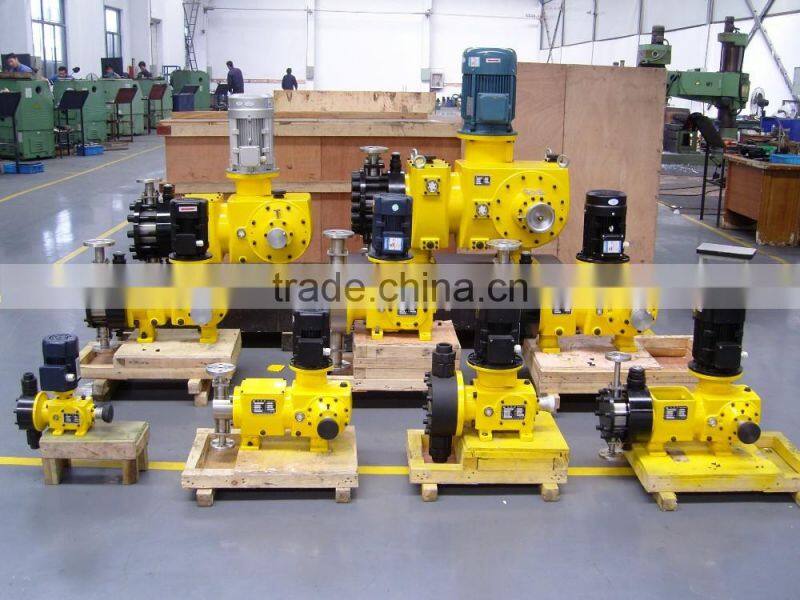

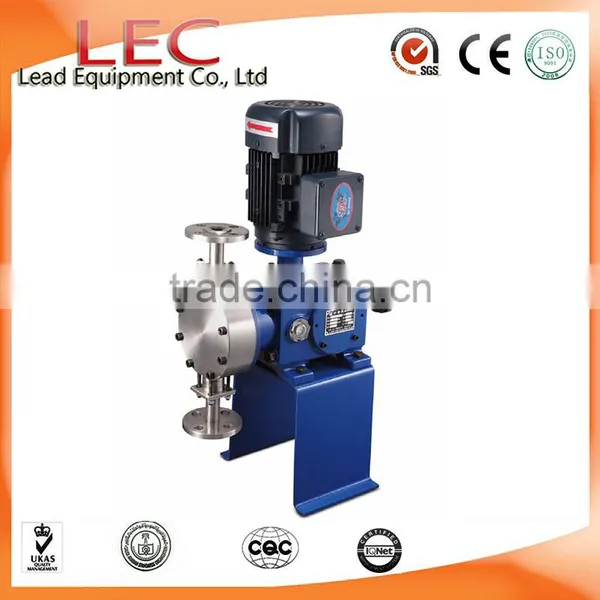

CYJM Series Mechanical Diaphragm Metering Pump
CYJM series metering pump is a special reciprocating displacement pump, of which the discharge can be infinitely regulated between 0 and 100% to feed corrosive and non-corrosive liquid at a certain amount for the purposes of different process flows. It includes piston metering pump, hydraulic diaphragm metering pump. This product complies with GB/T7728-1996 metering pump standard.
CYJM series mechanical diaphragm metering pumps
are extensively used in such industries and sectors as petroleum, chemical, water treatment, environmental protection, food, light industry, paper-making, pharmacy, dyeing and finishing, metallurgy and mining.
Features of diaphragm metering pumps
1.Economy pump with optimal cost performance ratio
2.Simple in construction and easy to repair
3.Driven by eccentric cam gear, compact structure, requiring small room for erection
4.Dip-feed lubrication, requiring periodic replacement of oil only
5.Pushed by double cam ball bearing
6.The discharge is adjustable whether the pump is in operation or not
7.The new Teflon and rubber composite diaphragm is corrosion resistant, has long service life, and is suitable for discharge of various corrosive and hazardous liquid
8.Variety of optional overflowing materials
9.Leak-free, high safety, able to discharge various inflammable, explosive, toxic, radioactive, highly pungent and corrosive liquid
10.High precision one-way non-return valve. Accurate metering, compact conformation, good insulation, long service life, strong interchangeability, low cost, easy installation
Major parameters of diaphragm metering pumps
1.Rated discharge: 4-1800L/h
2.Max. rated pressure: 0.8Mpa
3.Temperature of medium discharge: -30 – 50°C(100°C for stainless steel)
4.Dielectric viscosity:0.3-800mm2/s
5.Metering accuracy:±2%

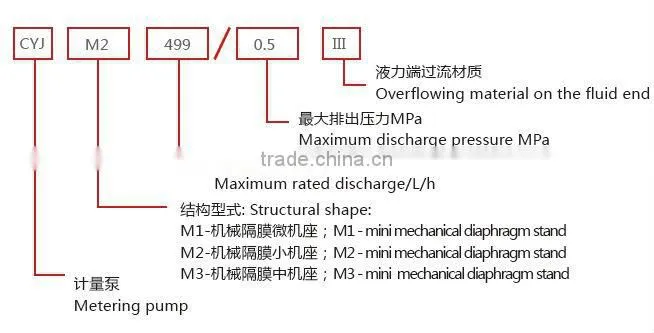

Type and Specification Description of diaphragm metering pumps

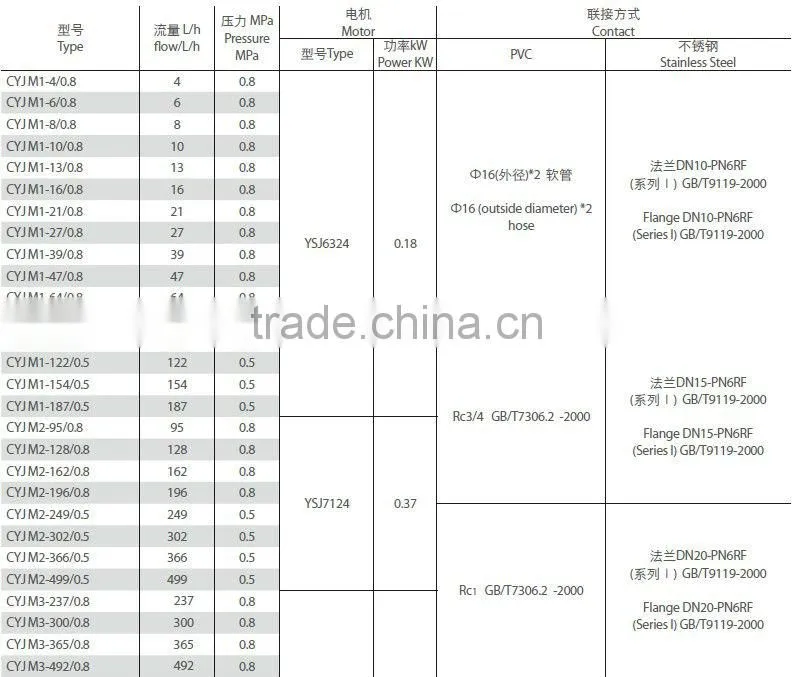

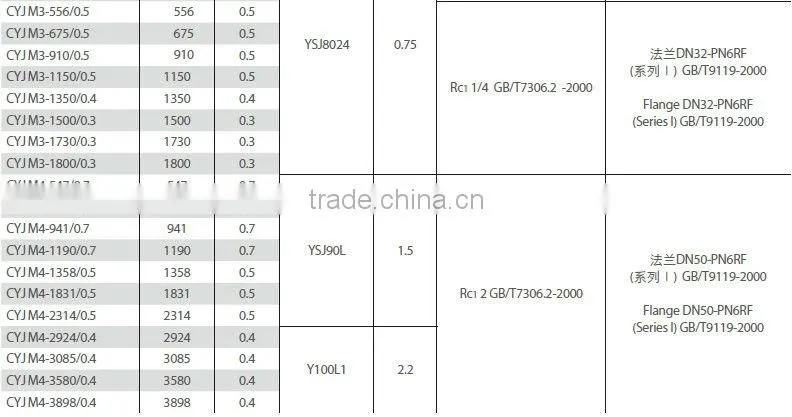

Parameter of diaphragm metering pumps
Installation of diaphragm metering pumps
Installation Dimension of diaphragm metering pumps
Our Certification of diaphragm metering pumps
Glad to have your inquiry for our pumps, you are welcome to provide information about flow, pressure and pumping material. Thank you.
