LPS7/8-15E wet mix spraying plastering concrete pump machine for wall
Brief introduction of spray plastering machine and concrete spray machines
LPS7/8-15E Hydraulic piston mortar pump (mini concrete pump) is a new version machine which is mainly used for conveying concrete mortar, slurry mortar or fine stone aggregate concrete in high-rise buildings.
This machine can also be used for wet concrete spraying together with compressed air system and concrete accelerator system.
Specification of spray plastering machine and concrete spray machines
| Productivity | 0--7m 3 /h |
| Max. conveying distance |
300m(Horizontal) 120m(Vertical) |
| Max. aggregate size | 15mm |
| Concrete slump | 8~20cm |
| Fineness modulus of aggregate. | ≥2.5 |
| Hose diameter | 51 (2″)mm |
| Pump outlet pressure | 8Mpa |
| Main electric motor power | 15kW |
| Overall dimension(Tyre type)(L×W×H) | 2150×850×1248 |
| Weight | 920Kg |
Features of spray plastering machine and concrete spray machines
1. Hydraulic double cylinder piston reciprocating convey
2. Straight pipe distribution valve with small swinging resistance can switch quickly. It can spray wet concrete without interruption.
3. The output is variable from 0 to 7m3/h as per need.
4. It can use as a wet concrete spraying machine. The air switch remotely controls the main machine and dosing pump.
5.Independent spring-loaded vibration plug can filter large size aggregate.
6. LCD screen on the control panel can show pumping frequency, reversing time, voltage, cumulative working time etc.
7.It can be controlled through local control or wired remote control.
8.Air cooling system can cool the hydraulic oil effectively to make sure oil temperature below 55ºC.
9.Automatic lubrication system can lubricate the concrete cylinder, mixer shaft and straight pipe valve rotation axis.

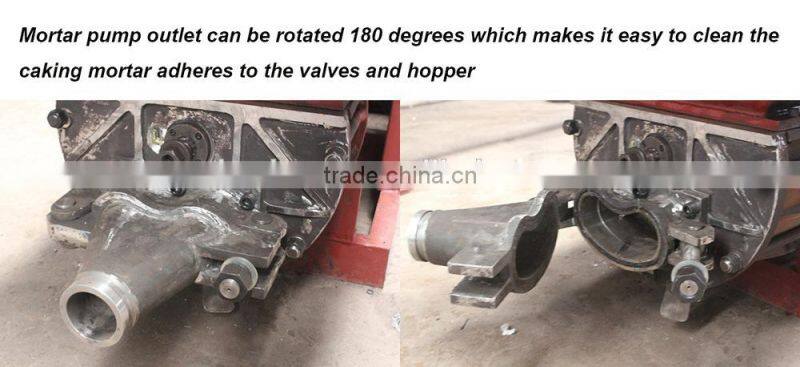

10.Mortar pump outlet can be rotated 180 degrees which makes it easy to clean the caking mortar adheres to the valves and hopper.
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD34000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Package:
Our Advantages and services for spray plastering machine
Factory directly supply.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability,and high work efficiency
Best manufacturer in China.
Good after-sales service
Spare Parts Supply Timely
Factory:
When ready mixed mortar is in the site, following mortar spraying machine can also be choosed.
LMP50/40 mechanical transmission single piston mortar pump
LMP40 10-H with frequency converter peristaltic type mortar spraying pump
Platering Machine Automatic Wall Plastering Equipment
C: Screw mortar spraying pump (Advantage is continuous spraying, but wearing parts cost much.)
D: Piston mortar spraying pump (Spraying is not continuous)
E: Extrusion type mortar spraying pump (Spraying is not continuous. But it is very easy to clean.)
When mixing mortar in the first floor and spray in high floors, high quality mortar spray machine can be choosed
More choose about mortar pump
For more information about the spray plastering machine and concrete spray machines, please feel free to contact us.
