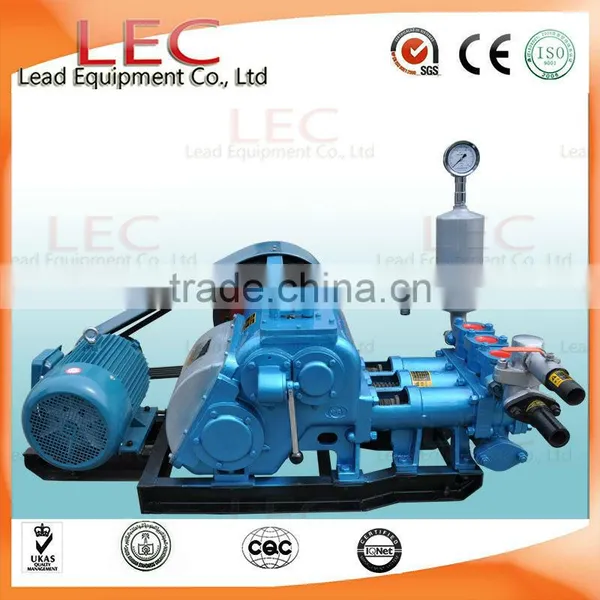

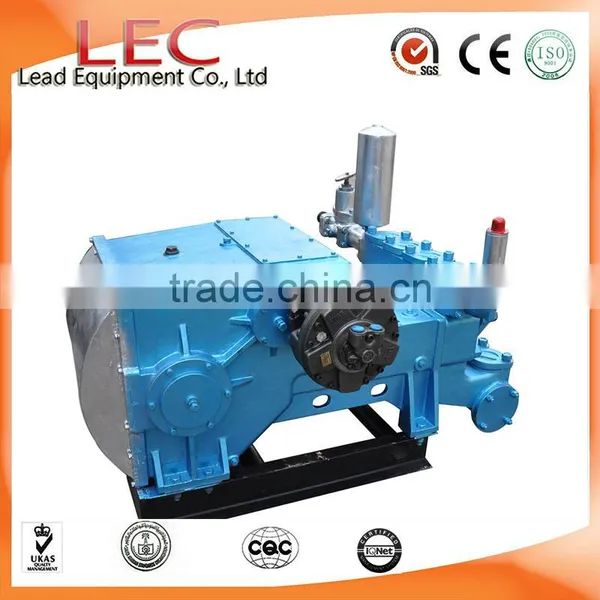

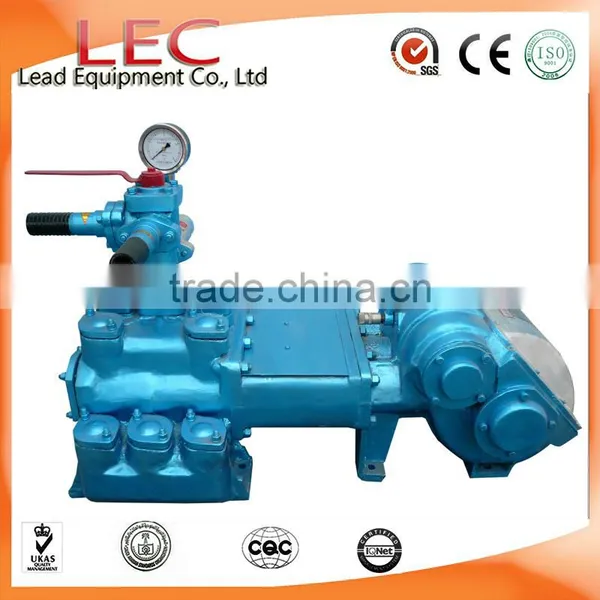

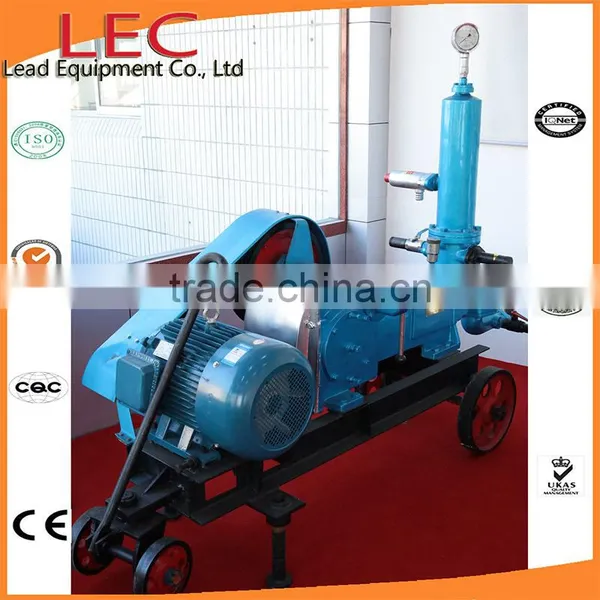

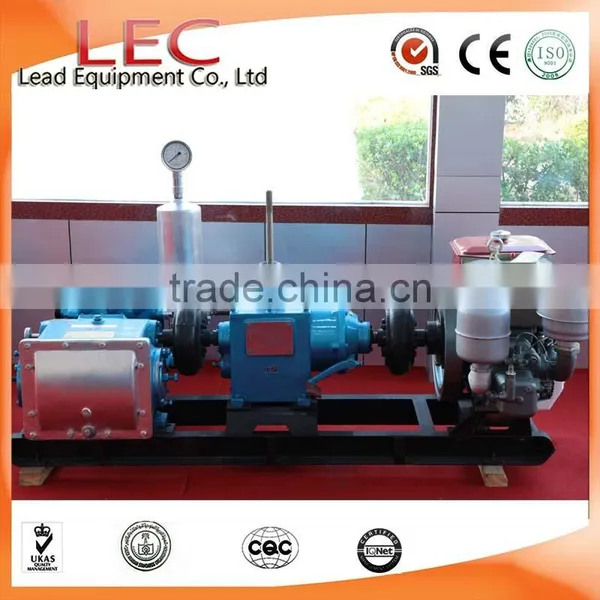

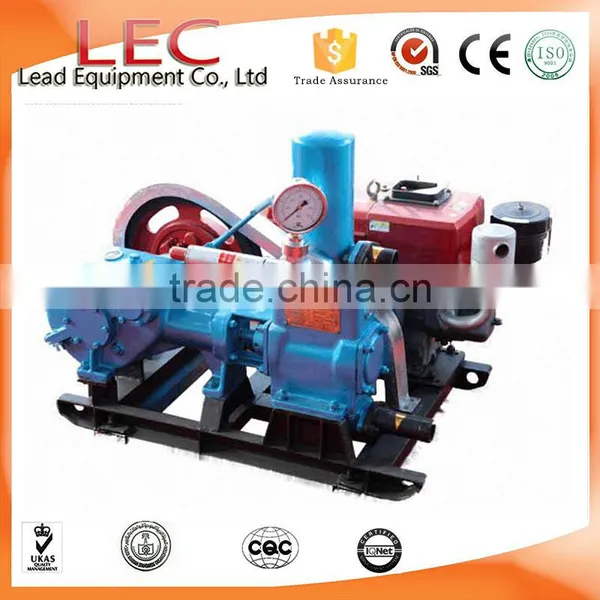

BW250 250L hydraulic motor piston mud pump for drilling rig
BW250 slurry pump is horizontal ,tri-cylinder ,recipocating triplex-acting piston pump . Can be transformed into different pressure and flow .Its max pressure can arrive at 7 Mpa .
Type | 250L Output Horizontal Triplex Reciprocating piston mud pump for drilling rig | |||
Stroke | 100mm | |||
Bore | 80 mm | |||
Handle position | 1 | 2 | 3 | 4 |
Pump Speed(s.pm) | 200 | 116 | 72 | 42 |
Output volume(l.pm) | 250 | 145 | 90 | 52 |
Discharge pressure(Mpa) | 2.5 | 4.5 | 6.0 | 6.0 |
Volumetric efficiency | 85% | |||
Total efficiency | 72% | |||
input power | 15KW | |||
Multiple grooved pulley D.P. | B*410mm | |||
Input speed of pump (rpm) | 500r/min | |||
Max. suction head | 2.5m | |||
Inside diameter of suction hose | 76mm | |||
Inside diameter of discharge | 51mm | |||
Weight | 500KG | |||
Overall dimensions(L*W*H) | 1000*1550*1200mm | |||

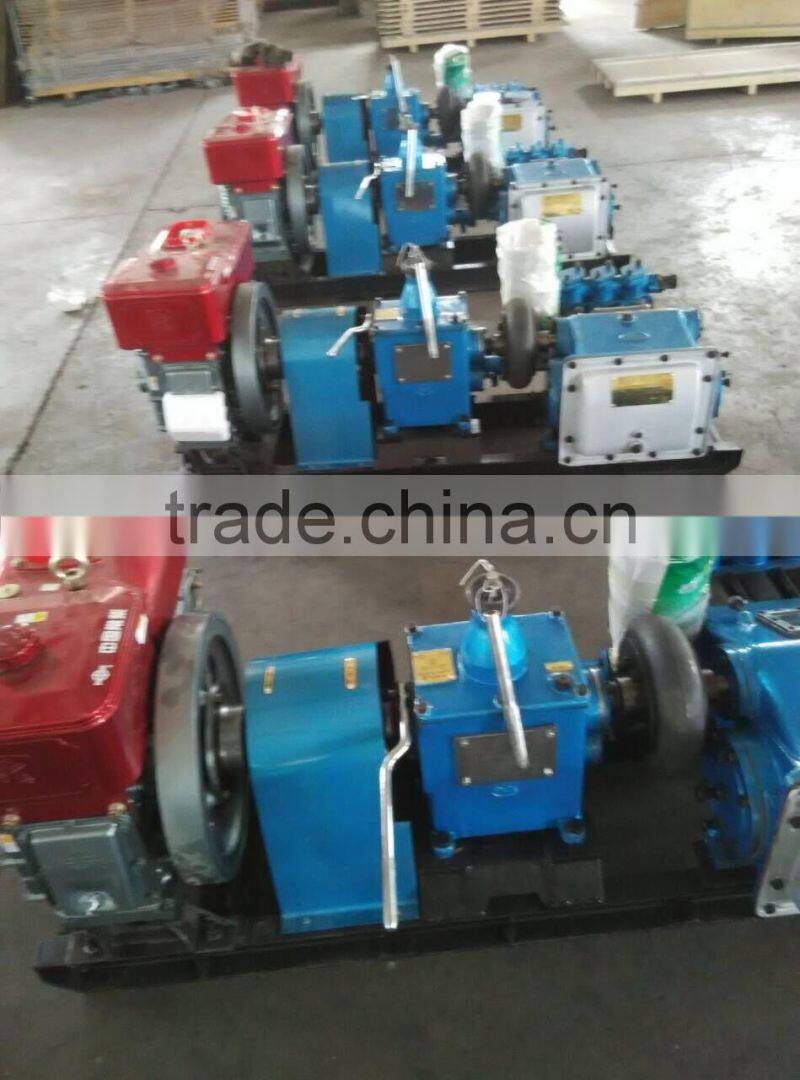

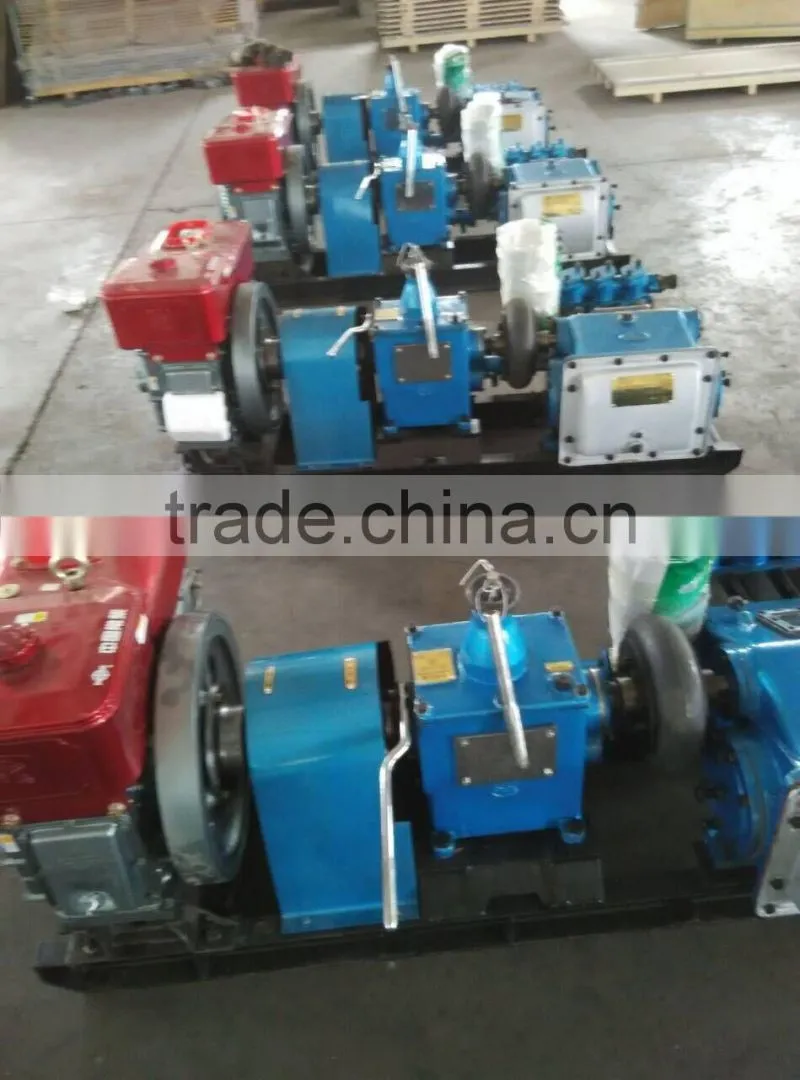

Packaging of mud pump for drilling rig
Factory directly supply for mud pump for drilling rig
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability,and high work efficiency
Best manufacturer in China.
Good after-sales service
Spare Parts Supply Timely
During-sale service mud pump for drilling rig :
1. Acceptance of the product
2. Assist client product construction scheme
After sale service for drill rig mud pump
1. Spare parts will be delivered as you need.
2. Engineers will go to clients’ site for guiding the installation and test-running;
3. Warranty period: 12 months since the installation and commissioning;
our factory and research ( mud pump for drilling rig )
mud pump for drilling rig in application
