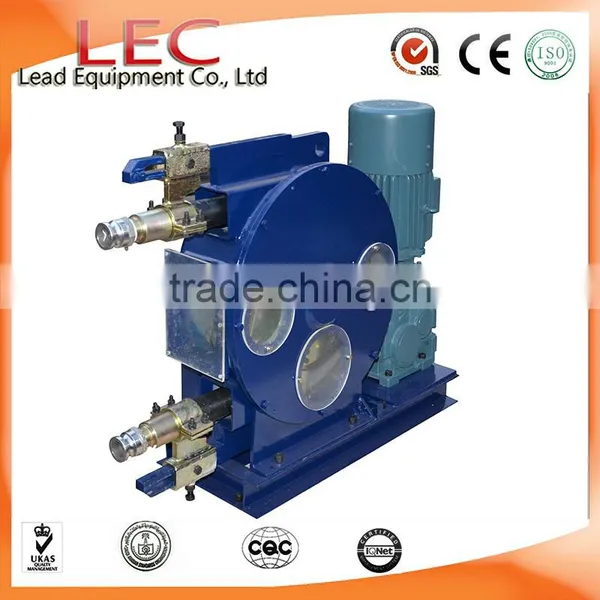

Widely choice for output and hose construction machine industrial peristaltic pump head
LH series industrial peristaltic pump head (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.
LH series industrial peristaltic pump head are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.
Widely choice for output and hose construction machine industrial peristaltic pump head advantages:
No seals
No valves
Self -priming
Only tube to replace
Dry –running without damage
Reversible
No contact between product and mechanical parts
Able to pump products with solid parts inside
Easy maintenance, low-cost, short down time

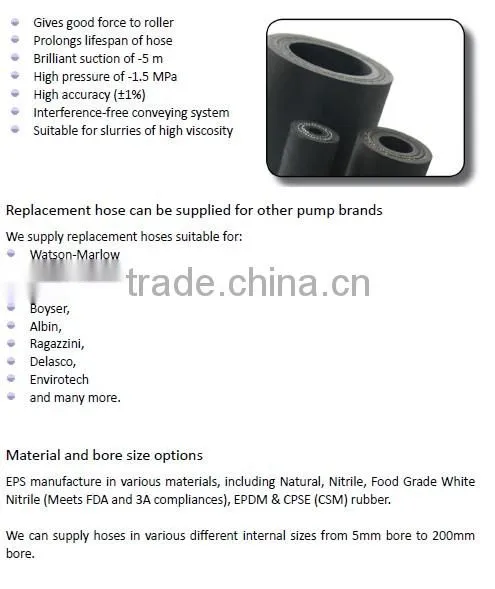

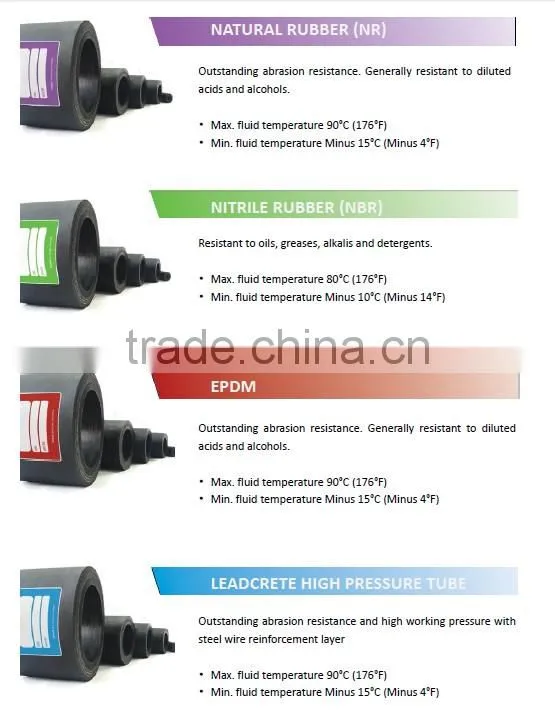

Leadcrete Tube
High quality precision made hose pump tube, using the very highest quality compounded rubber materials on the market, re-enforce with multi-layers of braided nylon & a manufacturing process that ensures precise and constant dimensional tolerances at every point to the entire length of the hose.
This high level of attention provides a finished hose product that delivers very high life & outstanding performance.
LH hose pump technical data:
Pump mode |
Output |
Pressure |
Rev. |
Max. |
Max. |
Motor Power |
LH10 |
60 |
0.6 |
45 |
2 |
2 |
0.37 |
LH10B |
100 |
0.6 |
80 |
2 |
2 |
0.37 |
LH15 |
210 |
0.6 |
45 |
2 |
2 |
0.55 |
LH15B |
300 |
0.6 |
75 |
2 |
2 |
0.55 |
LH25 |
800 |
1.5 |
50 |
3 |
3 |
1.1 |
LH25B |
1300 |
1.5 |
80 |
3 |
3 |
1.5 |
LH32 |
1300 |
1.5 |
50 |
3 |
4 |
2.2 |
LH32B |
1800 |
1.5 |
75 |
3 |
4 |
2.2 |
LH38 |
2000 |
1.5 |
40 |
5 |
4 |
2.2 |
LH38B |
2700 |
1.5 |
55 |
5 |
4 |
3.0 |
LH38C |
3500 |
1.5 |
70 |
5 |
4 |
4.0 |
LH50-558 |
4200 |
1.5 |
35 |
6 |
5 |
4.0 |
LH50-558B |
5400 |
1.5 |
45 |
6 |
5 |
5.5 |
LH50-680 |
6300 |
1.5 |
35 |
6 |
5 |
7.5 |
LH50-680B |
8000 |
1.5 |
45 |
6 |
5 |
7.5 |
LH65-680 |
9200 |
1.2 |
40 |
8 |
5 |
7.5 |
LH65-680B |
12000 |
1.5 |
45 |
8 |
5 |
11.0 |
LH65-770 |
13500 |
1.2 |
45 |
8 |
5 |
11.0 |
LH65-770B |
16500 |
1.0 |
55 |
8 |
5 |
11.0 |
LH76-770 |
18000 |
1.0 |
45 |
10 |
5 |
11.0 |
Application
LEC industrial peristaltic pumps can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It’s perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).
LCP20H-E hose type concrete pump video application:
Package of peristaltic pump head:
Why choose us ?
1. We are China's leading peristaltic pump manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certification of our company:
FAQ:
1. Q: Which model should we choose?
A: Before suitable model recommended, please tell us some information: application, material you process, output and pressure you want.
2. Q: Can we have customized pump?
A: You can choose the gearbox type, instalation way, squeeze hose type, drive mode type.
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
