Home > Products > Environmental Protection Equipment > PB series Grass seed planting machine with Chinese manufacture hydroseeder

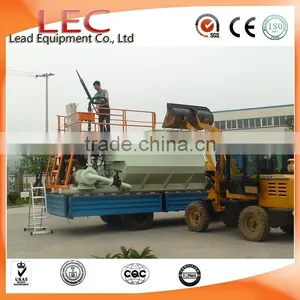

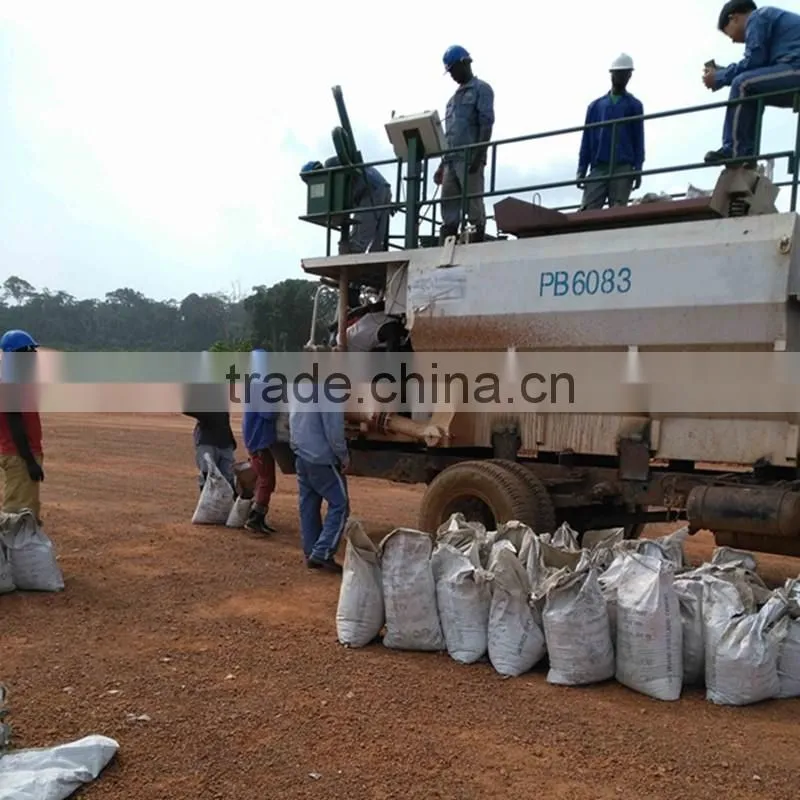

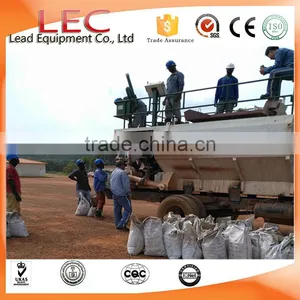

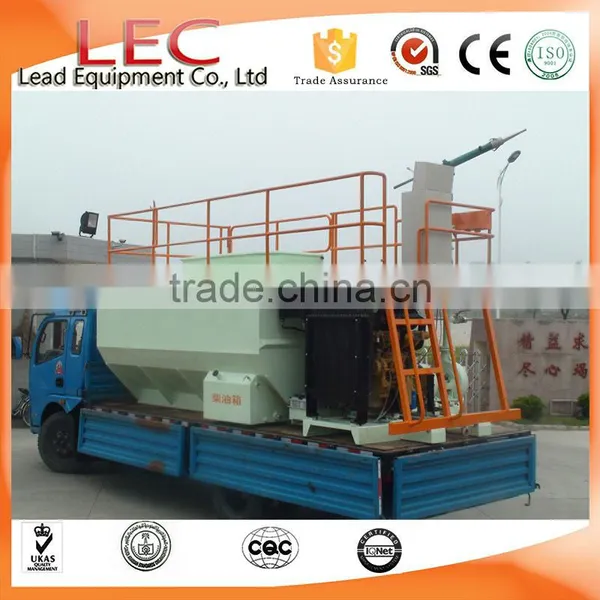

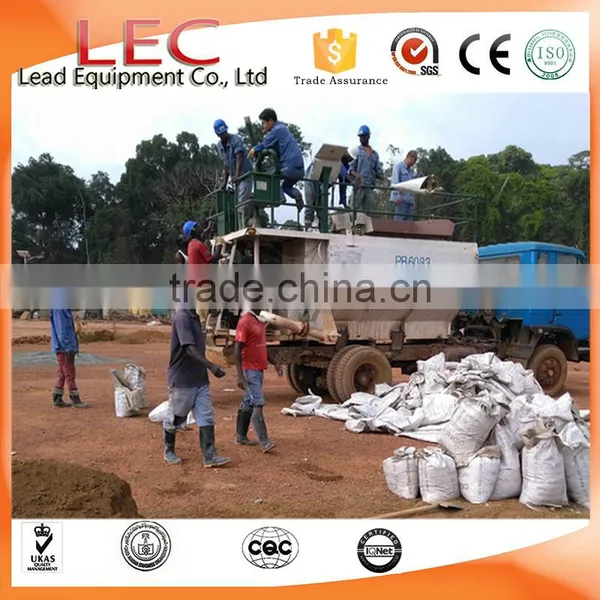

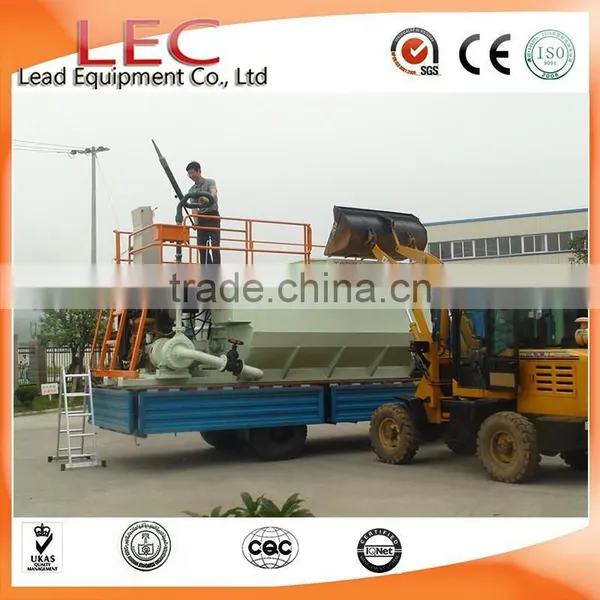

PB series Grass seed planting machine with Chinese manufacture hydroseeder
- 500 Set / Sets per Month
- Shanghai or as your request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
PB series High efficiency small hydroseeder spray grass seed equipment
-
PLC hydraulic oil hydraulic filter press machine
-
Small Multi-Layer stainless steel wine electroplating filter press
-
Good Performance High Precision Filter Press/filtro prensa/Solid and Liquid Separation Machine
-
Chamber Hydraulic Membrane Filter Press
-
slaughter house sludge dewatering filter press equipment
Product Details
| Place of Origin | Henan, China | Brand Name | Leadcrete | |
| Model Number | PB series hydroseeder |
Product Description
PB series Grass seed planting machine with Chinese manufacture hydroseeder
Spray seeding is more and more applied in road greening. The application of seeding spraying technology in vegetation restoration and slope protection project.
Feature of Chinese manufacture hydroseeder machine
| 1. The material of main structure is made of high quality structural steel. No matter how worse the conditions are, it ensure seeder sturdy and solid. And it has reasonable, generous appearance. Painted with imported painting to guarantee of three-year no fading. |
| 2. Advanced technology, it even works for mud materials which have poor mobility, no blocking, and no stopping, well adaptation of various materials, big output pressure. |
| 3. Two mixing models, blades mixing and circular spray, are powerful enough to ensure the spraying mixture in the planting process is in fully suspended and fully mixed stated, evenly emitting the mixture of raw materials at one time. |
4.It has strong power, the maximum head can be above 60m, and be equipped with many types of spraying guns, which extend the maximum operation scope from 200m to 300m; fan-shaped spray nozzle or mist spraying is more suitable for colse-distance planting to meet various requirements. |
| 5.This machine has wide usage, not only can be applied in spraying planting for rice, grass, tress, flowers, seeds, and other crops, but also in irrigation, fertilize, pesticide spraying and other daily care, soil improvement work. This machine can also mix different materials like seeds, fertilizer, soil conditioner, seed adhesives, moisturizer, straw, fiber covering materials, yellow soil, red soil, sandy soil and clay, evenly emitting slurry materials with big proportion, high and super concentration . |
6.Our machine is a soil spraying seeder, but it can also use as a hydroseeder. |
Technical Data of Chinese manufacture hydroseeder machine:
Model | PB6083 | PB8083 |
Diese engine | LR4A3Z | LR4A3Z |
Power | 83kw | 83kw |
Tank capacity | 6m3 | 8m3 |
Output | 1350L/min | |
Output pressure | 8kgf/cm2 | |
Max.Solid Content | Volume ratio 30%, weight ratio 60% | |
Max.aggregate | 20mm | |
Mixing mode | Hydraulic infinitely variable, blades mixing and circular jet mixing | |
Rotating speed of mixer shaft | 0-110rpm | |
Max. horizontal conveying distance | 38-45m with gun 100-120m with hose | |
Max. vertical conveying distance | 40m with gun 80m with hose | |
Spraying guns type | Fixed standing gun and pipe gun | |
Height of fence | 800mm | |
Net weight | 2650kg | 3200kg |
Dimension | 4600*2200*2400mm | 5500*2200*2500mm |
Date sheet of diesel engine:
Model | LR4A3Z |
Type of diesel engine | Turbo diesel engine, water-cool |
Cylinder No. | 4 pieces |
Cylinder dia.×Piston stroke(mm) | 105×125 |
Capacity(L) | 4.33 |
Rated power/rotating speed(kw/r/min) | 83/2400 |
Max. torque point rotating speed(r/min) | 1600-1800 |
Torque reserve | 22-25% |
Fuel consumption rate of Declared working condition(g/kw·h) | ≤245 |
Fuel consumption rate of Max.torque working condition(g/kw·h) | ≤242 |
Oil consumption rate of Declared working condition (g/kw·h) | ≤1.63 |
Idle speed(r/min) | 1000±30 |
Cold starting performance | -10°Ccan start easily(without any assist) |
High altitude(m) | ≤2200 |
Ambient temperature of diesel engine working | -10°C~40°C |
Direction of turning of diesel engine | Anticlockwise(facing power output side) |
Net weight(kg) | 430 |
Engine standard thermal discharge(KJ/s)/ water tank area(m²) | 78/≥35 |
During-sale service:
1. Acceptance of the product
2. Assist client product construction scheme
After sale service
1. Spare parts will be delivered as you need.
2. Engineers will go to clients’ site for guiding the installation and test-running;
3. Warranty period: 12 months since the installation and commissioning;
OEM Serviceis avaiable. We can change the color, engineer power ,etc for you.
Q: What is the guarantee period of hydroseeding equipment?
A: It is one year count from one month after shipping date except wearing parts. We will send some wearing parts of machine and diesel engine when delivery.
Q: What is the diesel engine brand of hydroseeding machine?
A: Usually we adopt Dongfanghong or Huangfeng diesel which is famous in China, we also can supply Cummins diesel and Deutz diesel.
Q: What is the ratio of soil, grass seed, fertilizer, etc?
A: The ratio is depends on the soil locally. So it is better for you to take some photo of your soil, and tell us the slope angle, height, soil condition, etc. then we will recommend you a suitable ratio.
Q: Can you supply or introduce to me grass seed supplier?
A: No problem, our factory is manufacturing and selling hydro seeder many years in China, there are good cooperator of grass seed supplier.
Q: What is the horizontal and vertical working distance of hydroseeding machine?
A: Our hydroseeding equipment max. horizontal spraying distance is 38-45m with gun, max. vertical spraying distance is 40m with gun; max. horizontal conveying distance is 100-120m with hose, max. vertical conveying distance is 80m with hose.
Q: If your projects are slope greening, what is the slope ratio?
A: For our PB series hydro seeder, its maximum of the slope angle is 60°, if it is larger than 60degree, it is better to choose our PB-15SR and PB-25SR series thicker hydro seeder.
Q: Which project will you do with hydro seeder?
A: For slope greening, golf course, lawn or other landscape projects.
Any color, any logo acceptable, please leave an inquiry to know more details about price, packing, shipping and discount.
