CE Certification Concrete Pumping Placing Boom for Sale
- 150 Set / Sets per Month
- Qingdao Port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | LEC |
Model Number: | LHB-15 | Power(W): | 4000W | Dimension(L*W*H): | 8.9*5*2.65m |
Weight: | 5430kg, 3230kg | Certification: | ISO/CE | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

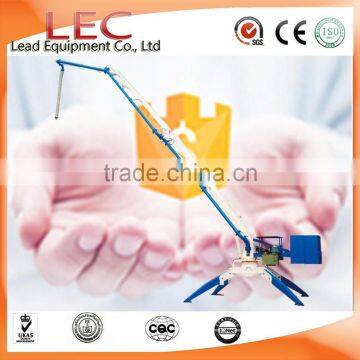

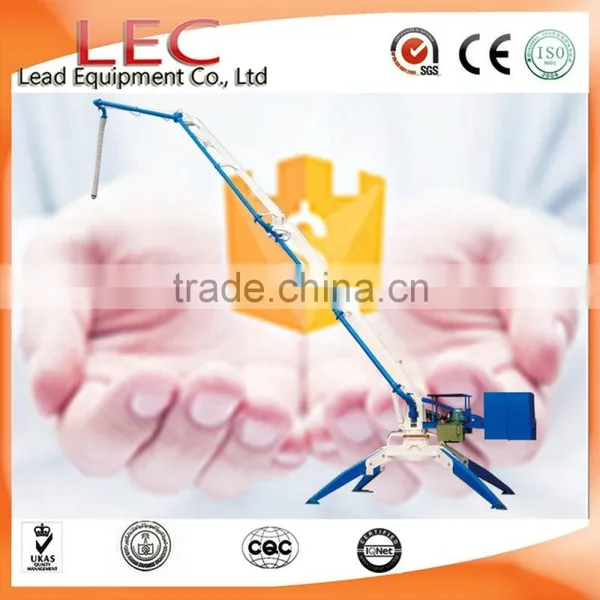

CE Certification Concrete Pumping Placing Boom for Sale
Product Discription:
1. LHB-13,LHB-15m, LHB-18m Circle Swinging Concrete Placing Boom , is designed by ourselves company and matching with concrete pump truck and trailer concrete pump equipment. It mainly used for construction of concrete poured on the site, reasonable design, flexible rotation, reliable, concrete pipeline made up from standard pipe diameter and pipe joint, convenient to connect with pump pipe.
2.The movement of boom and its rotating are driven by hydraulic ; it adopts cable control and button operation with the characteristics of stable performance , easy to use , safe and reliable.
3. It has the strong adaptability to meet all kinds of complicated construction environment.
Technical Data:
Specification | LHB-13 | LHB-15 | LHB-17 |

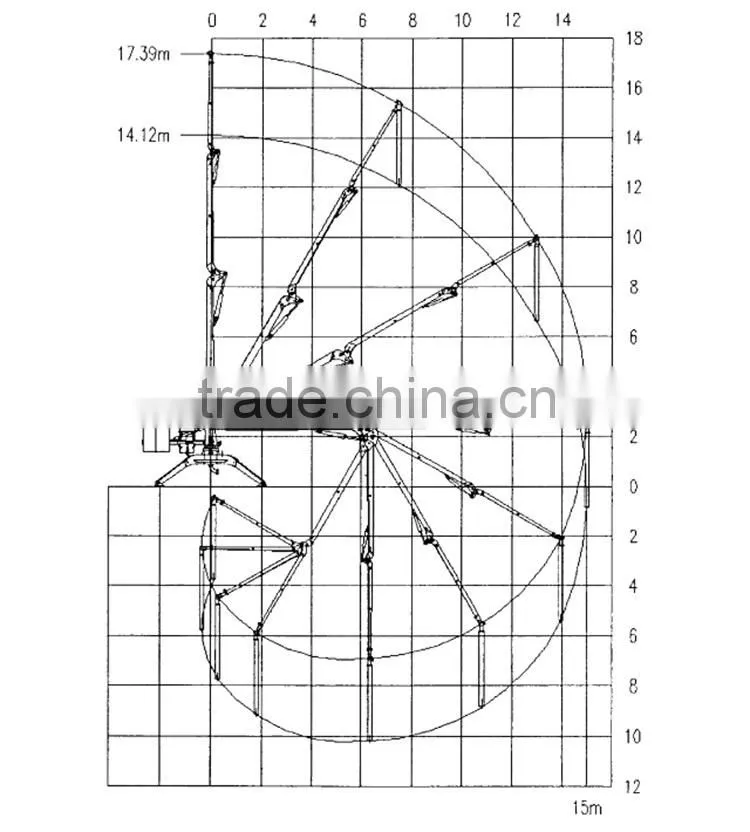

Placing radius | 13m | 15m | 17m |
Engine power | 4kW | 4kW | 5.5KW |
System Pressure | 20Mpa | 20MPa | 20Mpa |
Elevation angle | -2~84.4° | 0°~90 | -4°~90° |
Rotation | 360° | 360° | 360° |
Rotation Speed | 0.46r/min | 0.2~0.3r/min | 0.32r/min |
Pipeline diameter | φ125 | φ125 | Φ125mm |
Weight | 2700kg | 3230kg | 5000kg |
Total Weight | 4300kg | 5430kg | 7040kg |
Dimension | 6.5*3.3*2.6m | 8.9*5*2.65m | 10*4.7*3.3m |
Supporting leg dimension | 3150*3150mm | 4000*4000mm | 4000*4000mm |
Working principle
The front of feed bend pipe of concrete placing boom is concected to the end of the matching pipe of the concrete pump, forming a complete conveying pipeline on working. The concrete in the hopper, under the working pressure of the concrete pump, via concrete conveying pipeline and the main beam and the second section of the tube rotating, continuously conveying concrete within the range of the construction site.
Other model of Concrete Placing Boom and Parts :
28m Mobile Hydraulic Concrete Placing Boom :
Manual Concrete Placing Boom :
All in nude package.
FAQ:
Please inform us more detail information as followings,so we can recommend suitable type for you
1. What project will you do with the concrete placing boom?
2. What is the placing radius of concrete placing boom ?
