Manufacturer Hydraulic Concrete Spreader Machine for Building Equipment
- 150 Set / Sets per Month
- Shanghai Tianjin Qingdao or Customized Port
- T/T D/P D/A Credit Card PayPal
- outdoor Medium High pressure Portable abrasive waterjet reinforced concrete cutting machine
- 52 Meter Concrete Pump Truck
- Sany concrete pump hose reel 60031864
- Zhongyi motor concrete pump parts
- 37 Meter Concrete Pump Truck
- diesel mini concrete pump for sale Aggregate size 30mm post tension grout mortar cement pump
Product Details
Condition: | New | Power Type: | Electric | Place of Origin: | Henan, China |
Brand Name: | LEC | Model Number: | LHB-15 | Power(W): | 4000W |
Weight: | 5430KG | Certification: | ISO9001/CE | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Manufacturer Hydraulic Concrete Spreader Machine for Building Equipment
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD13000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Product Discription:

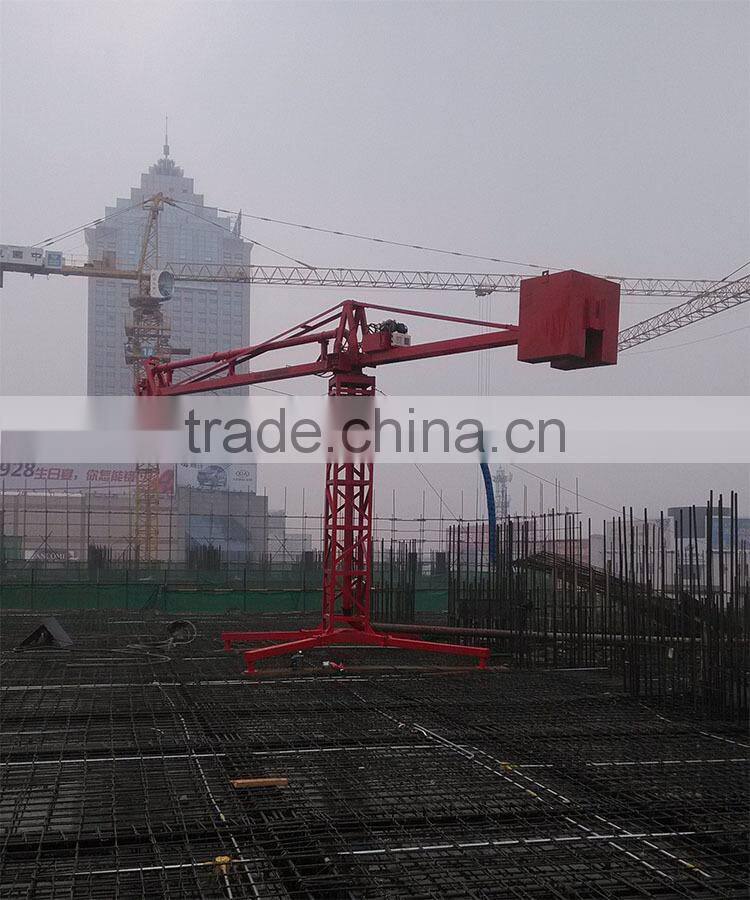

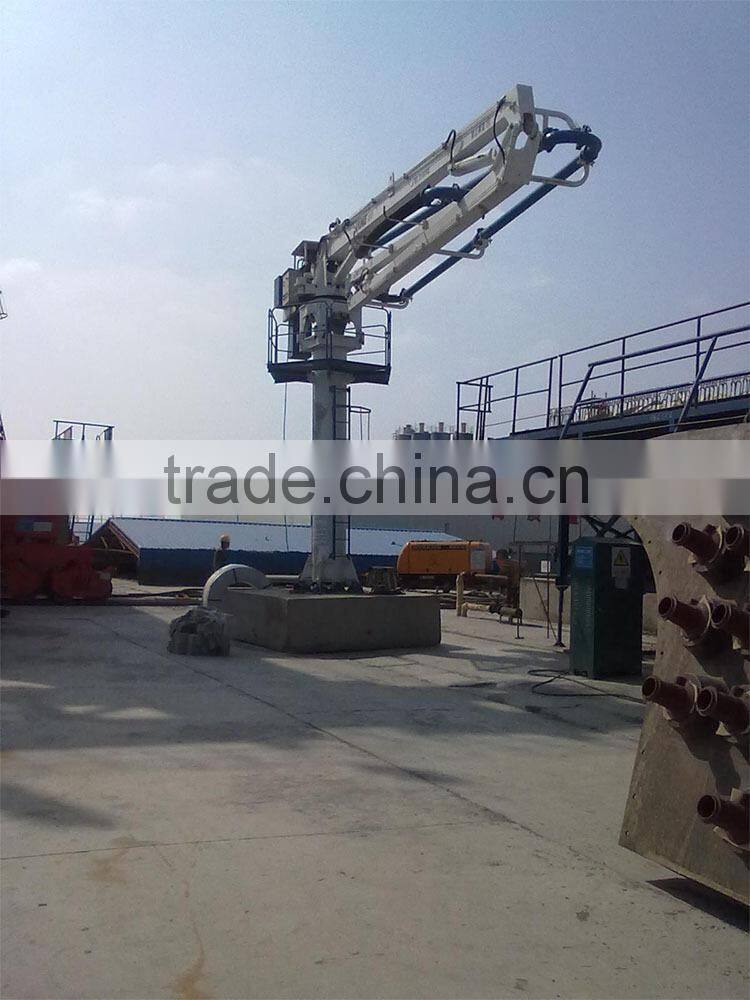

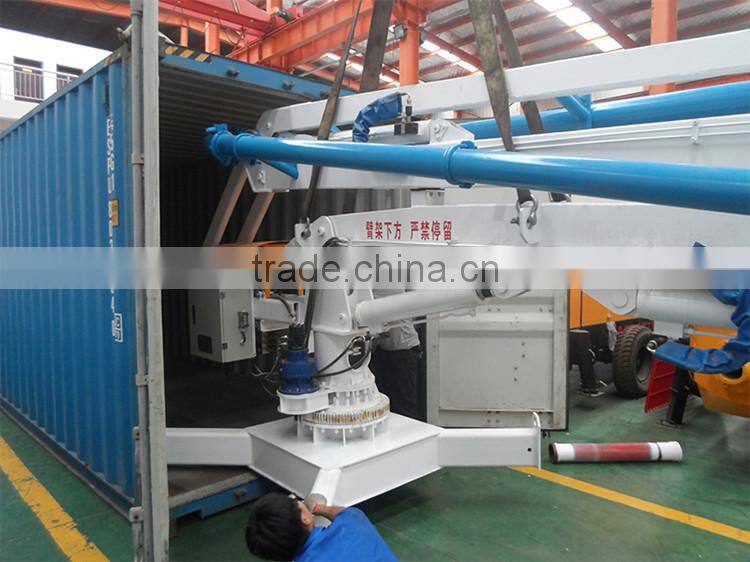

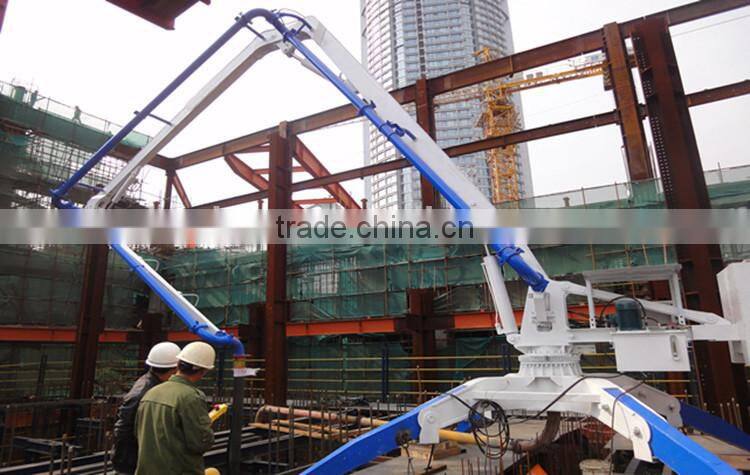

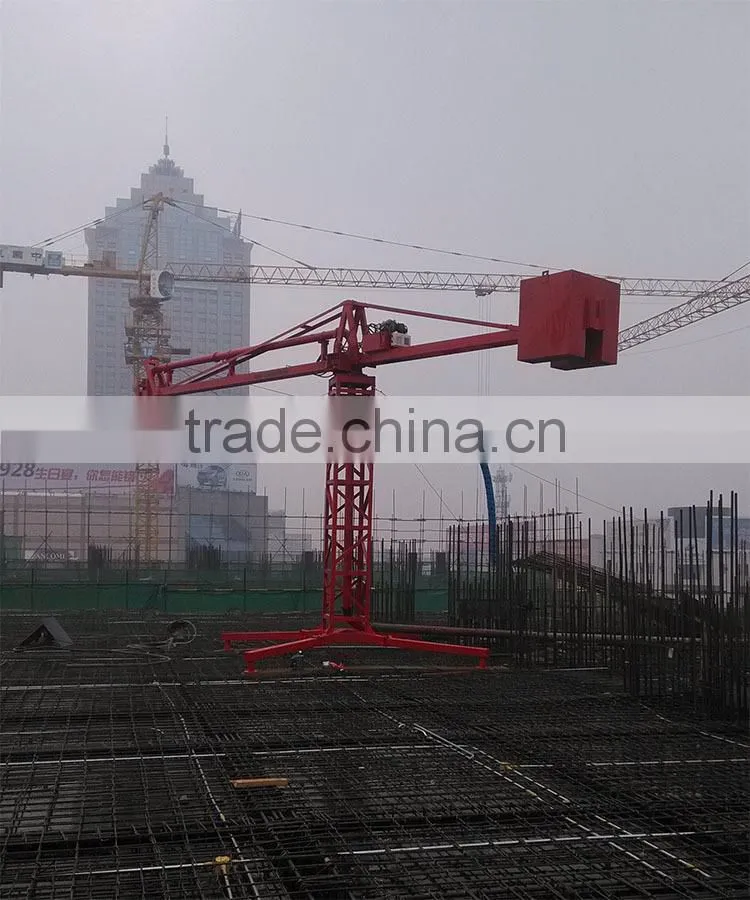

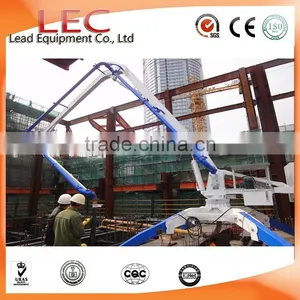

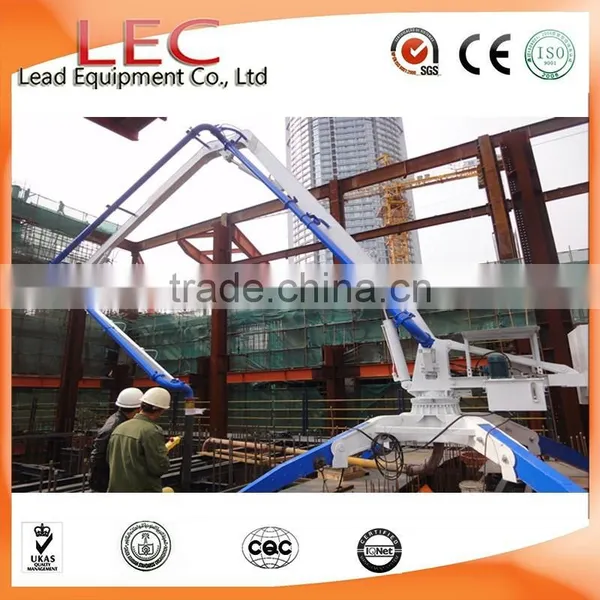

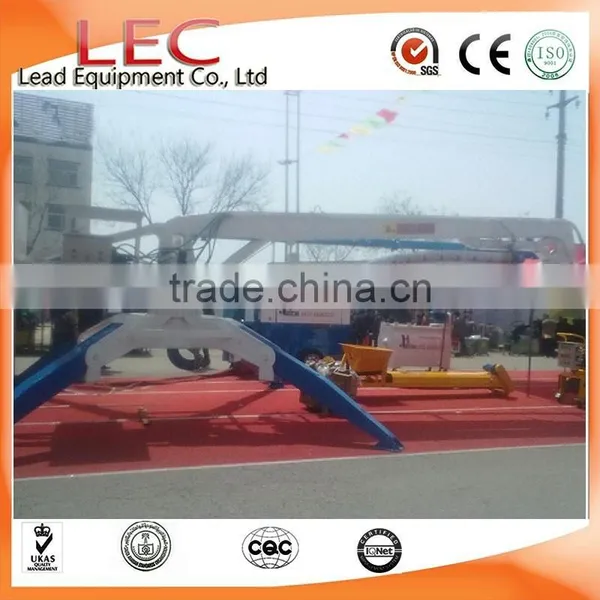

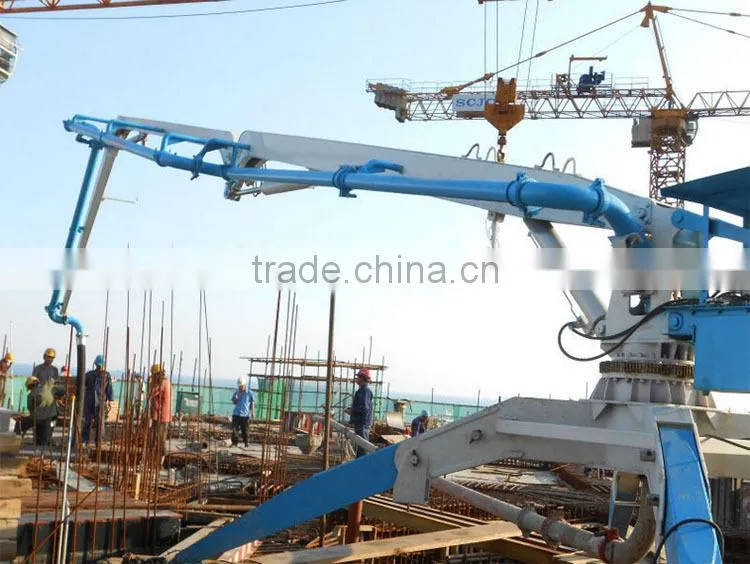

1. In order to extend the placing range of concrete pump and enhance the mechanization of pumping construction ,our company has researched and developed the new products a series of concrete placing booms:15m,18m.
2. Concrete placing boom is the assorted equipment for concrete pump .Its application extends the delivery range of concrete , efficiently solves the problem of cement grouting and placing of walls and plays an important role of enhancing construction efficiency and reducing the labor intensity.
3. This series of concrete placing booms have reasonable design and reliable structure. The placing structure adopts 360 ° rotary arm support .The machine is operated by hands and rotate flexibly. So it is highly efficient, reliable and economic.
4. It is used for water conservancy ,electricity,metallurgy,chemical engineering ,transportation etc.
Technical Data:
Specification | LHB-13 | LHB-15 | LHB-18 |
Placing radius |
13m
| 15m | 18m |
Engine power |
4kW
| 4kW | 5.5KW |
System Pressure |
20Mpa
| 20MPa | 20Mpa |
Elevation angle | -2~84.4° | 0°~90 | -4°~90° |
Rotation |
360°
|
360°
| 360° |
Rotation Speed |
0.46r/min
| 0.2~0.3r/min | 0.32r/min |
Pipeline diameter | φ125 | φ125 | Φ125mm |
Weight | 2700kg | 3230kg | 5000kg |
Total Weight | 4300kg | 5430kg | 7040kg |
Dimension | 6.5*3.3*2.6m | 8.9*5*2.65m | 10*4.7*3.3m |
Supporting leg dimension | 3150*3150mm | 4000*4000mm | 4000*4000mm |

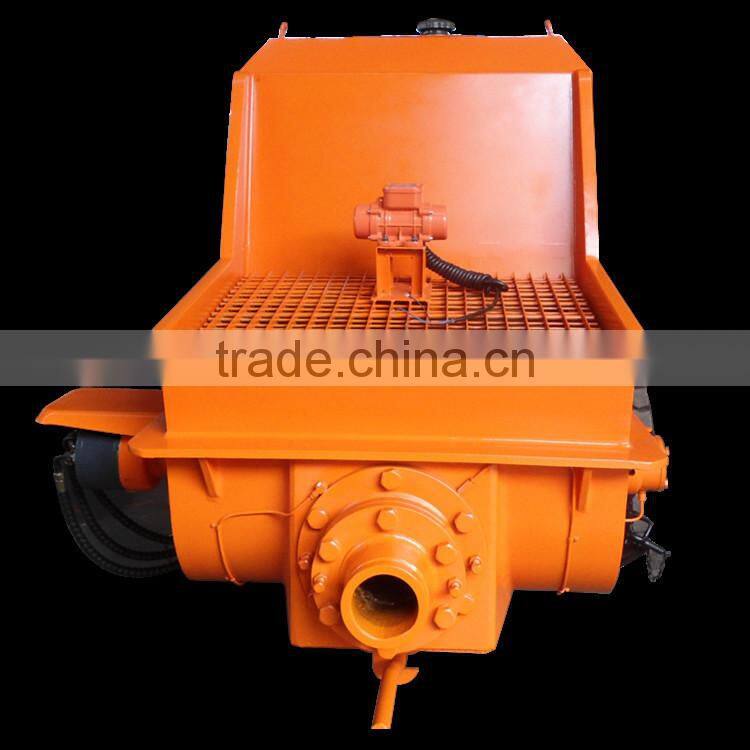

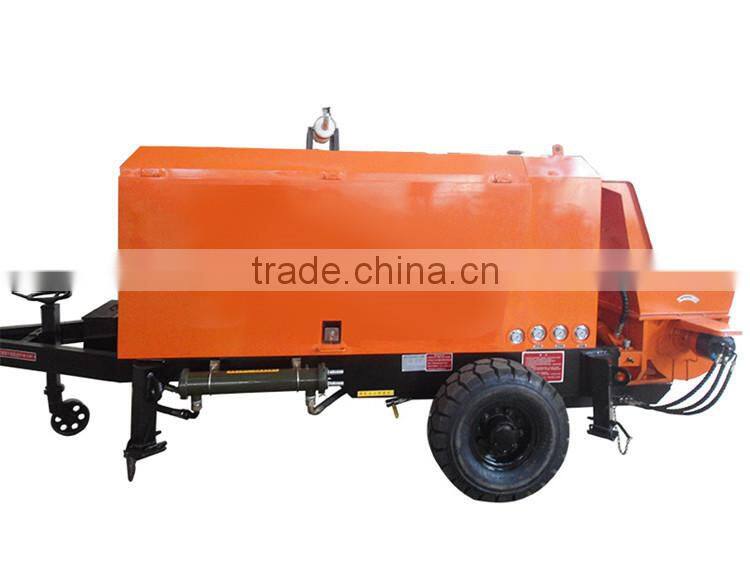

Matching with Concrete Pump Truck and Trailer Concrete Pump Equipment
Factory Information:
Certifications:
Contact Us
- Zhengzhou Lead Equipment Co., Ltd.
- Contact nameNancy Liu
- Phone86-371-63902781
- AddressXisihuan Ring-road East, Tielu, Xushui Town, Zhongyuan District, Zhengzhou Zhengzhou,Henan
