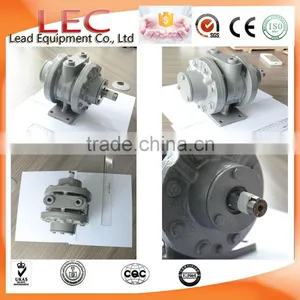

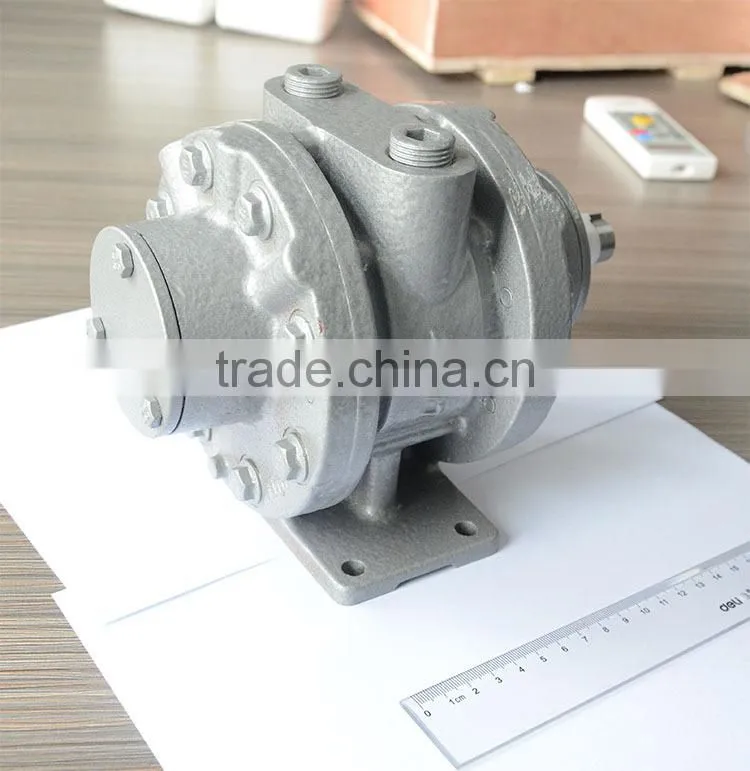

Hazardous Environment Type Vane Air Pneumatic Motor
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD37000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Product Discription of 8AM -5.2HP Blade Type Pneumatic Air Motor for Harsh Environment :
Vane air motor description:
With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy. Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion. It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, petrochemical, volatile atmosphere, paper and other industries.
Vane air motor features:
1. Great for harsh environments: It does not build up heat or sparks make air motors ideal for use in flammable or explosive applications.
2. Intrinsically safe in hazardous environment, can work in humid, high temperatures, high dust and other proof working environment, for example: Mines , petrochemical ,volatile atmosphere, flammable or explosive applications.
3. These air motors can be coupled with gearboxes to increase torque and reduce speed.
4. Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
5. Air motors can easily operate under conditions which are unfavorable electric, hydraulic, stepper and servo motors.
Applications:
Mixing equipment, Conveyor drives, Pump drives, Food packaging, Pharmaceutical packaging, Winches and hoist, Hose reels, Fiberglass choppers, Tension devices, Turntables, Oil and gas industry for air winches and Mining equipment…
Technical data of Hazardous Environment Type Vane Air Pneumatic Motor:
Model |
Maximum Speed |
Maximum Torque |
||||||||
Power |
Torque |
Rotate Speed |
Air consumption
|
Rotate Speed |
Torque |
|||||
hp |
kw |
Nm |
lb.in. |
rpm |
m3/h |
cfm |
rpm |
Nm |
lb.in. |
|
1AM |
0.45 |
0.33 |
0.31 |
2.75 |
10000 |
35.1 |
20.5 |
650 |
0.65 |
5.6 |
1UP |
0.45 |
0.33 |
0.58 |
5.25 |
6000 |
47 |
27 |
500 |
0.68 |
6.0 |
2AM |
0.93 |
0.68 |
2.20 |
19.50 |
3000 |
49.5 |
30 |
350 |
3.05 |
26.1 |
4AM |
1.70 |
1.30 |
4.10 |
36.00 |
3000 |
132.5 |
78 |
300 |
6.3 |
56 |
6AM |
4.00 |
3.00 |
10.00 |
84.00 |
3000 |
228 |
128 |
300 |
13 |
115 |
8AM |
5.25 |
3.90 |
14.40 |
132.00 |
2500 |
293 |
175 |
300 |
21 |
185 |
16AM |
9.50 |
7.00 |
34.00 |
290.00 |
2000 |
475 |
275 |
300 |
43 |
372 |

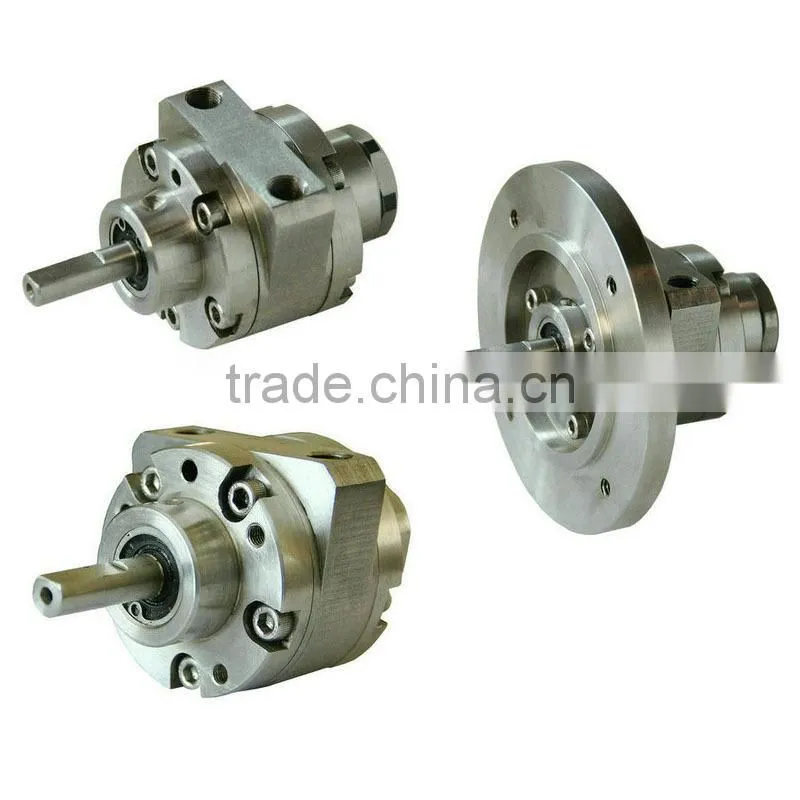

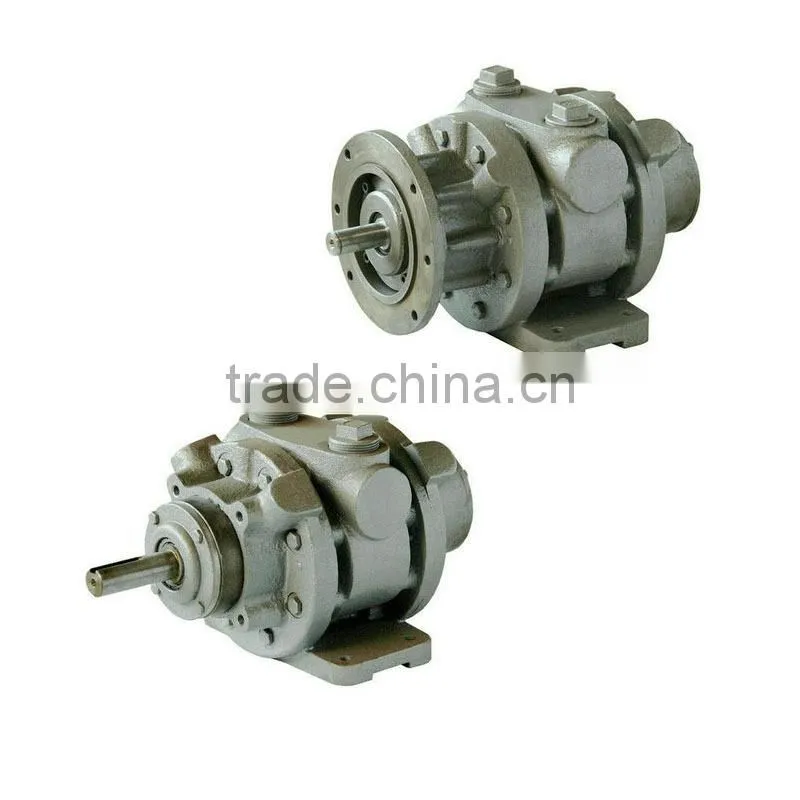

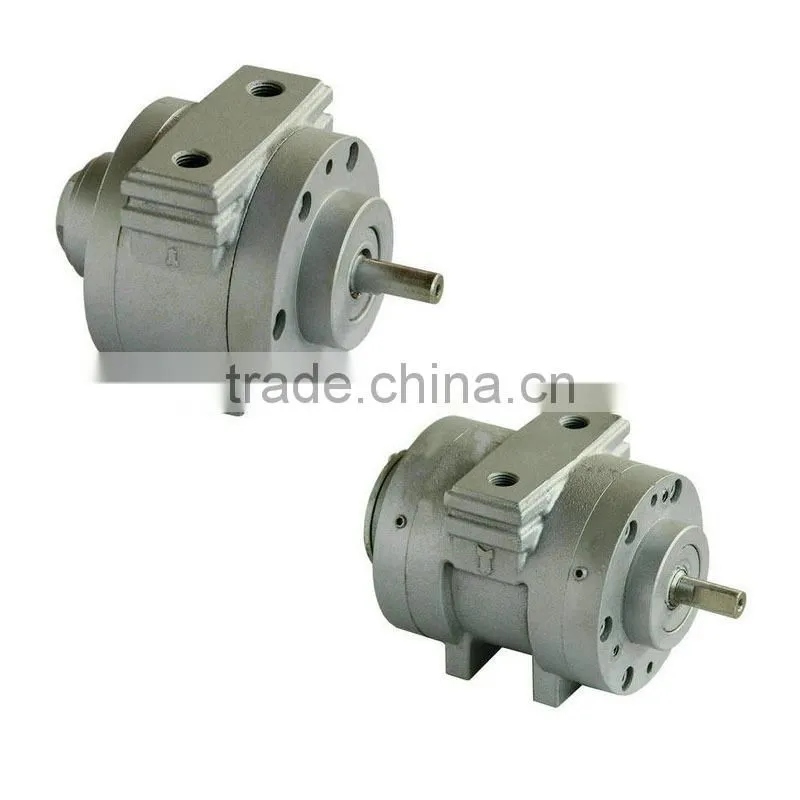

Other Model Vane Air Motors:

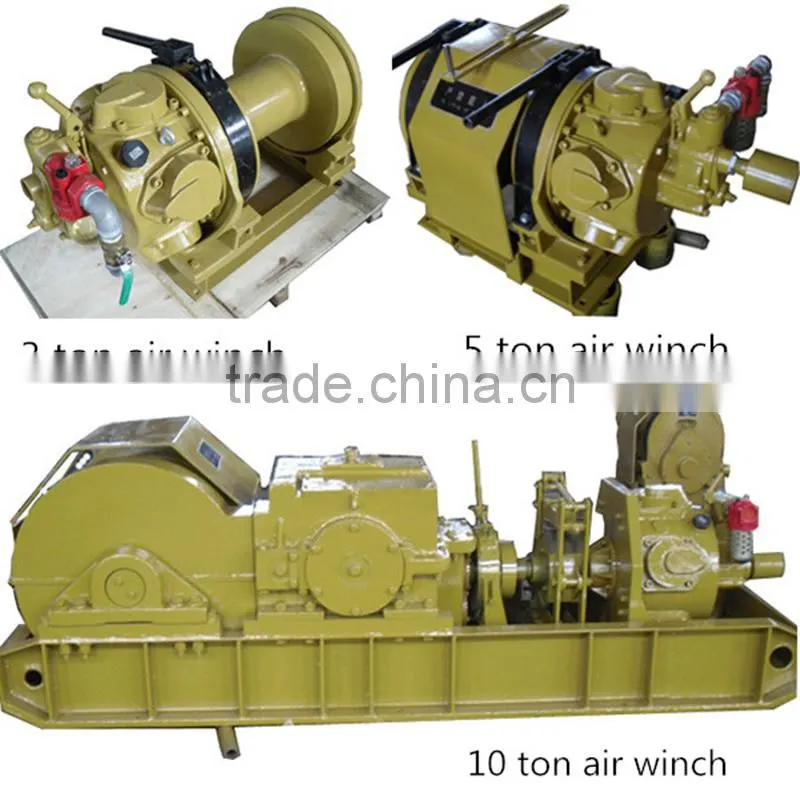

Assorted for Air Winch:
Package:
Factory:
Certificate:
Thank you for your time, welcome to contact us and visit our facory!
Website:
Skype ID:lee.mariah2
FAQ:
Please inform us more detail information as followings,so we can recommend suitable type for you
1. What machine used in ?
2. How much is the power, torque and speed you need?
