3 ton Mine and Construction used Anti-explosion Pneumatic Winch Machine
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD21000.00
Through trade assurance you can 100% payment refund up to trade assurance amount for orders
not meeting agreed Delivery or Quality terms.
Product Discription:

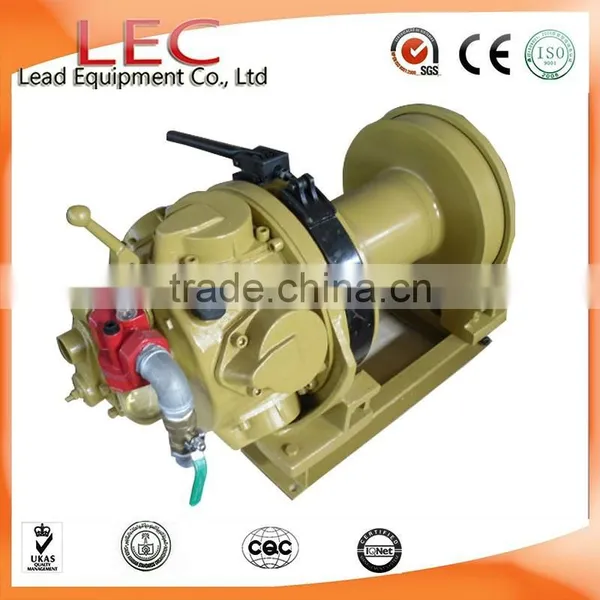

This 3 ton air winch is powered by TMH15 piston air motor and remotely operated. It’s mainly used for pulling or lifting heavy things in metal mine, coal mine, construction project, oil field, etc.
Features:
1. This is multi-purpose air winch. This includes standard radial piston air motor and control valve. Civil and building construction
2. Whether it’s on the surface or below ground, mining is a big industry. Thern winches and cranes are built tough to withstand the dust, dirt, grit, grime, moisture and debris that come with the territory.
Technical data
3 Ton Air Winch | ||||
1 | Air pressure(Mpa) | 0.6-0.8 | ||
2 | Rated Tension(KN) | 30 | ||
3 | Rated Speed(m/min) | 24 | ||
4 | Air motor | Rated power(KW) | 15 | |
Cylinder Qty.(pcs) | 5 | |||
5 |
Drum | Quantity | 1 | |
Diameter(mm) | 222 | |||
Width(mm) | 335 | |||
Rope capacity(m) | 150 | |||
6 | Rope diameter(mm) | 16 | ||
7 | Air hose diameter(inch) | 1.25 | ||
8 | Dimension | length(mm) | 1200 | |
width(mm) | 470 | |||
height(mm) | 750 | |||
