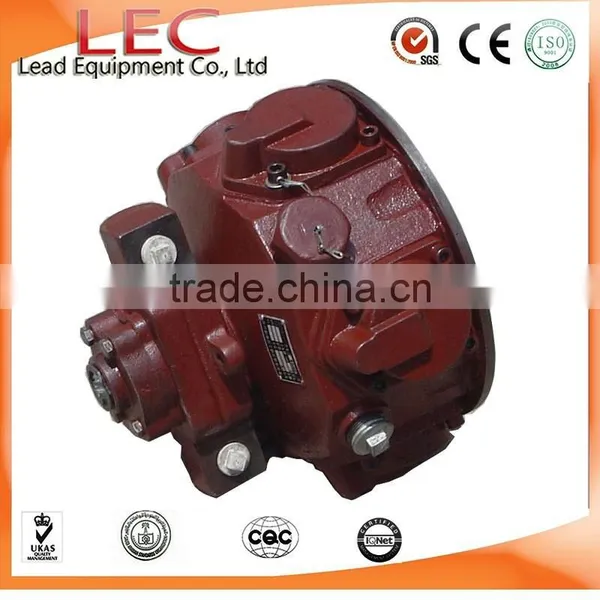

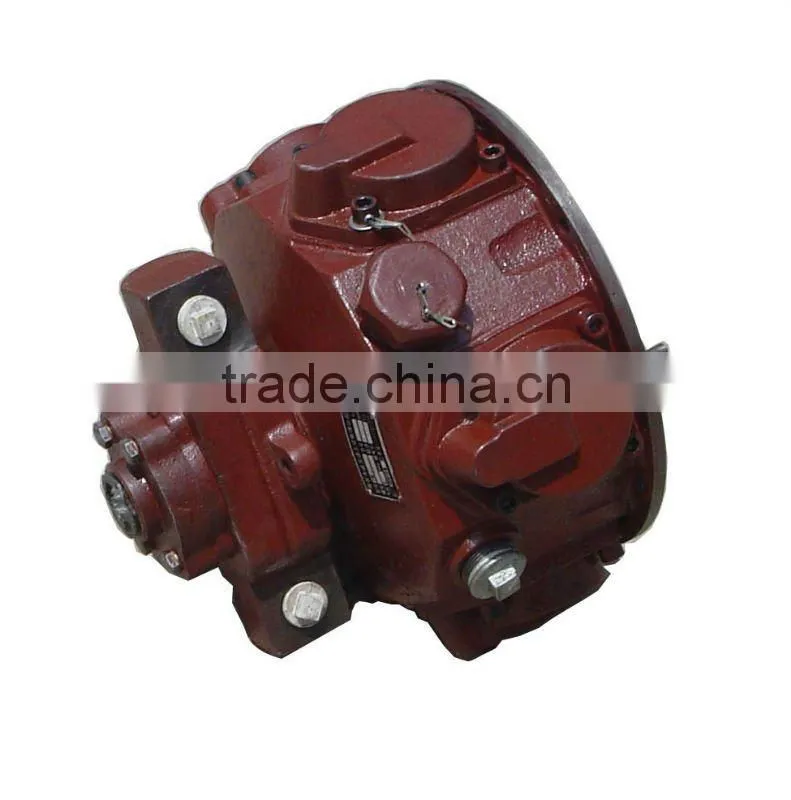

6 Air Cylinder Pneumatic Piston Motor for 1 ton Hand Operated Air Winch
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD32,000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

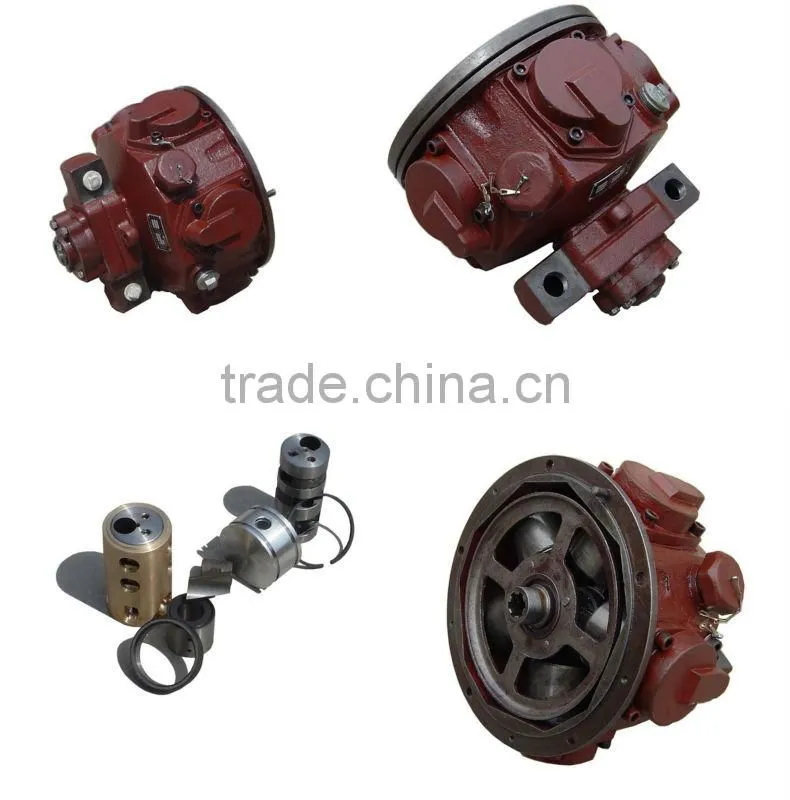

1. The air motor configuration and principle
With the compressed air, the pressure energy is converted into mechanical energy by the piston air motor.

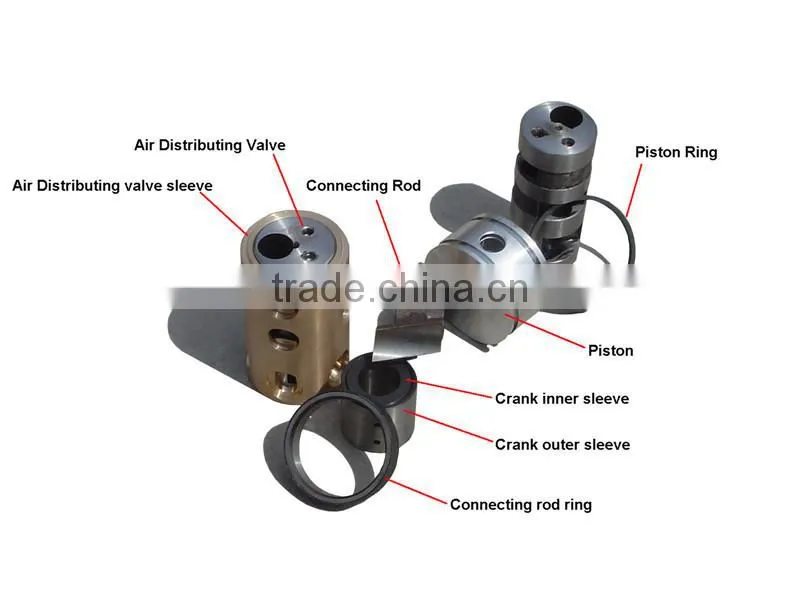

After the compressed air enters into the inlet of the air motor, the air distributing system (valve core and valve bush) distributes the compressed air in sequence into the air cylinders. The compressed air in the said cylinders is expanded to push the piston reciprocating moving, then to drive the connecting rod and crank to revolve.
2. The air motor features
n Compact and Powerful
n Easily operate and low maintenance
n Reliable and Stable run under inflammable, explosive, outdoor, wet, damp and other extremely conditions
n Overload Protection function, automatically reduce to a lower speed until overload relieved and restart
n Speedless control regulates the input air volume to adjust the rotary speed and power.
n The air motor can be started, stopped and converted direction frequently.
n Self-cooling of air motor, thus the air motor can work with wide temperature rang from 0-150 Celsius(or 0-302F).
n When air motor works, no sparks or leaking oil occurred, thus the air motor can work run under inflammable, explosive circumstance.
We hereby confirm that Piston Air Motor can be tailor-made to meet customers' special demand.
3. The air motor applications
Air motors are suitable for heavy duty applications.
Based on said features, air motors are widely used in industry fields, especially in extreme circumstance, where electric motors or other engines can not work. The typical industrial applications:
n Pneumatic Mixers
n Pneumatic conveyer
n Drill machine
n Gunite machine
n Pneumatic Winch
Technical Data:
Model |
Rated Power Kw(hp) |
Rated Rev. RPM |
Rated Torque NM |
Starting Torque NM |
Air Consumption m3/min(CFM) |
Working Pressure Mpa(PSI) |
Weight KG(lbs) |
TMH3 |
3(4) |
2800 |
10 |
13 |
3.6(129) |
0.5(66) |
24 |
TMH3B | |||||||
TMH3D | |||||||
TMH3.2 |
3.2(4.4) |
1000 |
30.5 |
39.7 |
3.84(137) |
0.5(66) |
22 |
TMH4 |
4(5.4) |
1000 |
38 |
49 |
4.8(171) |
0.63(83) |
30 |
TMH4D | |||||||
TMH4A | |||||||
TMH6 |
5.88(8) |
900 |
62.6 |
81 |
8(286) |
0.63(83) |
72 |
TMH6A | |||||||
TMH8 |
8(10.9) |
650 |
117.5 |
152 |
9.4(336) |
0.63(83) |
74 |
TMH15 |
14.7(20) |
650 |
216 |
280 |
17(607) |
0.63(83) |
|
TMH15A | |||||||
TMH18.4 |
18.4(25) |
600 |
286 |
371 |
21.5(768) |
0.63(83) |
|
TMH22 |
22(30) |
600 |
300 |
400 |
21(750) |
0.63(91) |
325 |
TMH25 |
25(34) |
600 |
380 |
480 |
27.3(975) |
0.8(115) |
Air Motor used for Air Winch:

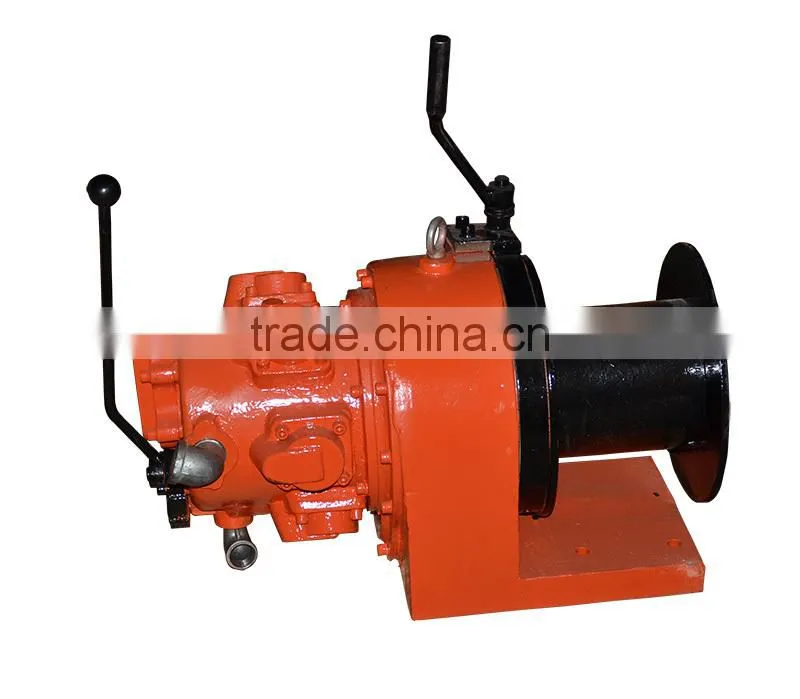

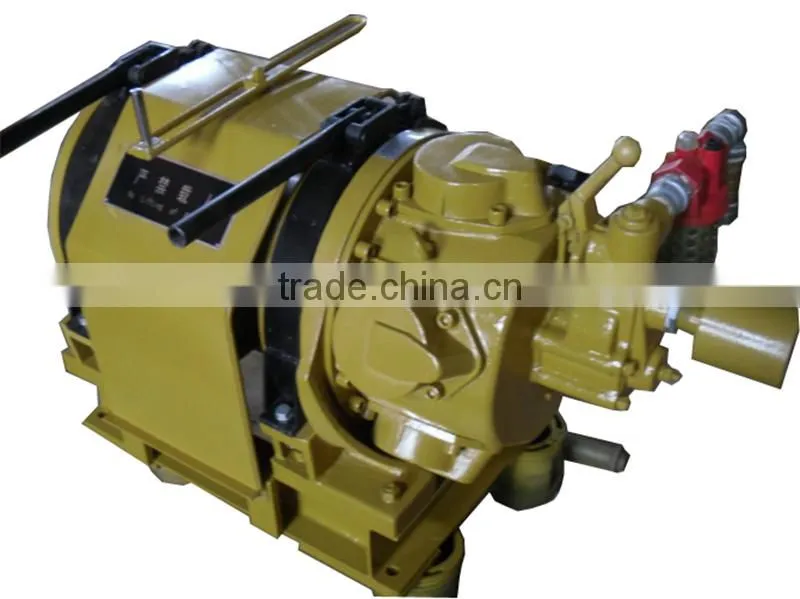

1 ton Air Winch:

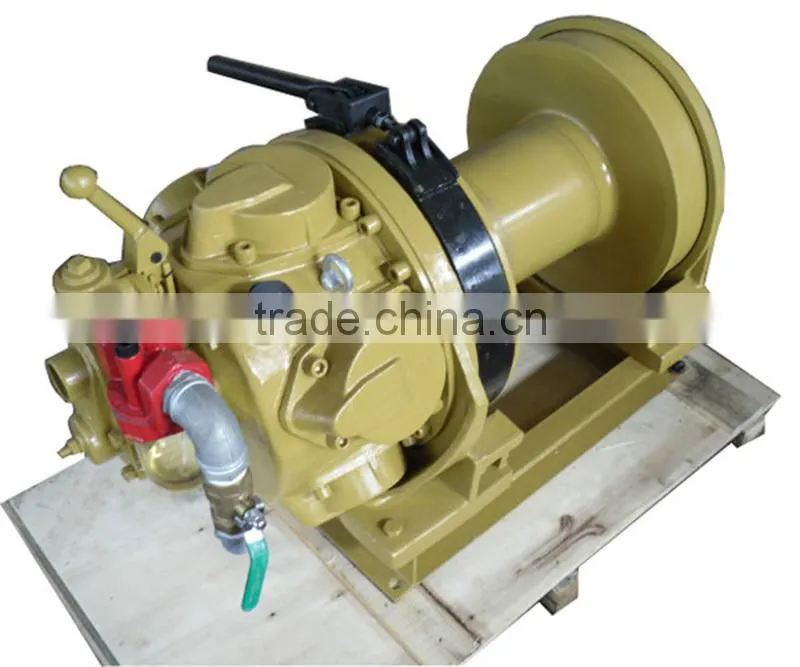

2 ton Air Winch:

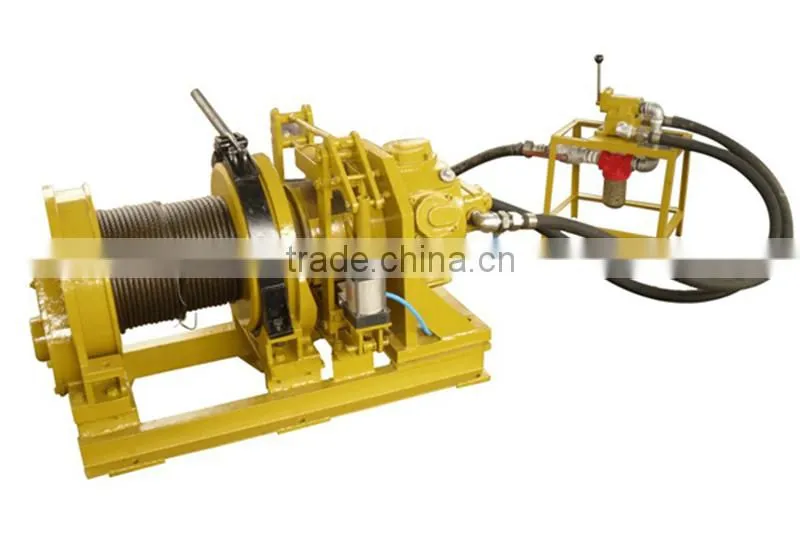

3ton Air Winch :
5 ton Air Winch :

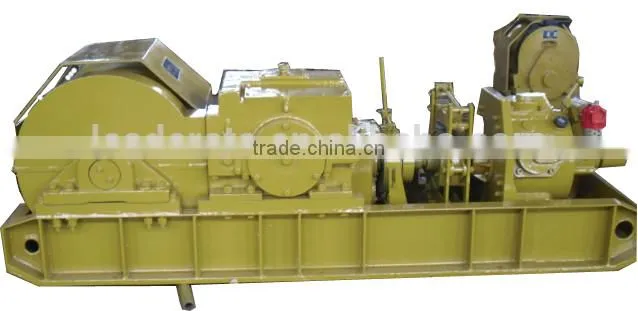

10 ton Air Winch:
Package:
Factory:
