Inverse PET Bottle Conveyor System With Sterilizing Chain
- Shanghai /Guangzhou / Shenzhen
- T/T L/C Credit Card
You May Like
-
Automatic Bottle Labeling Machine
-
Bag in Box Filling Machine
-
High Performance Automatic Combination Balance Packing Machine for Chips
-
Hot Sale Full-Automatic Packing Machine for Food Commercial
-
Hot Sale Automatic Balance Packing Machine for Food/chips
-
Hot Sale Altomatic Balance Package Machinery/balance Packaging Equipment
Product Details
Condition | New | Type | Vertical Conveyor | |
Material | Stainless Steel | Material Feature | Heat Resistant | |
Structure | Chain Conveyor | Load Capacity | 30000~36000 (500ml/b) | |
Place of Origin | Guangdong, China | Brand Name | AL-Najem | |
Voltage | 380V | Power(W) | 5.5KW | |
Dimension(L*W*H) | 17000*1068*1250 | Certification | ISO | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

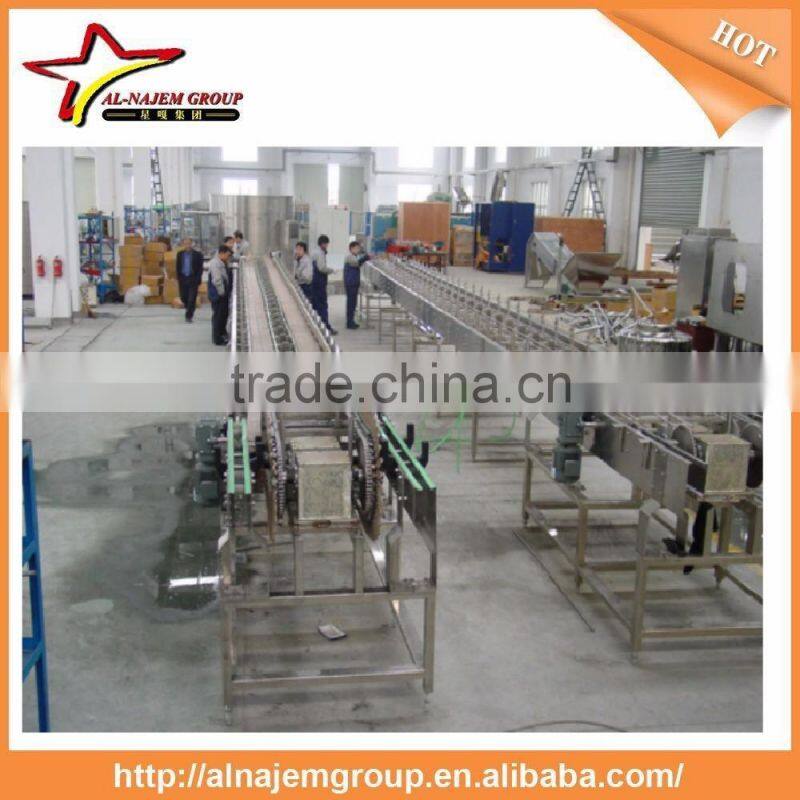

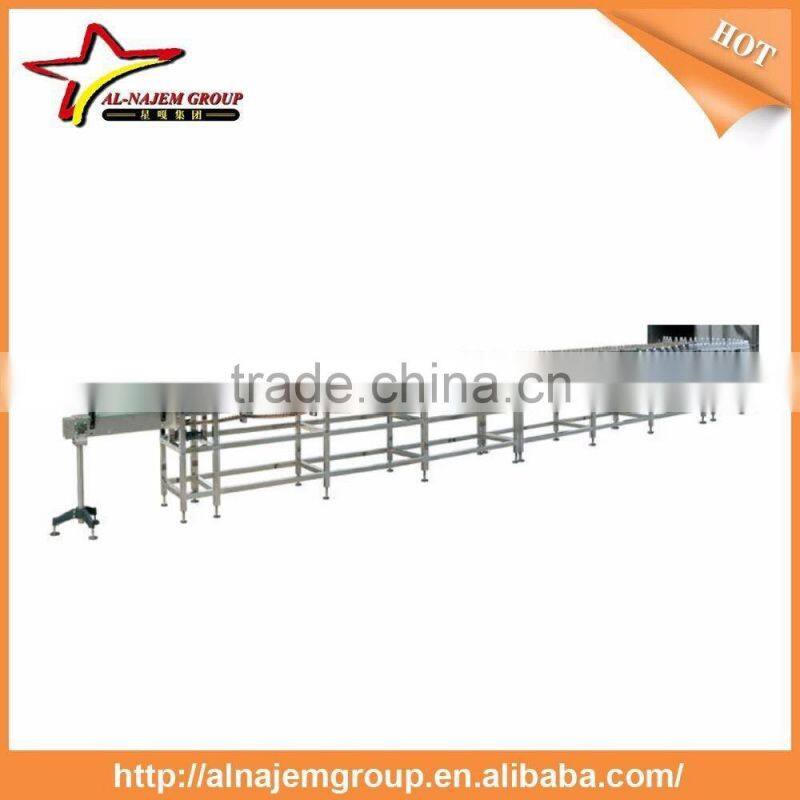

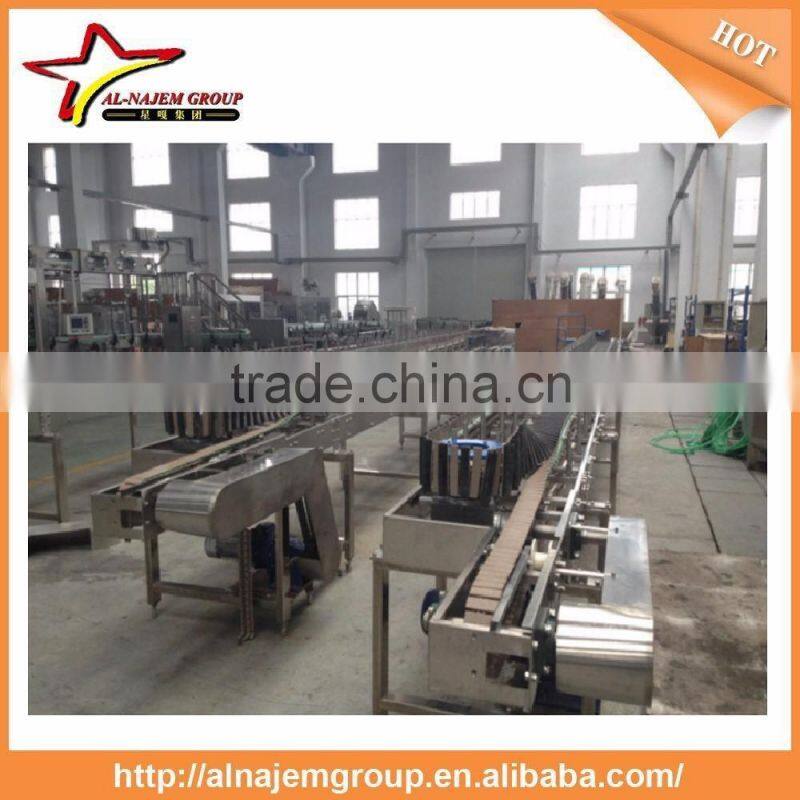

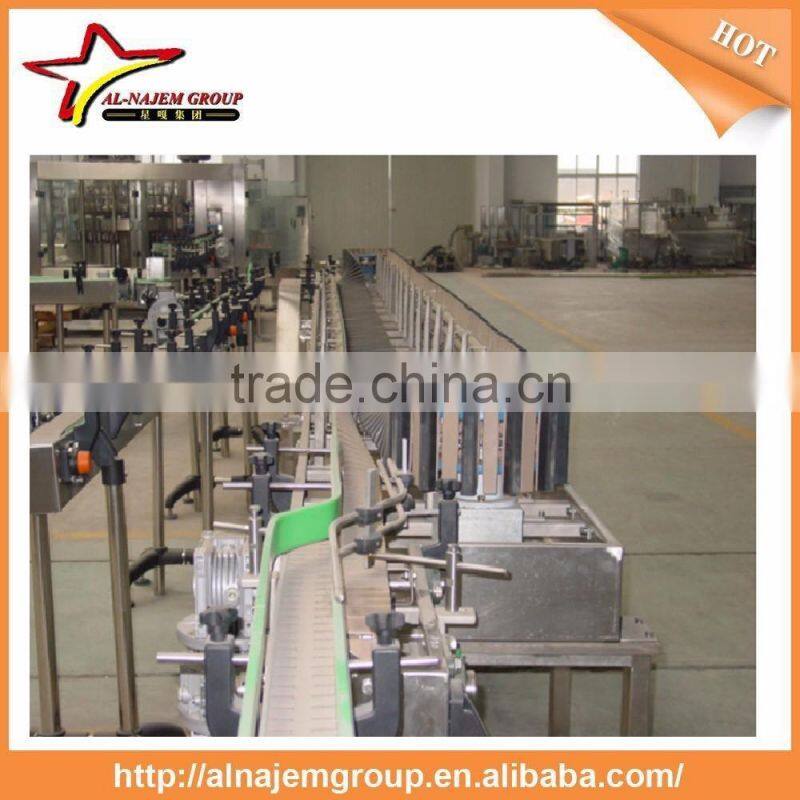

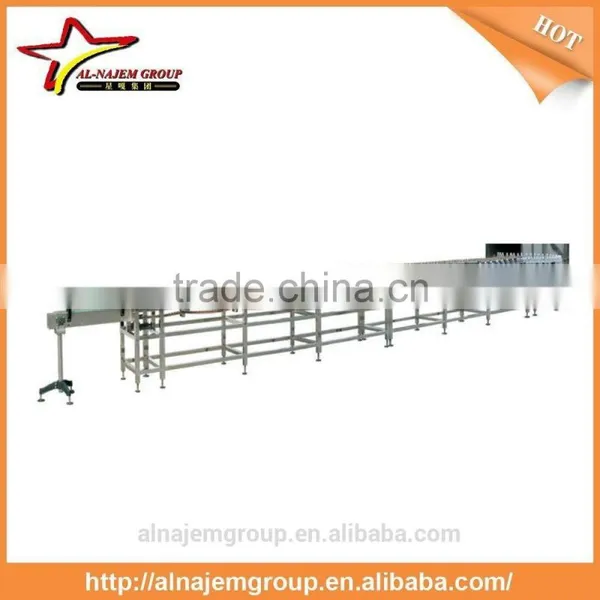

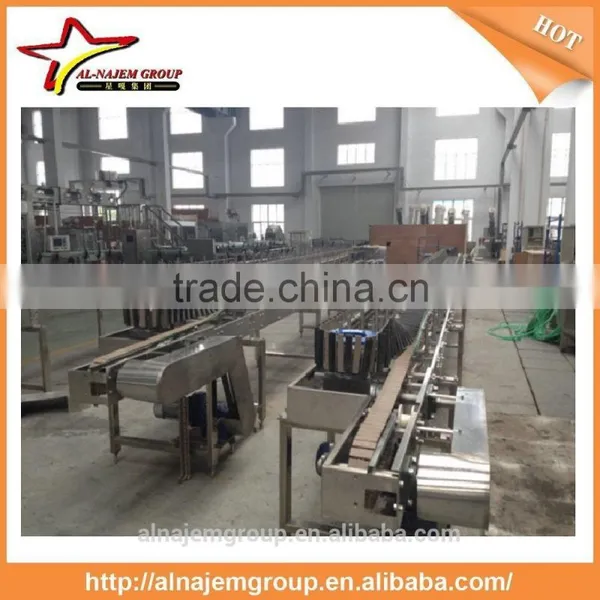

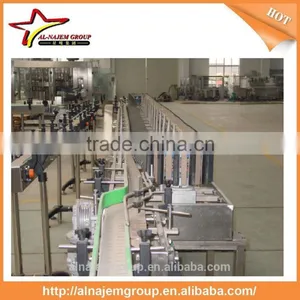

Inverse PET Bottle Conveyor System With Sterilizing Chain
Product Description
Description:
It is mainly used in sterilizing PET bottle mouth and inside surface of caps. In which have not been disinfected by the mal tea. Fruit juice which having been filled in PET bottle. In mainly consist of chief conveying chain system, support, bottle reversing chain system, bottle reversing guiding rod and bottle repositioning rod, use its inner thermal medium to disinfect bottle mouth and caps without any other heat source, so it can save energy. The machine is fully made of SUS304 stainless steel, more convenient in operation. Productivity: 5000-36000 bottles / hour, sterilizing time: about 15-40 seconds.
Specifications:
1. The sterilizing chain is composed of two perpendicular conveyor belts and which are synchronous running.
2. Every piece of chain conveyor board fixed a rubber pad to ensure that the process of reversing bottles to maintain a certain interval and no sliding.
3. A conveyor belt from the level to the vertical, after a certain distance and then from a vertical to the level; Another from a vertical to the level, after a certain distance and then from the level to vertical; There is a group of working face among them which always keeps vertical relations and the realization of the bottle automatic reversing bottles purposes.
Technique Parameters
model | SDPL17-00-00 | DPL14 | DPL16 | DPL18 | DPL10 |
Production Capacity | 30000~36000 (500ml/b) | 10000~12000 (500ml/b) | 12000~15000 (500ml/b) | 15000~18000 (500ml/b) | 5000~18000 (500ml/b) |
Working voltage(AC) | 380V | 380V | 380V | 380V | 380V |
motor | 5.5KW | 2.2KW | 1.1KW | 4KW | 1.5KW |
dimension | 17000X1068X1250 | 14000X650X1200 | 14000X650X1200 | 18000X650X1200 | 10000X650X1200 |
weight | 4000kg | 2000kg | 2400kg | 3000kg | 2200kg |
AL-Najem Group Advantage:
1. Competitive price & good quality
2. ODM / OEM is available
3. In-time delivery time
4. Qualified sea worthy wood case
5. Quick & effective service
6. 1-year warranty, life-time service
Sterilizing chain for falling bottle, Sterilizer machine, sterilizer chain, DPL
