Ice-lolly Stick Juice Spout Bags Filling Sealing Machine Fully Automatic Stand up Bag Filler And Sealer Equipment Food Drinking

FOB Price

US$ 3,500 - 4,000 / Set

1 Set(Min. Order)

Port Shanghai/Guangzhou/Shenzhen
Payment TermsT/T L/C Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Beverage, Food, Other, Beverage, Food, Machinery & Hardware
Packaging Type	Bags, Pouch, Stand-up Pouch	Packaging Material	Plastic
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220V 50Hz or 220V 60Hz or 110V 60Hz	Power	0.8-1.6 Kw
Place of Origin	Guangdong, China	Brand Name	AL-Najem
Dimension(LWH)	12008001200mm	Weight	300 Kg
Certification	patent machine	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

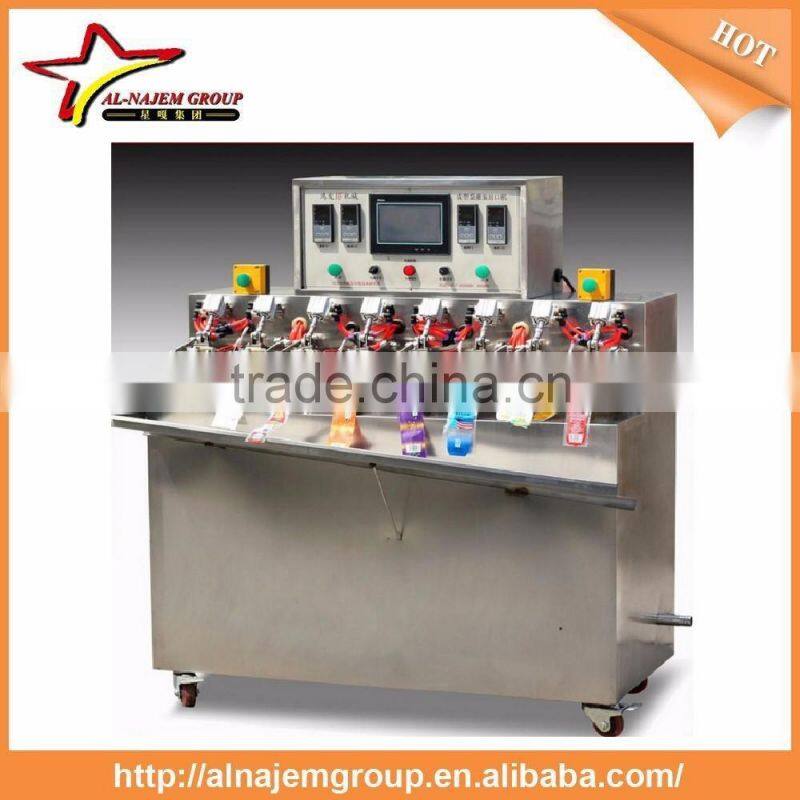

Ice-lolly stick juice spout bags filling sealing machine fully automatic stand up bag filler and sealer equipment food drinking

Description

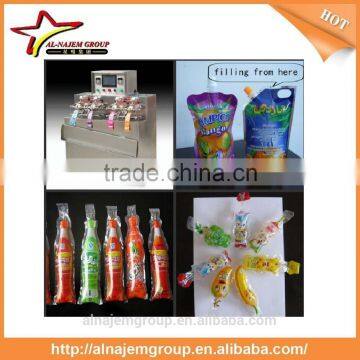

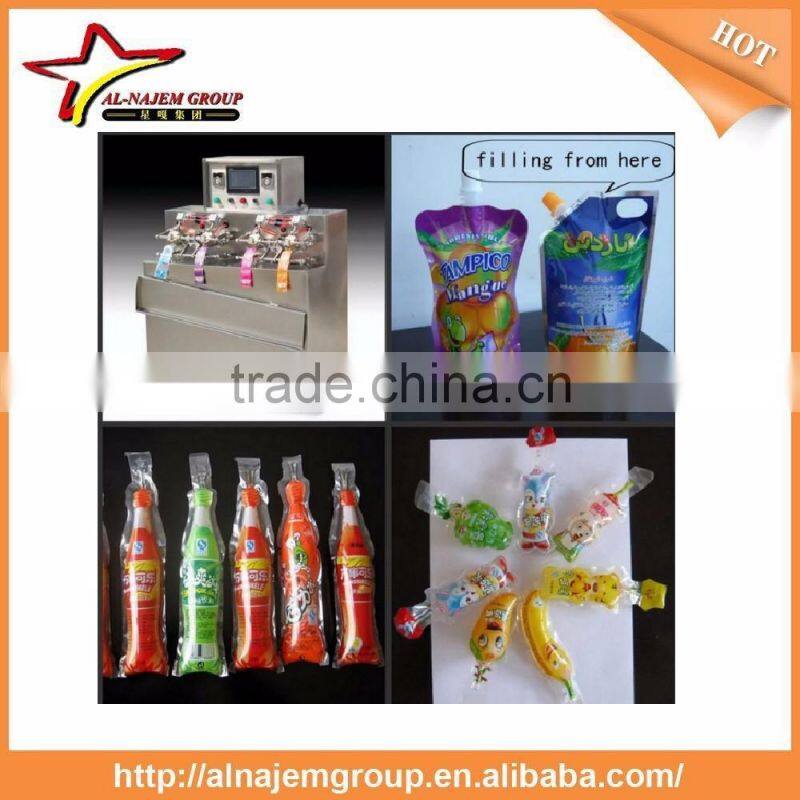

This plastic pouch filling sealing machine is suitable for filling and sealing different drinks, such as juice, mineral water etc and also suitable for different shape and volume bags. We can design different needle , filling and sealing structure, according to customers' demand.

Characteristics of juice spout bags filling sealing machine

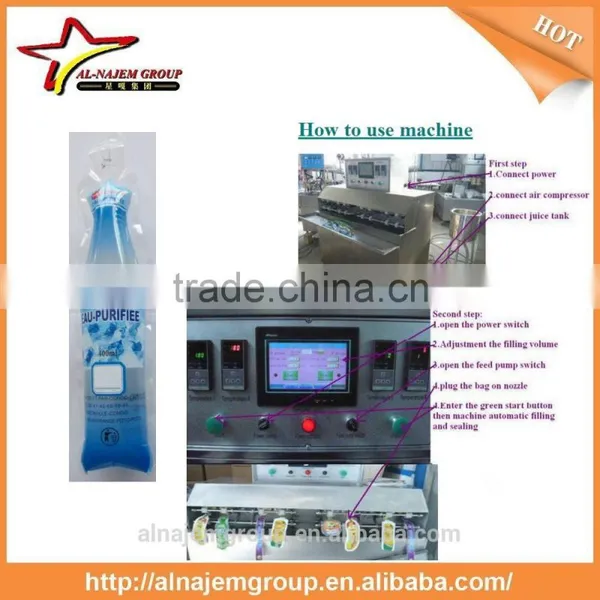

(1)This pouch filling machine filling machine work automatically from filling , pressing bag, sealing and discharge bag ,except putting bag manually.Filling full, easy operation and sealing tight.

(2)The machine is designed with four working positions and eight heads for filling.Each two heads can be controlled

separately,therefore causing no stopping and waiting time in operation and providing improved efficiency.

(3) The bag filling machine can be operated by one person.Continuous filling,sealing and unloading can be achieved by one person putting the bag in machine continuously,without pressing the switch at all.The efficiency can reach 2000

to 5000 bags/hour(original at home)

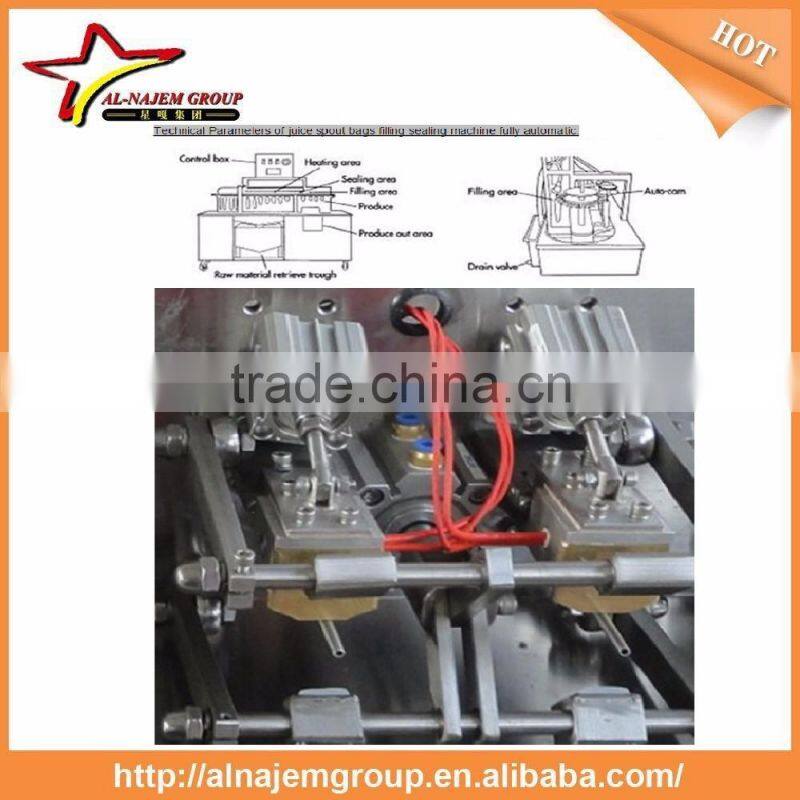

Technical Parameters of juice spout bags filling sealing machine fully automatic

Technical data
Model	YX-SYBD08
Bag material	BOPP laminated LDPE, various shapes pre-shaped bags
Film thickness	>0.18mm
Filling volume	50-500ml (Custom)
Filling accuracy	±2%
Power input	220V 50Hz or 220V 60Hz or 110V 60Hz
Power	0.8-1.6 Kw
Air Pressure	0.5-0.8 Mpa
Air Consumption	0.25-0.50 m3/min
Packing rate	2600 bags/hr
Filling nozzles	8
Workstation	2
Net weight	240 kg
Gross weight	300 Kg
Overall dimension(L×W×H)	1200×800×1200mm3
Packaging dimension(L×W×H)	1300×700×1400 mm3
