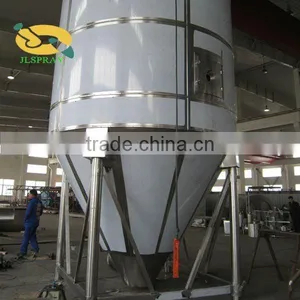

Series Spray Drier For Chinese Traditional Medicine Extract

The solution, emulsion, suspension liquid or slurry are sprayed into fine beads in the hot air, going down from the top of the drying chamber to the bottom, the water will be evaporated to and the product becomes powder or granular product.

Induce hot air from the top of drying tower, at the same time, pump the material liquid to the top of the tower by screw pump or peristaltic pump, the feeding solution becomes into fine beads or small droplets through the atomizer. When the droplets meet the high temperature hot air, the water will be evaporated immediately, and the material liquid is dried into dry product in a very short time, the product is discharged from the bottom of the drying tower, or from the cyclone (depend on the configuration). When the hot air contacts with the droplets, the temperature declines significantly, and the humidity increases greatly, and then will be exhausted by exhaust fan. The fine powder in the air will be collected through different separating devices

There’re different fine powder separation and recovery devices, such as cyclone (the common type and various combination type), bag filter, cyclone + bag filter, cyclone + wet scrubber, and bag filter + wet scrubber etc. We should different fine powder separation and recovery devices as per the characteristics of product and requirements of customer.

Depend on the product features and requirements, we might install secondary drying and cooling system (such as ZLG vibration fluid bed or pneumatic transportation), formulation system or powder sieving system etc after the spray dryer, or dehumidifier.

Food Industry: Fatty milk powder, protein, cocoa milk powder, subsitute milk powder ,egg white (yolk), food and plant ,oats ,chicken juice, coffee ,instant dissoluble tea ,seasoning meat ,protein ,soybean ,peanut protein , hydrolysate and so forth .Sugar ,corn syrup ,corn starch ,glucose .pectin ,malt sugar , sorbic acid potassium etc.

Medicine: Traditional Chinese medicine extract ,ointment ,yeast, vitamin ,antibiotic, amylase ,lipase.  etc .
Plastics and resin : AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, poly-chloroprene and etc.
Detergent: common washing powder ,advanced washing powder ,soap powder ,soda ash ,emulsifier ,brightening agent ,orthophosphoric acid, etc.
Chemical industry :Sodium fluoride (potassium ), alkaline dyestuff and pigment ,dyestuff intermediate, Mn3O4, compound fertilizer ,formic silicic acid ,catalyst, sulphuric acid agent ,amino acid ,white carbon and so on .
Ceramic : aluminium oxide ,ceramic tile material ,magnesium oxide ,talcum and so on .
Other : Calmogastrin, hime chloride , stearic acid agent and the cooling spray .

1. The dry speed is fast and suitable for drying thermal sensitivity material particularly.

2. The finished product is ball granule with uniform size. Its fluidity and solubility are good. The purity of product is high and its quality is good.
3. It applied scope is wide. According to the characteristics of raw material, it can use hot air to dry and can also use cool air to granulate. It has strong adaptability to raw materials.
4. Its operation is simple and stable and its control is simple and convenient and is easy to realize automatic operation.
