wire forming machine

Specifications

wire forming machine
diameter: 1mm-3mm
inlet length: unlimited

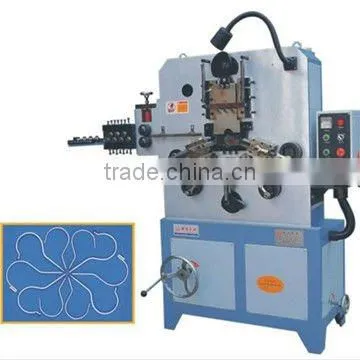

Wire Forming Machine

A. Applications:

1. The users can choose different forming moulds according to the drawing of steel wire constructional element, and choose corresponding molding station, adjust the molding station according to the forming time . At last finish the technical process from steel wire straightening, cutting off, and forming.
2. The conveying mechanism of the machine is servo motor feeding. And we using man-machine interface touch screen to set the feed length, processing number, action sequence of each station, and other relevant technical parameters. The five stations forming are all hydraulic molding. The finished workpieces are pushed-out by hydraulic ejector.

B. Main technical parameter.

Number Item
1 Maximum forming steel wire diameter (mm) Φ4
2 Minimum forming steel wire diameter (mm) Φ2
3 Forming speed scope (pieces/min) 30- 36 pieces/min
4 Normal working speed (pieces/min) 30p ieces/min
4 Main forming hydraulic cylinder diameter (mm) Φ63
5 Hypo-formi ng hydraulic cylinder diameter (mm) Φ40
6 Feeding servo motor power (kw) 1.1kw
7 Hydraulic system motor power (kw) 5.5kw
8 Hydroform station (pieces) 5
9 Host machine overall dimension (L×W×H) 1400 mm×800mm×1700m m


C. Equipment composition:
1. Equipment composition: mainframe, hydraulic system, horizontal straighten device, vertical straighten device, servo feeding device, molding slider device, central mould seat, electrical control cabinet assembly, material shelf.
2. The main electrical composition: human-computer interface touch screen, PLC, hydraulic control system etc.

D. Technical process:
Wire clamping --- leading in horizontal straighten --- vertical straighten --- fixed length feeding --- cutting off --- forming --- ejecting workpieces.
