Wire Surface Degreasing Machine

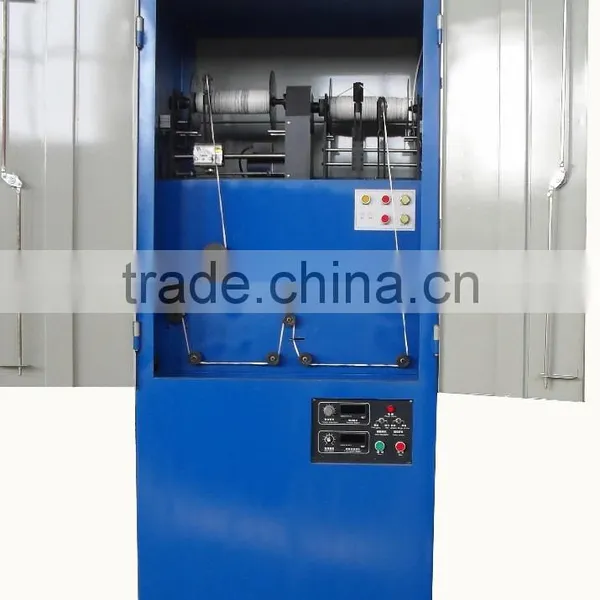

Wire Surface Degreasing Machine photo-1

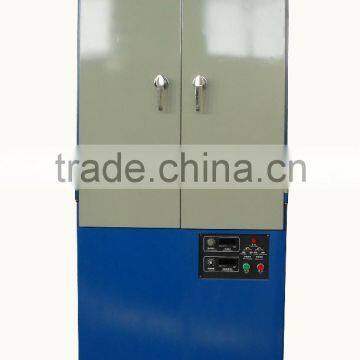

Wire Surface Degreasing Machine photo-2
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TW
Use:
Degreasing
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name TW
Use Degreasing
Cleaning Process Other, specific rope
Cleaning Type Degreaser
Industry Used Other, welding wire
Material Metal / Coil
Power(W) 100W
Dimension(L*W*H) 1000mm*600mm*2050mm
After-sales Service Provided Engineers available to service machinery overseas

Wire surface degreasing machine



1. Main description of machine

The degreasing machine is for cleaning powder and grease from wire surface, belonging to fine powder-removing machine. Its theory is winding specific rope on wire and relative moving and rubbing against wire surface to wipe and clean. The machine is composed of one main motor driving principal axis and one auxiliary motor for wire traversing. The two motors’ speed and torque can be adjustable, and have wire broken alarm function. To prevent powder dust leaking, the machine adopts totally closed mode and has ventilation connector linking with external dedusting duct. Coil and decoil wheels installing adopt pneumatic method.

2.Main Technical parameters

1)        Voltage supply: 220v/50HZ-60HZ

2)        Power: 100W

3)        Wire diameter: φ0.8mm-φ4.0mm

4)        Applicable wire speed:≤1200m/minute, rope speed: 750mm-1500mm/minute, rope consumption: 500g-1000g/per shift(1 shift: 8hours), rope repeating times:3

5)        Overall dimensions: 1000mm*600mm*2050mm

6)        wire inlet from left and outlet from right, height of center when wire into hole:960mm (when customizing, pls state it.)

7)        Machine weight: 170KG
