High-speed Wire Cutting Machine (2.5mm-5.0mm)
US$ 20,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Tianjin, China
Brand Name:
TW
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Tianjin, China
Brand Name
TW
Rated Power
24kw
Dimension(L*W*H)
2400*800*1500
Weight
3200KGS
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

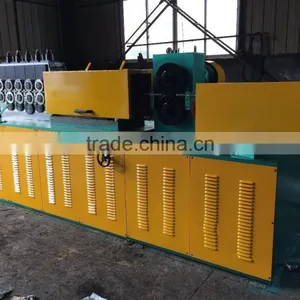

High speed wire cutting machine
High speed wire cutting machine is the exclusive equipment for electrode production. It’s used for straightening and cutting off the welding rod core, Can be used with high speed wire drawing machines.
Main technical data:
|
No. |
Model |
Technical data |
1 |
Range of wire cutting length |
300-450mm |
2 |
Cutting diameter |
Φ2.5-Φ5.0mm |
3 |
Max. Cutting speed |
1000 pieces/min |
4 |
Length error range |
±1mm |
5 |
Total power |
24kw |
6 |
Overall size |
2400×800×1500mm |
Degreasing plant overall size |
2800×500×1010mm |
|
Auxiliary roll machine overall size |
850×750×1080mm |
|
|
Electrode conveyor machine overall size |
850×650×1225mm |
|
Weldingrod case overall size |
2200×600×1235mm |
|
7 |
Weight |
3.2T |
