welding wire
welding wire show details
Chemical Compostion and technical data
1.Chemical Composition(%)
Item | GB | AWS | C | Mn | Si | Cr | Ni | S | P | Cu |
ER49-1 | ER49-1 | -- | ≤0.11 | 1.80-2.10 | 0.65-0.95 | ≤0.20 | ≤0.30 | ≤0.030 | ≤0.030 | ≤0.50 |
ER50-3 | ER50-3 | ER70S-3 | 0.06-0.15 | 0.90-1.40 | 0.45-0.75 | 0.15 | 0.15 | ≤0.025 | ≤0.025 | ≤0.50 |
ER50-4 | ER50-4 | ER70S-4 | 0.06-0.15 | 1.00-1.50 | 0.65-0.85 | 0.15 | 0.15 | ≤0.025 | ≤0.025 | ≤0.50 |
ER50-6 | ER50-6 | ER70S-6 | 0.06-0.15 | 1.40-1.85 | 0.80-1.15 | 0.15 | 0.15 | ≤0.025 | ≤0.025 | ≤0.50 |
2.Mechanical Properties of Deposited Metal
MODEL | Tensile StrengthMpa (kgf/mm2) | Yield PointMpa (kgf/mm2) | Elongation% | Impact WorkAKV | Shielded Gas |
ER49-1 | ≥490 | ≥372 | ≥20 | ≥47 | CO2 |
ER50-3 | ≥500 | ≥420 | ≥22 | ≥27(-20℃) | CO2 |
ER50-4 | ≥500 | ≥420 | ≥22 | no requirement | CO2 |
ER50-6 | ≥500 | ≥420 | ≥22 | ≥27(-30℃) | CO2 |
welding wire

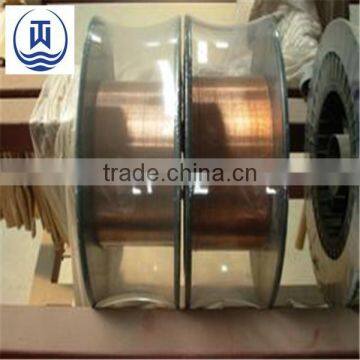

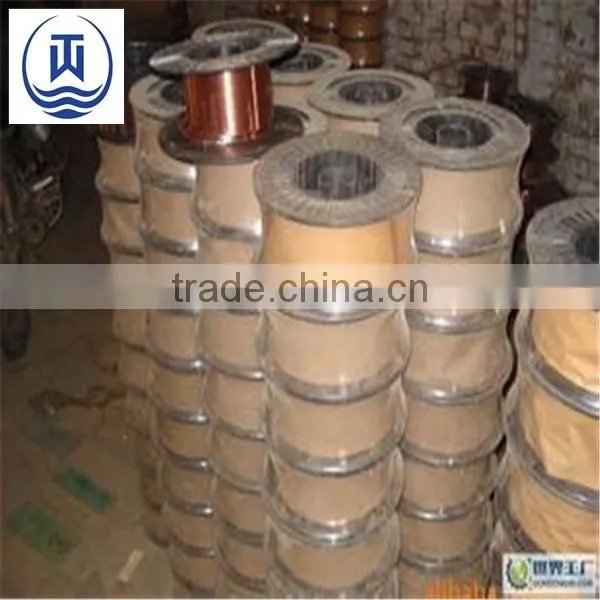

Packaging Details:15kg/plastic spool / vacuum pack / carton, then 1,080kg (72cartons) / pallet.
Advantage of welding wire:
1.Low welding cost.
2.High productivity and low electricity consumption.
3.Easy to operate, all position welding.
4. Very low hydrogen content in the weld and lower nitrogen content, excellent crack-resistance.
5.Little deformation after welding.
6.Wide applicability. Suitable for welding thin,medium and thick plates.
7.Co2 has good protective properties and high quality weld obtained.
Instructions of welding wire:
1.The oil stains and rust on the weldments should be cleared away.
2.Designed for welding with 100% CO2.
3.When welding, the gas flow rate is generally 20~25L/min.
Applications of welding wire:
Used for welding structures made of carbon steel and low-alloy structural steel with tensile strength higher than or equal to 490MPa. Most widely used for welding some key structures like shipbuilding, mechanical manufacture, pressure vessels, boilers, petroleum machinery, chemical machinery, hoisting machinery, etc.
More Products For You To Choose:
welding wire
1.Best price offer
2.On-time delivery
3.Strict quality control
4.The most comprehensive and the most attentive service.
Flux cored weiding wire machine we produce, we represent sales welding wire.
Certificate
1. If samples available?
Answer: We are happy to provide free samples to you. But you need to pay for the express charges for the first cooperation. We can return it as soon as you start an order.
2. If OEM available?
Answer: Yes, as we usually do.
3. What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
4. What are your company normal export terms?
Answer: We normally export with CFR, CIF and FOB.
5. How many days it will take you to produce mass production for us?
Answer: Normally it will take about 7-15 days. It also depends on the quantity and production seasons.
Looking forward to cooperating with you!
