Flux Cored Welding Wire,Co2 Welding Wire Price,E71T-1

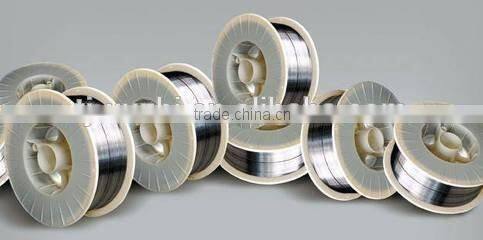

Flux Cored Welding Wire,Co2 Welding Wire Price,E71T-1 photo-1

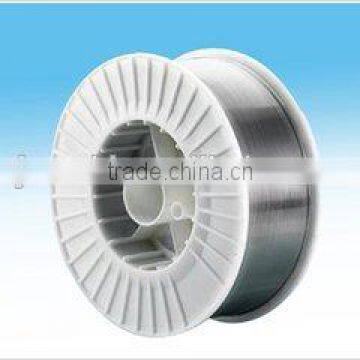

Flux Cored Welding Wire,Co2 Welding Wire Price,E71T-1 photo-2

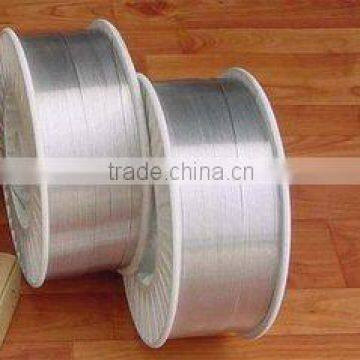

Flux Cored Welding Wire,Co2 Welding Wire Price,E71T-1 photo-3

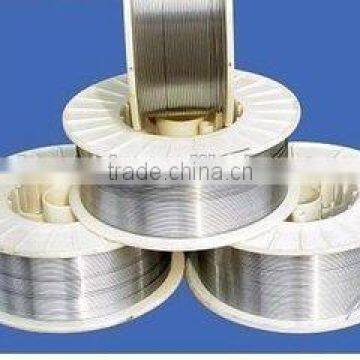

Flux Cored Welding Wire,Co2 Welding Wire Price,E71T-1 photo-4

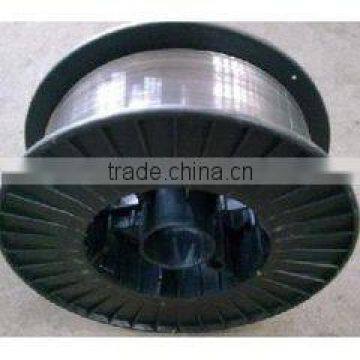

Flux Cored Welding Wire,Co2 Welding Wire Price,E71T-1 photo-5

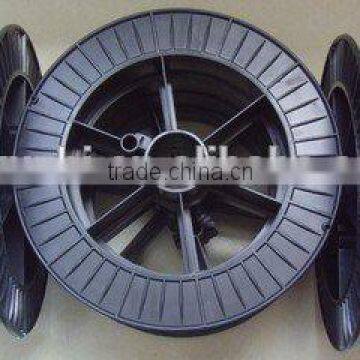

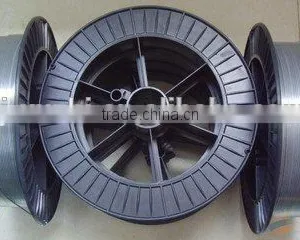

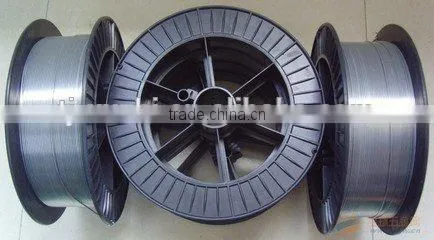

Flux Cored Welding Wire,Co2 Welding Wire Price,E71T-1 photo-6
US$ 500 - 1,000 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
E71T-1 Flux cored welding wire
Model Number:
E71T-1 Flux cored welding wire
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG CHINA
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Tianjin, China
Brand Name E71T-1 Flux cored welding wire
Model Number E71T-1 Flux cored welding wire

Flux cord welding wire E71T-1



1,Good Description

Specification



Flux cored wire is suitable for all-position welding



Flux cored wire



1. Size.:0.8MM, 1.0MM,1.2MM,1.6MM



2. Advantages :excellent welding performance, soft and stable arc, low spatter loss, easy slag removable, higher deposition rate particularly and suitable for all -position welding.



3. Typical application: Metallurgical industry, Bridge building, building industry, shipping industry



4. packing: 15kg/spool (paper box packing) 72 boxes/pallet(1080kg), 23760kg (22pallets), loaded in one 20 feet container



5. Quality certificate: ABS, LR, BV, GL, DNV, KR, CCS .



6.Chemica l Composition and technical data



Chemical Component of Final Production(%)

Component

C

Si

Mn

P

S

Cr

Ni

Cu

Standard

Max.0.12

Max.0.9

Max.1.75

Max.0.030

Max.0.030

Max.0.20

Max.0.50

Max.0.35

Typical Test of Mechanical Property

Yield Strength

σ0.2(MPa)

Tensile Strength

σb(MPa)

Percentage Elongation

δ5(%)

impact value

(J)

Test Temperature

(°C)



535

         639

25

112

-20

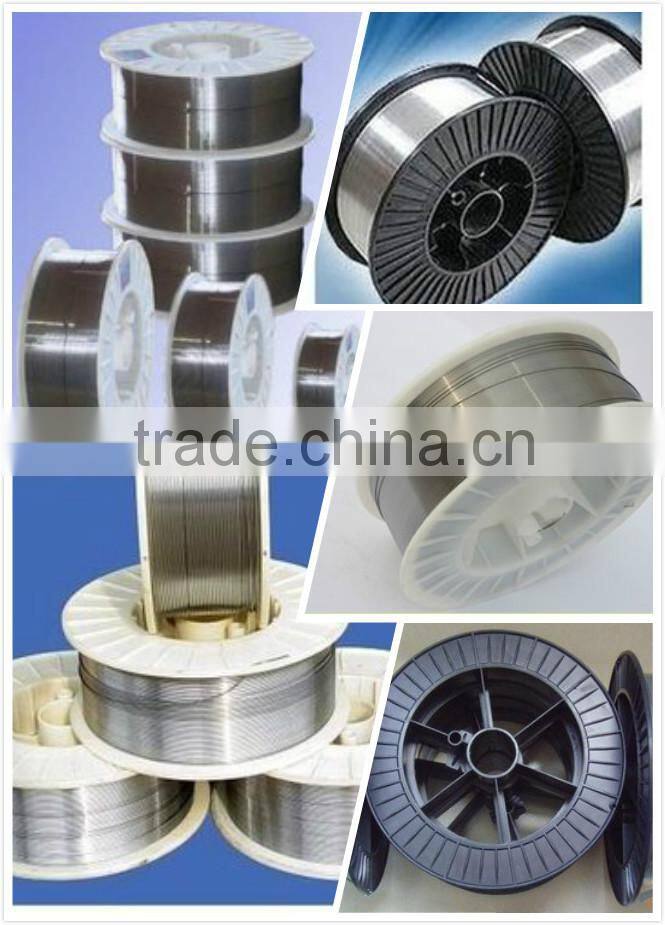

 2,Product Pictures

 Flux cord welding wire E71T-1 Co2 wire



3,Packaging & Shipping

 15kgs/spool, one spool into a carton

 72 cartons per pallet



4,Application

 Flux cord welding wire E71T-1

 Used for welding structures made of carbon steel and low-alloy structural steel with tensile strength higher than  or equal to 490MPa. Most widely used for welding some key structures like shipbuilding, mechanical manufacture, pressure vessels, boilers, petroleum machinery, chemical machinery, hoisting machinery, etc.

5,Company nformation

 Xuzhi company was founded in 1998. After years of development, now the company already had the mainstream business which shows in the next item.

Except the mother company “xuzhi company”, we have other companies were built according to professional led division, intensive management framework. At present the company development direction is to professional industry chain deep direction. Thus be dedicated to research and development, design, manufacture industry professional technology of highly sophisticated products

 6,Our Service

 Xuzhi company product scope:

1,Flux cored wire plant project Consulting (including the new factory process design, old factories technology and equipment reform, improve the production efficiency, the new product formula design and development.)
2,Flux cored wire complete line manufacturing
3,Hardfacing & stainless steel etc special flux cored wire product manufacture
4,Provide high quality2roll-type and 3roll-type of roller die cassette for the following types of customers:

flux cored wire manufacturer

     solid wire manufacturer

    rebar manufacturer
   Metal products related company, such as: nail making, welding nets, wire rope, reinforcement wire, Electric wire and cable, non-ferrous metal products, etc.)

5,Produce various specifications and types of wire drawing machines used in metal products processing and manufacturing
6,Metal products finished product cleaning machine (such as: steel strip cleaning, machinery parts cleaning, glasses cleaning, and more complex shape metal products finished product cleaning)
7,Metal products auxiliary machine manufacturing (such as: various types of pointing machine)
8,Food machinery and pharmaceutical machinery manufacturing
