tungsten carbide inserts wire drawing die

 PCD Wire Drawing Dies

Paramount Die manufactures polycrystalline diamond (PCD) wire drawing dies that can be used for a wide range of drawing applications. PCD dies offer a high resistance to wear and an excellent wire surface finish. The dies can be used in ferrous and non-ferrous wire drawing applications.

Key Benefits:

Available for most wire drawing operations.
Offered in a wide range of diameters.
For use in wet and dry drawing applications.
For use in pressure and non-pressure applications.

Typical application areas:

Copper wire
Aluminum wire
Tungsten wire
Molybdenum wire Stainless steel wire
Coated steel wire
Special alloy and high performance alloy wire
Precious metal wire

 Various other ferrous and non-ferrous metal wire types

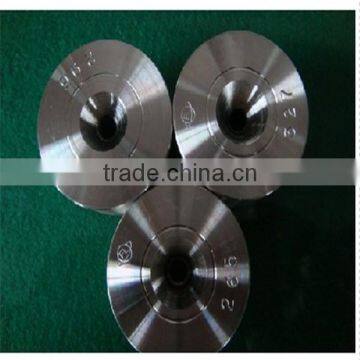

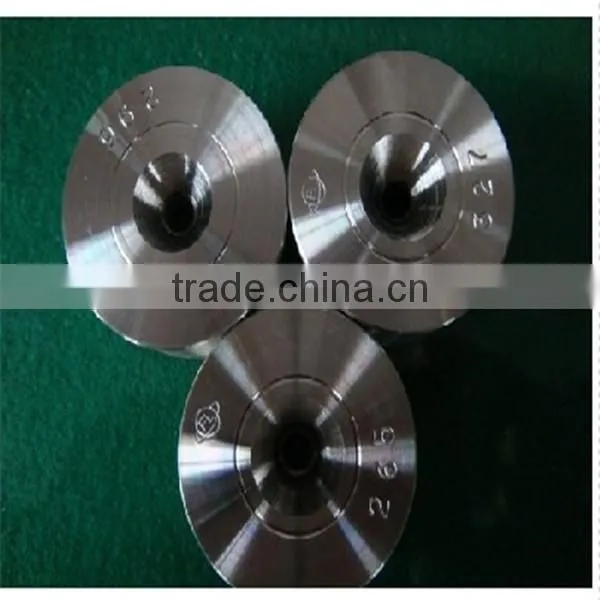

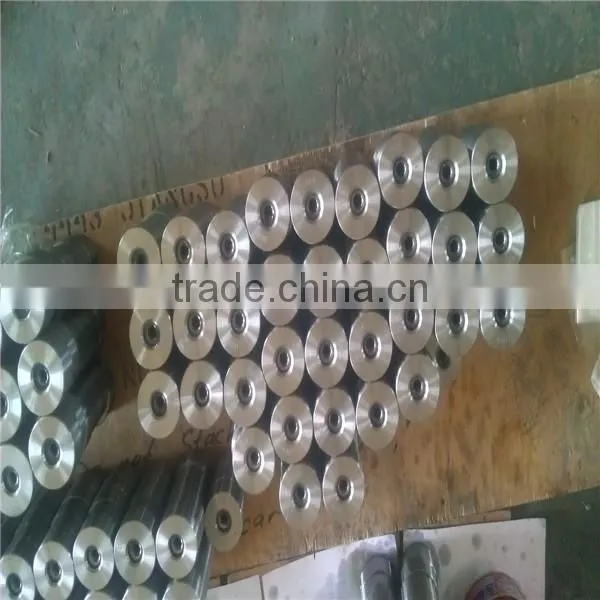

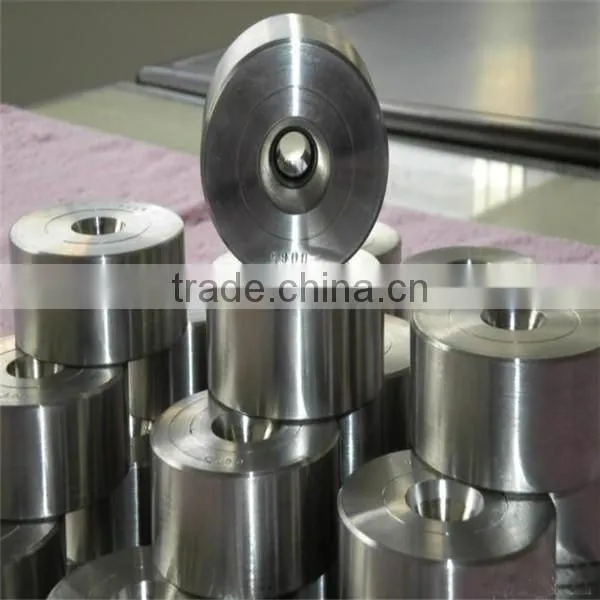

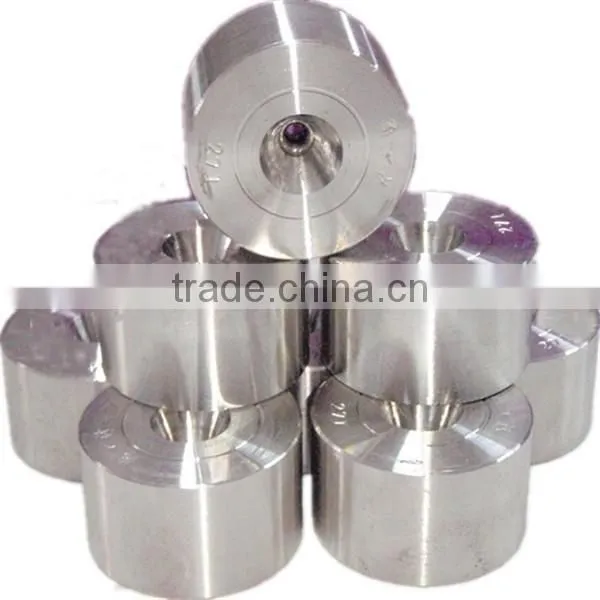

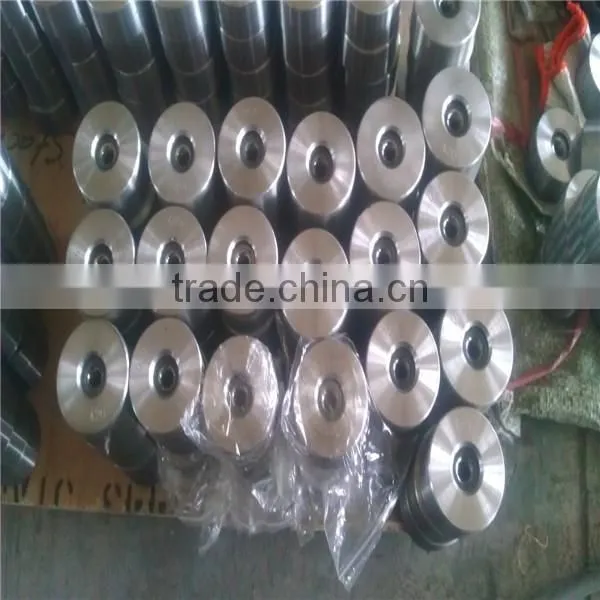

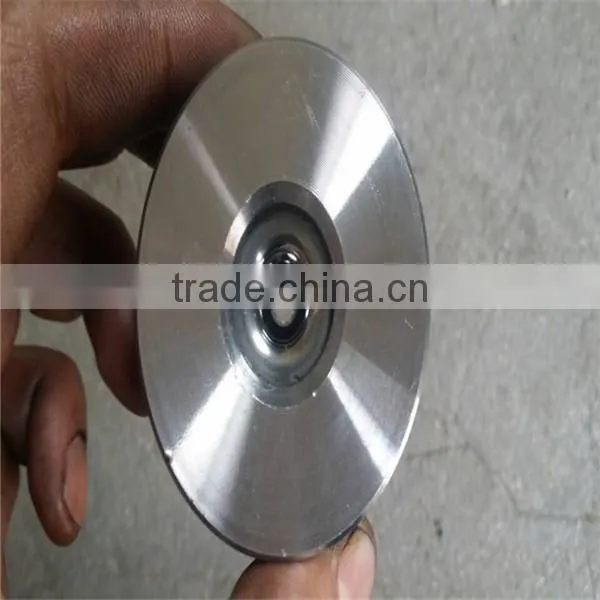

Tungsten Carbide wire drawing dies

Tungsten Carbide wire dies are used to draw ferrous and non-ferrous materials, but normally used in steel wire and bar applications. Our process assures the die better wear resistance and highly polished finish.

Features:
High quality alternative for steel wire and bar

Better wear resistance
Highly polished finish
Fine tolerances
Low cost
Hole diameters: 0.40 - 60.00 mm

Natural diamond wire drawing dies

Accurate die hole, high cleanliness and precise size, so distributed distortion, the minimum wire drawing force and surface quality, this is the best mold, metal wire, such as magnet wire, telephone wire, coated wire , stainless steel wire, etc.

Features:

All kinds of wire standard hole-shaped design is as follows: (Customers can also design their own hole shape)

 carton box and wooden case

 What is the price of your wire drawing dies?

We have a standard price list, but our prices are based on many factors within your control, such as the volume of business you choose to do with us, the quantity of one size you order, the size of the order, urgency of your requirement and any unusual specifications. Therefore, name your price, your size, quantity and specifications and see what can happen to our price list.

What carriers do you use?

UPS, FEDEX, EMS and TNT, DHL are here daily. Various trucking lines deliver to us as well.

What is your typical size tolerance?

Our standard size tolerances vary according to size. In general, the numerical tolerance is tighter for smaller sizes and wider for larger hole sizes. As a percentage of diameter, the opposite is true. The larger hole sizes have a closer tolerance based on percentage of diameter. We also customize tolerances for your specific needs and price constraints.
