High Carbon Steel Wire Drawing Machine Deep Drawing Die
- TIANJIN CHINA
- T/T
You May Like
Product Details
| Place of Origin | Tianjin, China | Brand Name | Tungsten carbide wire drawing dies | |
| Model Number | Tungsten carbide wire drawing dies | Shaping Mode | Die Casting | |
| Product Material | Other, tungsten carbide | Product | Other, For manufacture flux welding wire |
Product Description
High carbon steel wire drawing machine deep drawing die
Deep drawing die
1,Description
Deep drawing die
The wire drawing die/mould is a kind of mould that can get the shape and size required for the cross-sectional area to reduce the cross
sectional area of metal by pulling metal through the mould under the external forces in metal working process.

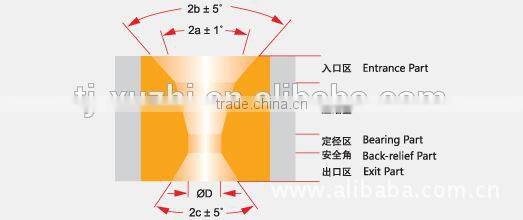

Wire | Hard lines | Soft lines |
| |||
| ||||||
Part Names | Stainless steel | Copper Clad Steel | Tungsten, molybdenum | Copper | Aluminum |
|
| ||||||
Entrance | 80° | 80° | 80° | 80° | 80° |
|
Lubrication angle | 35° | 35° | 35° | 35° | 35° |
|
Compression angle | 14°±2° | 14°±2° | 14°±2° | 14°±2° | 14°±2° |
|
Parallel to the District | 0.2D~0.5D | 0.2D~0.6D | 0.2D~0.8D | 0.2D~0.5D | 0.2D~0.5D |
|
Decompression angle | 25°±5° | 25°±5° | 25°±5° | 25°±5° | 25°±5° |
|
Export | 60° | 60° | 60° | 60° | 60° | |

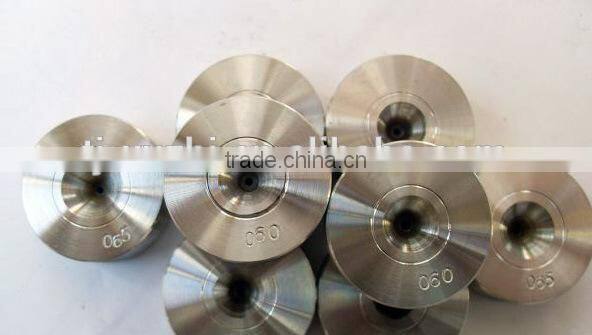

Our PCD wire drawing die adopts advanced material and technology. It can replace natural diamond mold. The result of using is much better than natural diamond. Our PCD wire drawing die has such characteristics: hardness, high wear resistance & thermal conductivity and high mechanical strength and tenacity.
2,Application
Deep drawing die
The wire drawing die/mould is used widely, for example, high precision wire materials used in electron device, radar, television, instrument and aerospace etc., and common tungsten wire, molybdenum wire, stainless steel wire, electric wire and cable, and various alloy wire . Because of the raw material of wire drawing die/mould adopted the natural diamond or synthetic diamonds, it has good wear resistance with long service life.
Deep drawing die
Wooden cases
Deep drawing die
Xuzhi company product scope:
1,Flux cored wire plant project Consulting (including the new factory process design, old factories technology and equipment reform, improve the production efficiency, the new product formula design and development.)
2,Flux cored wire complete line manufacturing
3,Hardfacing & stainless steel etc special flux cored wire product manufacture
4,Provide high quality 2roll-type and 3roll-type of roller die cassette for the following types of customers:
flux cored wire manufacturer
solid wire manufacturer
rebar manufacturer
5,Produce various specifications and types of wire drawing machines used in metal products processing and manufacturing
6,Metal products finished product cleaning machine (such as: steel strip cleaning, machinery parts cleaning, glasses cleaning, and more complex shape metal products finished product cleaning)
7,Metal products auxiliary machine manufacturing (such as: various types of pointing machine,V-type powder mixer,strip slitting machine,argon arc wire butt welder,wire winding machine,drum packaging machine)
8,Potato chips production line
9,Napkin paper production line
Deep drawing die
Xuzhi company was founded in 1998. After years of development, now the company already had the mainstream business which shows in the next item.
Except the mother company “xuzhi company”, we have other companies were built according to professional led division, intensive management framework. At present the company development direction is to professional industry chain deep direction. Thus be dedicated to research and development, design.Now TIANJIN THREE WATER is the export company serviced for xuzhi.
Deep drawing die
