Home > Products > Welding materials > Welding Wire Plastic Spool D300/D270,free Sample Good Price
Welding Wire Plastic Spool D300/D270,free Sample Good Price
- XINGANG CHINA
- T/T
You May Like
Product Details
| Place of Origin | Tianjin, China | Brand Name | X & Z Plastic spool for welding wire | |
| Model Number | D300/D270 | Material | Other, Plastic | |
| Diameter | D300/D270 | Melting Point | N/A | |
| Weight | For welding wire | Application | For welding wire | |
| Flux Content | standard |
Product Description

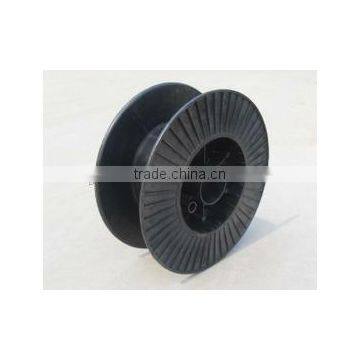

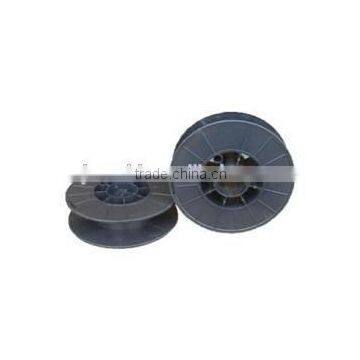

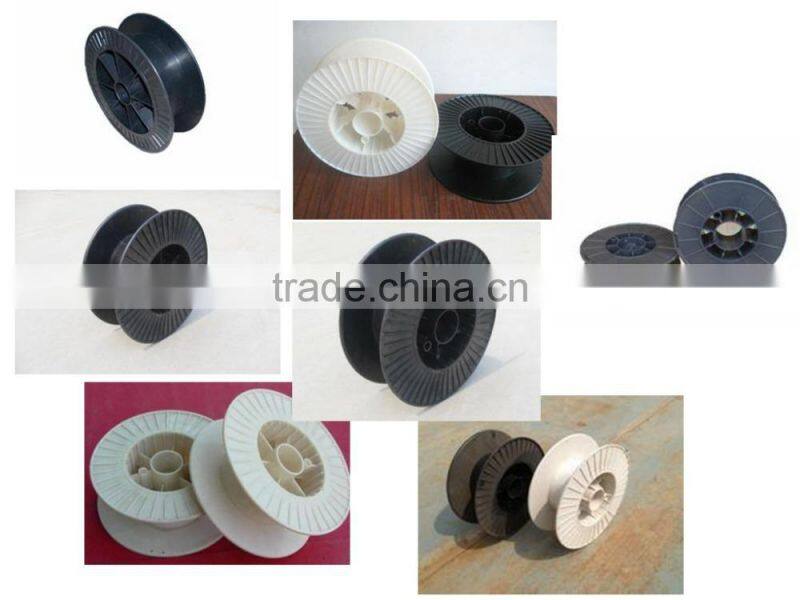

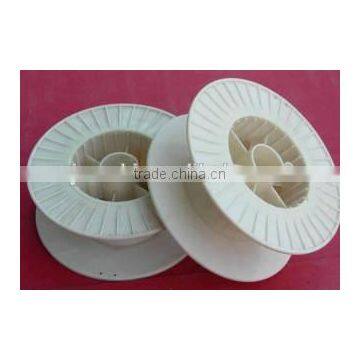

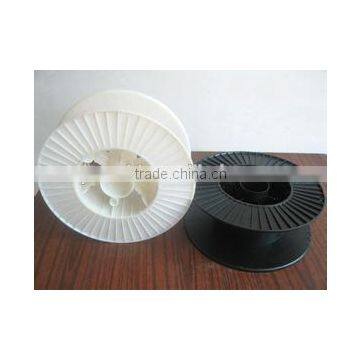

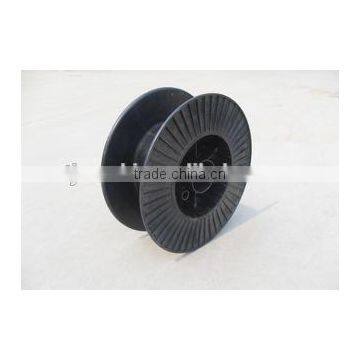

Welding wire plastic spool D300/D270
dimension |
| mm |
flange OD | d1 | 500 |
barrel OD | d2 | 250 |
inner width | L2 | 250 |
overall width | L1 | 300 |
centre hole dia. | h | 56 |
flange thickness | T | 20 |
material | Beige ABS ROHS
| |
structure | Assembled with screw | |
| Model | D1 Flange od | D2 Barrel od | L2 Traverse widht | L1 Overall height | h Center-hole diameter | T Flange thickness | Material |
| 220 | 220 | 110 | 160 | 190 | 37 | 15 | ABS |
| 300A | 300 | 130 | 130 | 160 | 25-40 | 15 | ABS |
| 300B | 300 | 160 | 130 | 160 | 25-40 | 15 | ABS |
| 300C | 300 | 180 | 170 | 200 | 100 | 15 | ABS |
| 300D | 300 | 130 | 130 | 160 | 32 | 15 | ABS |
| 400A | 400 | 200 | 120/250 | 155/300 | 56 | 16 | ABS |
| 400B | 400 | 200 | 120/250 | 155/300 | 56 | 16 | ABS |
| 400C | 400 | 200 | 250 | 300 | 56 | 16 | ABS |
| 400D | 400 | 170 | 245 | 285 | 50 | 20 | ABS/PS |
| 450 | 450 | 200 | 250/265 | 300/315 | 56 | 25 | ABS |
| 500A | 500 | 250 | 250 | 300 | 56-127 | 20 | ABS |
| 500B | 500 | 250 | 250 | 300 | 56-127 | 20 | ABS |
| 500C | 500 | 250 | 250 | 300 | 56-127 | 20 | ABS |
| 500D | 500 | 250 | 250/315 | 300/375 | 56-127 | 25 | ABS |
| 530 | 530 | 250 | 250/315 | 300/375 | 56 | 21 | ABS |
| 600 | 600 | 300 | 345 | 395 | 56 | 27.5 | ABS |
| 630A | 630 | 315 | 315 | 375 | 56 | 25 | ABS |
| 630B | 630 | 315 | 415 | 475 | 56 | 25 | ABS |
| 800A | 800 | 400 | 500 | 600 | 80 | 35 | ABS |
| 800B | 800 | 400 | 500 | 600 | 80 | 35 | ABS |
| 800C | 800 | 400 | 500 | 600 | 127 | 35 | ABS |
| 1000 | 1000 | 500 | 630 | 750 | 56-127 | 40 | ABS |
Plastic woven bags or depends on customers
Xuzhi company product scope:
(1) Flux cored wire plant project Consulting (including the new factory process design, old factories technology and equipment reform, improve the production efficiency, the new product formula design and development.)
(2) Flux cored wire complete line manufacturing
(3) Hardfacing & stainless steel etc special flux cored wire product manufacture
(4) Provide high quality2roll-type and 3roll-type of roller die cassette for the following types of customers:
1) flux cored wire manufacturer
2) solid wire manufacturer
3) rebar manufacturer
4) Metal products related company, such as: nail making, welding nets, wire rope, reinforcement wire, Electric wire and cable, non-ferrous metal products, etc.)
(5) Produce various specifications and types of wire drawing machines used in metal products processing and manufacturing
(6) Metal products finished product cleaning machine (such as: steel strip cleaning, machinery parts cleaning, glasses cleaning, and more complex shape metal products finished product cleaning)
(7) Metal products auxiliary machine manufacturing (such as: various types of pointing machine)
(8) Food machinery and pharmaceutical machinery manufacturing
Xuzhi company was founded in 1998. After years of development, now the company already had the mainstream business which shows in the next item.
Except the mother company “xuzhi company”, we have other companies were built according to professional led division, intensive management framework. At present the company development direction is to professional industry chain deep direction. Thus be dedicated to research and development, design, manufacture industry professional technology of highly sophisticated products
