Welding electrode e7018
Welding electrode e7018 introduction
E7018 is a kind of carbon steel electrode with iron powder low-hydrogen natrium type coating. DCRP (Direct Current Reversed Polarity). All-position welding. The
deposition efficiency is higher due to the iron powder in the coating. It has stable arc, fewer spatters, good slag detachability and beautiful appearance of weld. The deposited metal has excellent mechanical properties.
Usage:
Used for welding carbon and low-alloy steel structures, such as 16Mn, etc.
Chemical Composition of Deposited Metal (%)
Chemical Composition | C | Mn | Si | S | P | Ni | Mo | Cr | V |
Guarantee Value | ≤0.12 | ≤1.60 | ≤0.75 | ≤0.035 | ≤0.040 | ≤0.30 | ≤0.30 | ≤0.20 | ≤0.08 |
Test Item | Rm(MPa) | ReL(Mpa) | A(%) | KV2(J) | |
Guarantee Value | ≥490 | ≥400 | ≥22 | ≥27(-30℃) | |
General Result | General Result | 520~580 | ≥410 | 24~30 |
|
Diffusible Hydrogen Content in Deposited Metal: ≤8.0ml/100g(Glycerine Hydrogen Test)
X-ray Radiographic Inspection: Ⅰ Degree
Reference Current ( DC+)
Electrode Diameter(mm) | φ2.5 | φ3.2 | φ4.0 | φ5.0 |
Welding Current (A) | 60~100 | 80~140 | 110~210 | 160~230 |
Welding position:
Instructions:
1.The electrodes must be baked under 300~350℃ for an hour before welding and used as soon as baking is completed.
2.The stains on the work pieces, such as oil stains, rust, moisture, etc., must be cleared away before welding.
3.When welding, operation with short arc and stringer bead is suitable.
Welding electrode e7018 packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request.
Welding electrode e7018
Samples:
Supply you 1-2kg welding electrode free of charge to test the quality , Postage will be on the customer’s charge. But postage could be deducted from the first order.
Inspection:
Full-Inspection before delivery. Third party inspection: BV SGS CCIC COC CIQ all accepted .
Information Needed to Get a Quotation:
Model, Diameter, Packing and Quantity, such as welding electrode E7018 3.2mm, 5kgs/box,21 tons
How to place order?
Welding electrode e7018 manufacturer
welding electrode e7018 manufacturning process

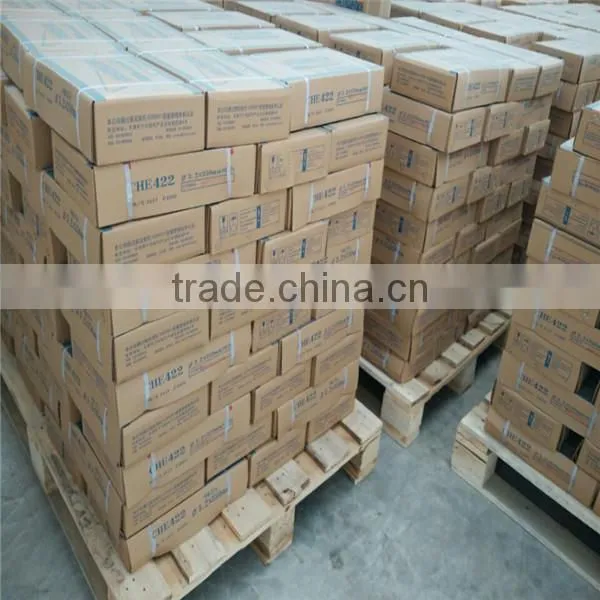

Welding electrode e7018 storehouse
Welding electrode e7018
1. Are samples available ?
Answer:We are happy to provide free samples to you after you accept
our quotation and really want to cooperate with us.
2. Is OEM available?
Answer:Yes,because we usually do it like that.
3. What's your company normal payment terms?
Answer:Usually we accept T/T,30%T/T prepaid before production,70% T/T in 3 daysafter you see the copy of BL. If you are one real buyer,we also can accept L/C at
sight.
4. How many days it will take you to produce mass production for us?
Answer:Usually it takes about 7to15 days ,it also depends on the
quantity and production seasons.
5.Where is your factory located? Can I visit there?
Answer:Our factory is located in Tianjin City, China, near to Beijing. You are warmly welcomed to visit us!
Your favorable inquiry shall be highly appriciated, my friend!
