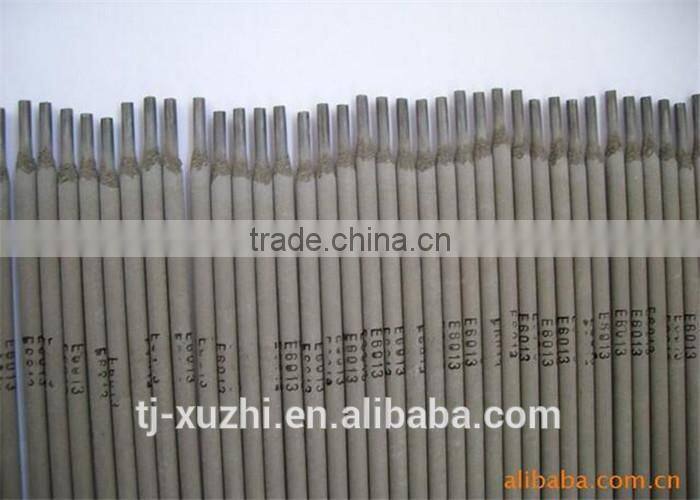

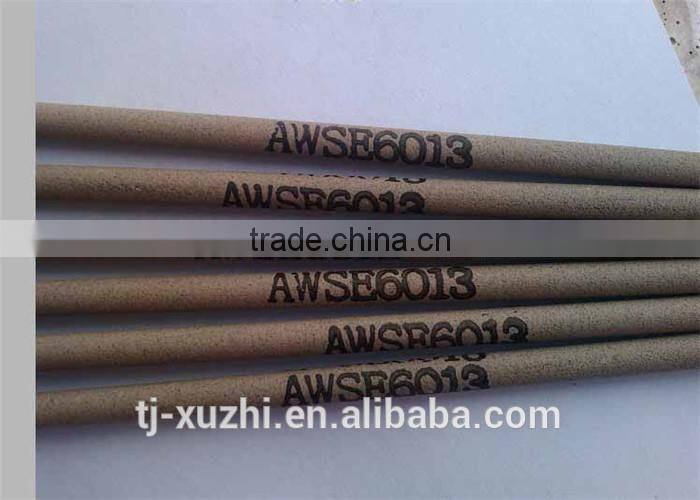

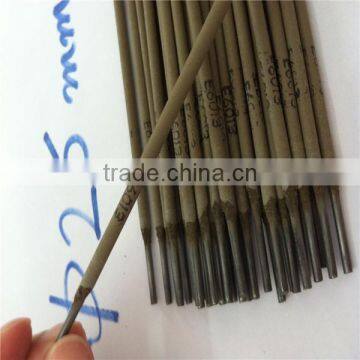

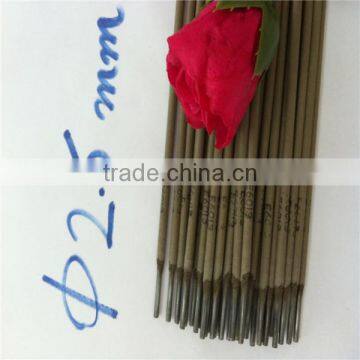

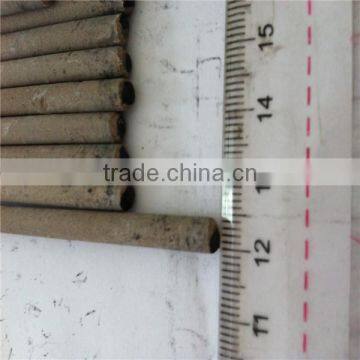

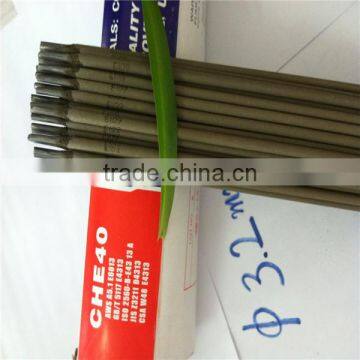

Welding electrode aws e6013 showroom
Welding electrode aws e6013 introduction: E6013 is a kind of carbon steel electrode with titania type coating specially used for vertical downward welding. AC/DC. All-position welding. It has excellent operating performance, easy ignition and reignition, stable arc, beautiful appearance of weld and good slag detachability.
Usage: Suitable for welding general carbon steel and zinc-coated steel sheets for ships, especially suitable for vertical downward welding and intermittent welding on thin plates.
Chemical Composition of Deposited Metal (%)
Chemical Composition | C | Mn | Si | S | P |
Guarantee Value | ≤0.12 | 0.30~0.60 | ≤0.35 | ≤0.035 | ≤0.040 |
Test Item | Rm(MPa) | ReL(Mpa) | A(%) | KV2(J) | KV2(J) |
Guarantee Value | ≥420 | ≥330 | ≥17 | ——(normal temperature) | ——(0℃) |
General Result | 460~510 | ≥340 | 18~25 | 50~80(normal temperature) | ≥47(0℃) |
X-ray Radiographic Inspection: ⅡDegree
Reference Current (AC, DC)
Electrode Diameter(mm) | φ2.0 | φ2.5 | φ3.2 | φ4.0 | φ5.0 |
Welding Current (A) | 40~70 | 50~90 | 90~130 | 150~210 | 170~230 |

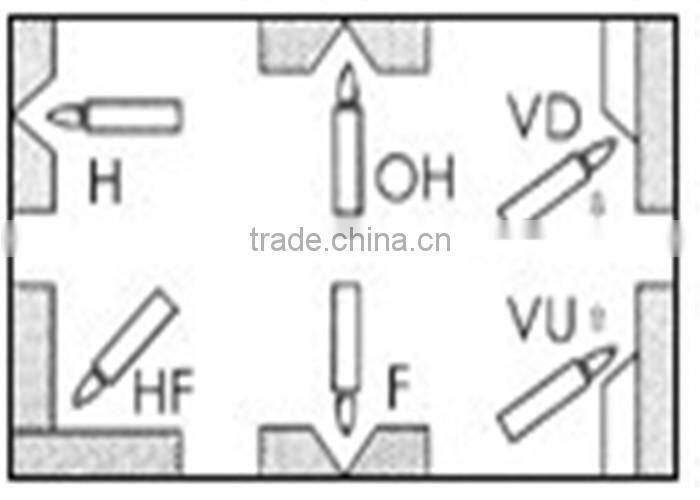

Welding position:
Instructions:
1.The electrodes must be baked under 300~350℃ for an hour before welding and used as soon as baking is completed.
2.The stains on the work pieces, such as oil stains, rust, moisture, etc., must be cleared away before welding.
3.When welding, operation with short arc and stringer bead is suitable.

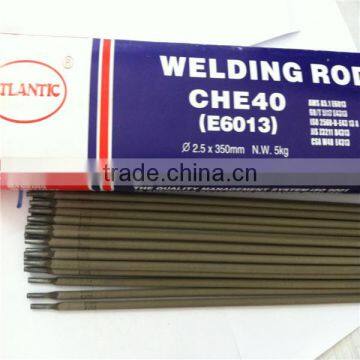

Welding electrode aws e6013 packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request.
Welding electrode aws e6013
Samples:
Supply you 1-2kg welding electrode free of charge to test the quality , Postage will be on the customer’s charge. But postage could be deducted from the first order.
Inspection:
Full-Inspection before delivery. Third party inspection: BV SGS CCIC COC CIQ all accepted .
Information Needed to Get a Quotation:
Model, Diameter, Packing and Quantity, such as welding electrode E6013 3.2mm, 5kgs/box,
21 tons
How to place order?
Welding electrode aws e6013 manufacturning process
Welding electrode aws e6013
1. Are samples available ?
Answer:We are happy to provide free samples to you after you accept our quotation and really
want to cooperate with us.
2. Is OEM available?
Answer:Yes,because we usually do it like that.
3. What's your company normal payment terms?
Answer:Usually we accept T/T,30%T/T prepaid before production,70% T/T in 3 days after you
see the copy of BL. If you are one real buyer ,we also can accept L/C at sight.
4. How many days it will take you to produce mass production for us?
Answer:Usually it takes about 7-15 days ,it also depends on the quantity and production seasons.

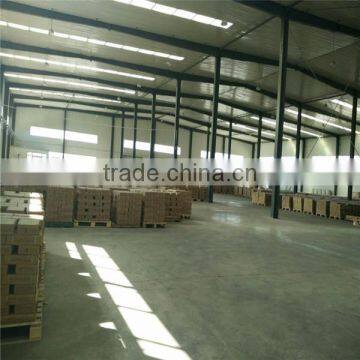

5.Where is your factory located? Can I visit there?
Answer:Our factory is located in Tianjin City, China, near to Beijing. You are warmly welcomed to visit us!
Your favorable inquiry shall be highly appriciated, my friend!
