Factory sale carbon welding electrode e7016 e6013 e7018
- 1000 Ton / Tons per Month
- TIANJIN
- T/T D/P D/A Credit Card
Product Details
| Place of Origin: | Tianjin, China | Brand Name: | TW | Model Number: | AWS E7016 |
| Material: | Other, carbon steel | Length: | 300mm, 350mm, 400mm, 450mm, 300mm,350mm,400mm, 450mm | Operating Current: | AC DC |
| Welding Current: | 40~70 50~90 90~130 150~210 170~230 | Operating Temperature: | normal | Diameter: | 2.0mm/2.5mm/3.2mm/4.0mm/5.0mm |
| Application: | vertical downward welding |
Product Description

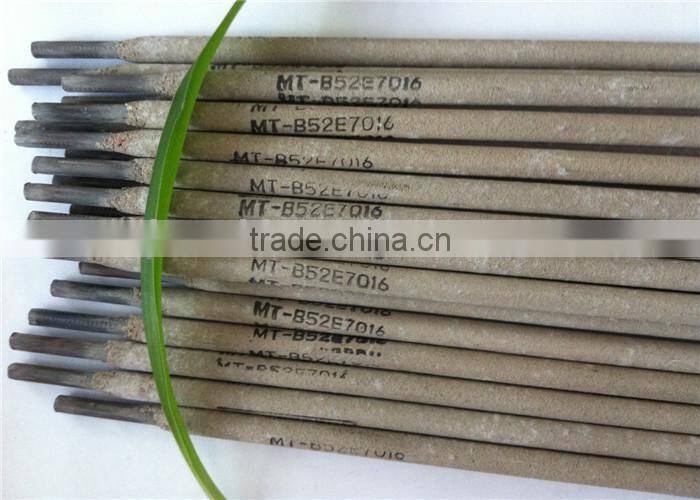

Carbon welding electrode e7016
Carbon welding electrode e7016 introduction:
It is a kind of carbon steel electrode with titania type coating specially used for vertical downward welding. AC/DC. All-position welding. It has excellent operating performance, easy ignition and reignition, stable arc, beautiful appearance of weld and good slag detachability.
Usage:
Suitable for welding general carbon steel and zinc-coated steel sheets for ships, especially suitable for vertical downward welding and intermittent welding on thin plates.
Chemical Composition of Deposited Metal (%)
Chemical Composition | C | Mn | Si | S | P |
Guarantee Value | ≤0.12 | 0.30~0.60 | ≤0.35 | ≤0.035 | ≤0.040 |
Test Item | Rm(MPa) | ReL(Mpa) | A(%) | KV2(J) | KV2(J) |
Guarantee Value | ≥420 | ≥330 | ≥17 | ——(normal temperature) | ——(0℃) |
General Result | 460~510 | ≥340 | 18~25 | 50~80(normal temperature) | ≥47(0℃) |
X-ray Radiographic Inspection: ⅡDegree
Reference Current (AC, DC)
Electrode Diameter(mm) | φ2.0 | φ2.5 | φ3.2 | φ4.0 | φ5.0 |
Welding Current (A) | 40~70 | 50~90 | 90~130 | 150~210 | 170~230 |
Welding position:
Instructions:
1.The electrodes must be baked under 300~350℃ for an hour before welding and used as soon as baking is completed.
2.The stains on the work pieces, such as oil stains, rust, moisture, etc., must be cleared away before welding.
3.When welding, operation with short arc and stringer bead is suitable.

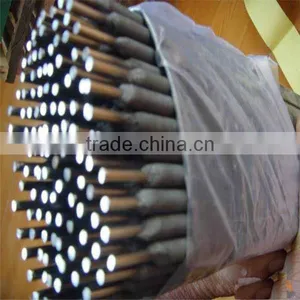

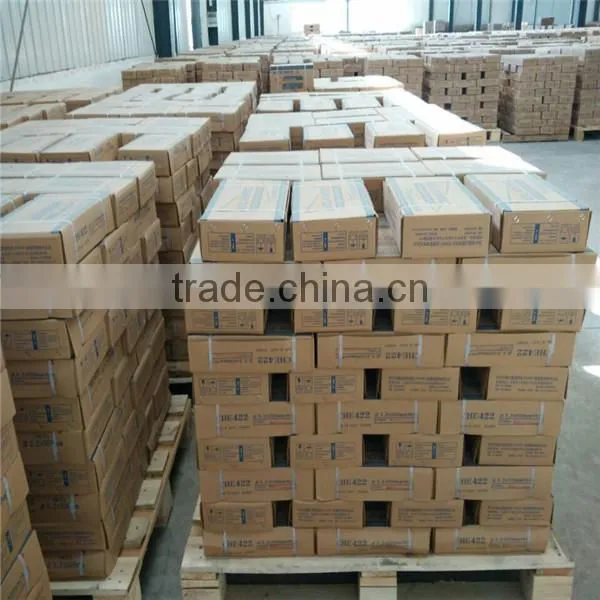

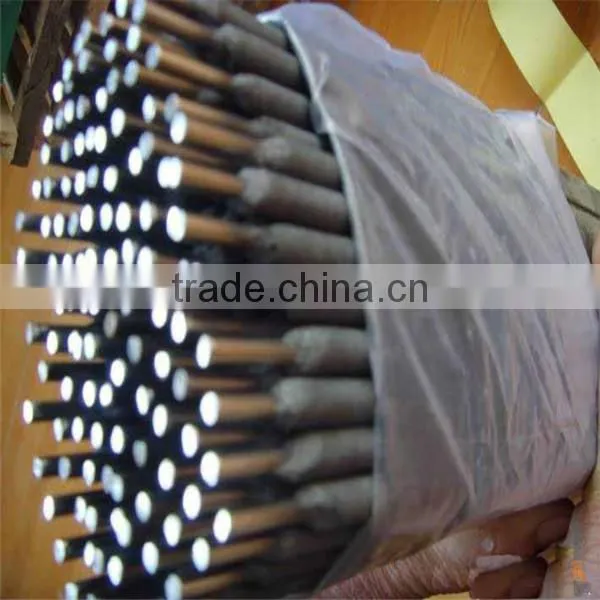

Carbon welding electrode e7016 packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request.
Carbon welding electrode e7016
Samples:
Supply you 1-2kg welding electrode free of charge to test the quality , Postage will be on the customer’s charge. But postage could be deducted from the first order.
Inspection:
Full-Inspection before delivery. Third party inspection: BV SGS CCIC COC CIQ all accepted .
Information Needed to Get a Quotation:
Model, Diameter, Packing and Quantity, such as welding electrode E6013 3.2mm, 5kgs/box,
21 tons
How to place order?
Carbon welding electrode e7016 manufacturer
Carbon welding electrode e7016 manufacturning process
Carbon welding electrode e7016
1. Are samples available ?
Answer:We are happy to provide free samples to you after you accept our quotation and really
want to cooperate with us.
2. Is OEM available?
Answer:Yes,because we usually do it like that.
3. What's your company normal payment terms?
Answer:Usually we accept T/T,30%T/T prepaid before production,70% T/T in 3 days after
you see the copy of BL. If you are one real buyer ,we also can accept L/C at sight.
4. How many days it will take you to produce mass production for us?
Answer:Usually it takes about 7to15 days ,it also depends on the quantity and production
seasons.
5.Where is your factory located? Can I visit there?
Answer:Our factory is located in Tianjin City, China, near to Beijing. You are warmly welcomed to visit us!
Your favorable inquiry shall be highly appriciated, my friend!
