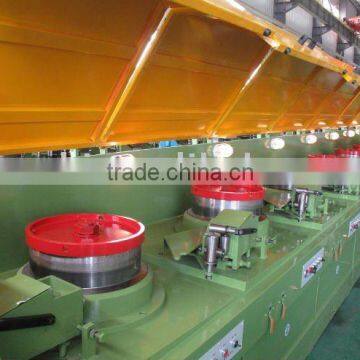

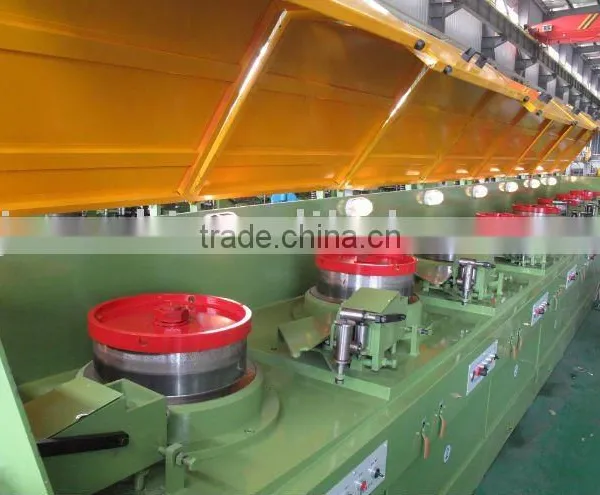

Wire Drawing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
xz
Model Number:
LZ8/400
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ultrasonic Cleaning Machine for StripUS$ 1,000 - 5,000MOQ: 1 Set -
Industrial Cleaning MachineNegotiableMOQ: 1 Set
-
Industrial Ultrasonic CleanerNegotiableMOQ: 1 Set
-
Unltrasonic Cleaning MachineNegotiableMOQ: 1 Set
-
Spool D200 D270 D300 Active Pay Off Steel Wire Winding MachineUS$ 24,980 - 27,980MOQ: 1 Set
Place of Origin
Tianjin, China
Brand Name
xz
Model Number
LZ8/400
Specifications
1) 6-head wire drawing machine2) Tension device
3) Coiler
4) Including item Roller die
(1)Wire material :Flux –core wire
(2)Diameter of inlet wire:Φ4.1mm
(3)Finished wire spec.:Φ2.8mm
(4)Max inlet wire strength:≤700Mpa
(5)Max. diameter of inlet wire:φ4.8mm
(6)Min. diameter of outgoing wire:φ2.8mm
(7)Max drawing speed:≤9m/s (in the condition of using the seller-providing raw material and lubricant and with good cooling situation)
(8) Water consumption and pressure:3m3/h Water pressure ≥0.3Mpa
(9)Air consumption and pressure:0.6m3/h Air pressure ≥0.4Mpa
(10)Motor
a. Host machine:15kwAC variable frequency motor (the first block is 15kw, others each block is 11kw)
b. Wire coiler:15kwAC variable frequency motor
Noise of one machine:≤81db
