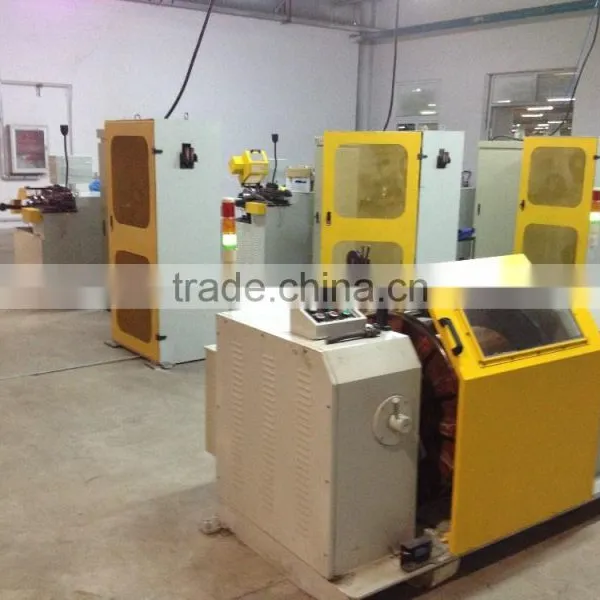

Help CenterSpool D200 D270 D300 Active Pay Off Steel Wire Winding Machine
Related Products
-
Active Pay Off Precision Welding Wire Winding MachineUS$ 24,980 - 27,980MOQ: 1 Set -
Mig Welding Wire Pail Packing MachineNegotiableMOQ: 1 Set
-
Weld Wire Flux Cored Wire Pointing MachineUS$ 7,500 - 8,500MOQ: 1 Set
-
Pointing Machine for WireNegotiableMOQ: 1 Set
-
High Carbon Steel Wire Pointing MachineNegotiableMOQ: 1 Set
1. Outline
The unit uses frequency conversion, servo, fuzzy control theory and other integrated technologies. The unit has such features as active wire pay off, automatically adjust tension, stable line speed and diameter self-adapt in its deviation. Before operating andmaintenance, be sure to read the operating manual of the unit completely, carefully. Strictly follow the guidance of the operating manual to ensure the operator to obtain the best performance of the unit, the effective protection of their personal safety, and avoid any dangerous accidents.
Technical parameters
1. Suitable for: welding wire and other precision layer-winding-required metal wire;
2. Maximum diameter: Φ2.0mm;
3. Minimum diameter: Φ0.8mm;
4. Maximum winding speed: 23.0m / s;
5. Specification of the wire bobbin: (can be customized, the user should provide the specific drawing);
6. The pay off machine has the function of winding displacement automatically when reverse the wire.
7. Spool type: D200,D270,D300;
8. The maximum weight of each take-up spool: 5kg,15kg,20kg;
9. Wire winding type: Precision layer winding;
10. Wire pay off mode: active pay off ;
11. Brake mode: pneumatic brake;
12. Take-up motor specification: 5.5KW, frequency conversion motor;
13. The pay off motor specification: 18.5KW, frequency conversion motor;
Note: Φ760 × 500 bobbin required 37.0KW frequency conversion motor
14. The main power supply: 380V,50HZ (three-phase five-wire);
15. The gas source standard: 0.45~0.7Mpa;
