Flux Cored Wire Drawing Machine Made in China

Specifications

7-head wire drawing machine (XZ-YL-6/450)

• Main technical parameter

(Including the host machine 1 piece, coiler 1 piece, decoiler 1 piece, tension device 1 piece)

(1)Wire material:Flux –core wire

(2)Diameter of inlet wire:Φ5.1mm~Φ4.1mm

(3)Finished wire spec.:Φ2.25mm~Φ2.8mm (semi-finished flux core wire)

(4)Max inlet wire strength:≤700Mpa;

(5)Max. diameter of inlet wire:φ4.8mm;

(6)Min. diameter of outgoing wire:φ2.8mm;

(7)Max drawing speed:≤9m/s(in the condition of using the seller-providing raw material and lubricant and with good cooling situation)

(8) Water consumption and pressure:3m³/h Water pressure≥0.3Mpa;

(9)Air consumption and pressure:0.6m³/h Air pressure≥0.4Mpa;

(10)Motor

1. Host machine:15kwAC variable frequency motor (the first block is 15kw, others each block is 11kw)
2. Wire coiler:15kwAC variable frequency motor SIEMENS

   Noise of one machine:≤81db

9-head wire drawing machine (XZ-YL-9/400)

• Main technical parameter

(Including the host machine 1 piece, coiler 1 piece, decoiler 1 piece, tension device 1 piece)

(1) Wire material:Flux core wire

(2) Diameter of inlet wire:Φ2.05mm~Φ2.8mm

(3) Finished wire spec. Φ1.2mm~Φ1.6mm

(4) Max inlet wire intensity:≤700Mpa;

(5) Max. diameter of inlet wire:φ2.8mm;;

(6) Min. diameter of outgoing wire:φ1.2mm;

(7) Max drawing speed :≤18m/s;(in the condition of using the seller-providing raw material and lubricant and with good cooling situation)

(8) Water consumption and pressure::3m³/h            Water pressure ≥0.3Mpa;

(9) Air consumption and pressure:0.6m³/h Air pressure ≥0.4Mpa;

(10) Motor:

a. Host machine: 15kwAC variable frequency motor;(the first block is 15kw;the others each block is 11kw )

b. Wire receiver:15kwAC variable frequency motor;

Noise of single unit:≤81db

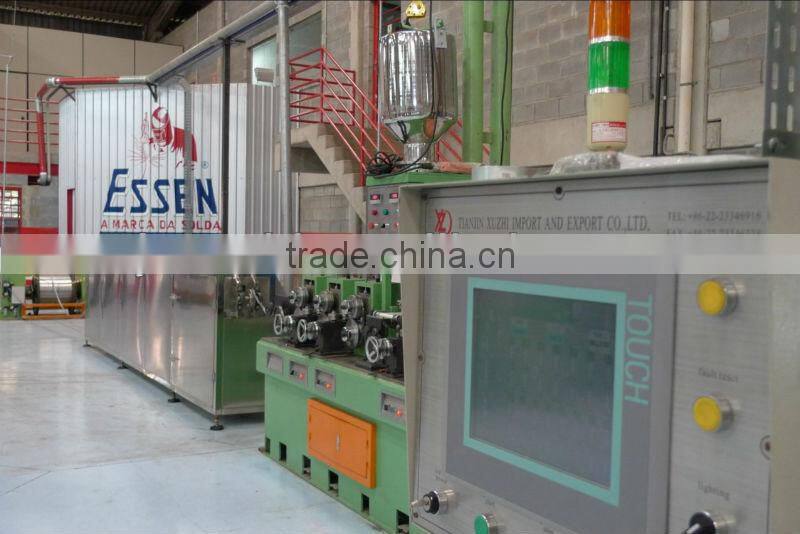

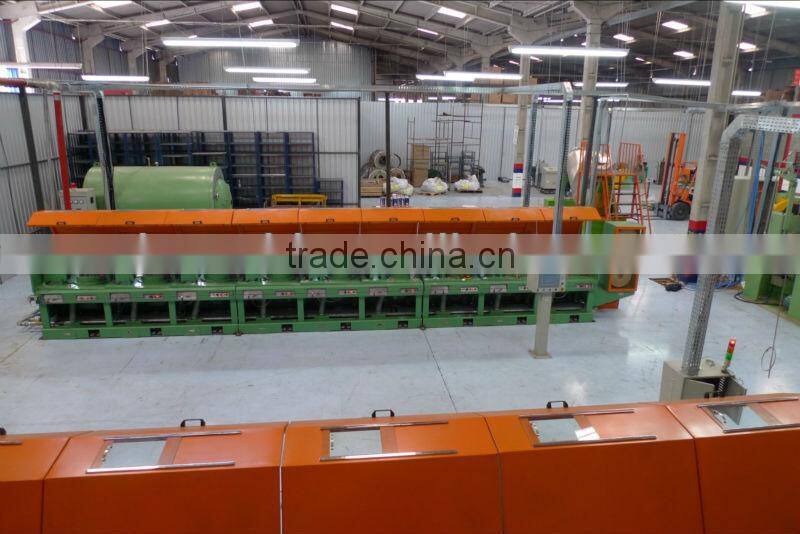

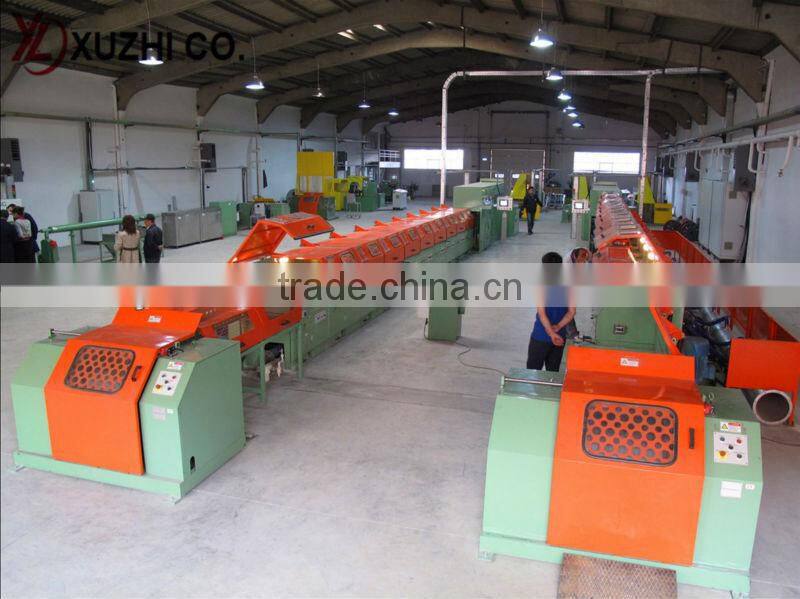

  Flux corede wire production line working plant:

exhibition abroad:
