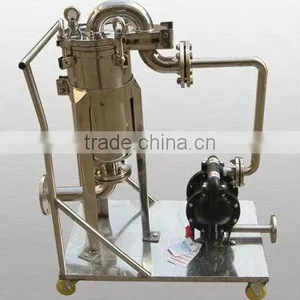

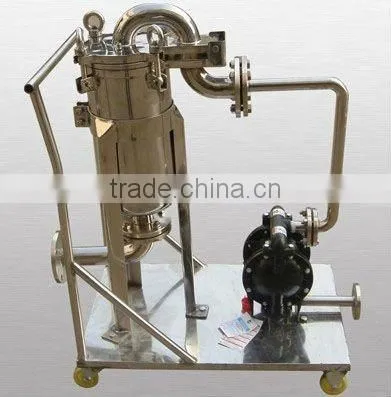

New design ISO 9001 certification sanitary industrial batch movable bag filter housing
Technical specification
1.Material:SUS304,SUS316L or carbon steel
2.Design vessel pressure :0.1-1.0Mpa
3.Operate temperature:-20-130°C
4.Filtering accuracy: 0.1-20um
5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag
6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter
7.Connection vessel:GB,ANSI,JIS,and other flange
8.Inlet/Out Dimension: 1",1.5",2",2.5",3",3.5",4"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,echanical
Polishing ,Ra≤0.5μm
10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry,
Electronic Industry and So On.
Bag filter characteristics
1. A unique filter design techniques, to be effective in preventing filter bag filter
trap into the basket, ensure 100% without spills.
2. Basket laid by the computer, the high-intensity laser drilling stainless steel
plate, with rarely fixtures materials after molding, polishing,.
3. Compact size and reasonable. Installation and operation is simple and
convenient , the site is smaller.
4. Filtration with high precision, it applies to any suspension or fine
particulate material, the filters range from 1~800 micron;
5. Dealing with a larger flow filtration unit area, the smaller filtration resistance,
high filtration efficiency. Function of one filter bag is 5-10 times than filter
core of the same type ,which can greatly reduce costs. Flow design can
meet the requirements of 1~500m3/h, down low the manufacture cost;
6. A wide range of uses, can be used for coarse filtration, middle Filter or
accuracy filter; It comes to lower investment cost, long life and low cost
when achieve the same results in the circumstances compared with
Pre-filter water filtration and precision machines and other equipment
7. In the same rational structure and operation of low-cost, effectiveness and
capacity of the filter, Bag filters takes lower price than foreign imports.
Main Technical Parameters
|
Modell Specification |
DL 1-1 |
DL 1-2 |
DL 1-3 |
DL 1-4 |
DL 3-2 |
DL 4-2 |
DL 5-2 |
DL 6-2 |
DL 8-2 |
DL 10-2 |
DL 12-2 |
DL 15-2 |
DL 21-2 |
Bag Quantity (pcs) |
1 |
1 |
1 |
1 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
15 |
21 |
Filter Area (m2) |
0.5 |
0.5 |
0.5 |
0.5 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
6 |
7.5 |
10.5 |
Max Flow Rate (T/H) |
15 |
30 |
3 |
5 |
90 |
120 |
150 |
180 |
240 |
300 |
360 |
450 |
630 |
Operationg Date (Mpa) |
0.1-1 |
0.1-1 |
0.1-1 |
0.1-1 |
0.1-1 |
0.1-1 |
0.1-1 |
0.1-1 |
0.1-1 |
0.1-1 |
0.1-1 |
0.1-1 |
0.1-1 |
Max Temperture (°C ) |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
