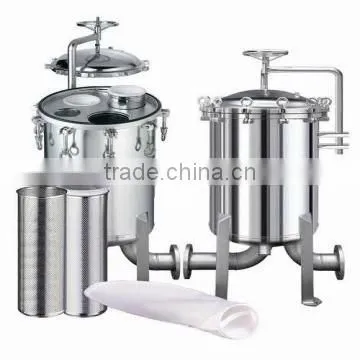

Professional manufacture SUS304 SUS316L industrial-grade precision mirror polish bag filter housing

 Product Description

Jhenten's Liquid Bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as

water, beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,#3,#4 size bags

 or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big,

achieving more efficient filtering result;Eye Bolt Closure System-The user friendly,cost effective bag filter housing for high volume,multiple applications and processes.

The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.

Technical specification

1.Material:SUS304,SUS316L or carbon steel

2.Design vessel pressure :0.6-1.0Mpa

3.Operate temperature:-20-130°C

4.Filtering accuracy: 0.1-20um

5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag

6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter

7.Connection vessel:GB,ANSI,JIS,and other flange

8.Inlet/Out Dimension: 1",1.5",2",2.5",3",3.5",4"

9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,Sand Blashed

,10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry,

   Electronic Industry and So On.

Bag filter characteristics

1. A unique filter design techniques, to be effective in preventing filter bag filter

   trap into the basket, ensure 100% without spills.

2. Basket laid by the computer, the high-intensity laser drilling stainless steel

   plate, with rarely fixtures materials after molding, polishing,.

3. Compact size and reasonable. Installation and operation is simple and

   convenient , the site is smaller.

4. Filtration with high precision, it applies to any suspension or fine

  particulate material, the filters range from 1~800 micron;

5. Dealing with a larger flow filtration unit area, the smaller filtration resistance,

  high filtration efficiency. Function of one filter bag is 5-10 times than filter

  core of the same type ,which can greatly reduce costs. Flow design can

  meet the requirements of 1~500m3/h, down low the manufacture cost;

6. A wide range of uses, can be used for coarse filtration, middle Filter or

   accuracy filter; It comes to lower investment cost, long life and low cost

  when achieve the same results in the circumstances compared with

  Pre-filter water filtration and precision machines and other equipment

7. In the same rational structure and operation of low-cost, effectiveness and

   capacity of the filter, Bag filters takes lower price than foreign imports.

Jhen Ten carries on traditional Japanese production skills and latest Japanese industrial technology to produce filtration products and all kinds process machinery.
In addition to the introduction of new manufacturing methods and the purchase of advanced welding equipment, we are also dedicated to researching the improvement of quality, function and usage life of our products. We have been meeting global demand of high quality &technical support to our clients.Our products cover from all kinds sanitary filter,cartridge filter, bag filter ,mixing tank ,storage tank etc,which have been applied into fields of pharmacy, food & beverage, biological engineering, lab solution laboratories, mineral water, liquor and cosmetics.

No matter the functions, data presentation, material use, welding techniques, QC, or the look of our products have gone through careful design and are strictly comply with ISO9001 and CE standard system.Besides We have obtained the sanitary license and honour of high quality&honesty from authority.
