Sideline Bag Filter Housing

Specifications

Bag Filter Housing Features

Top inlet with liquid flow through cover
Sizes for #01 single or #02 double-length filter bags
Cover positively seals filter bag

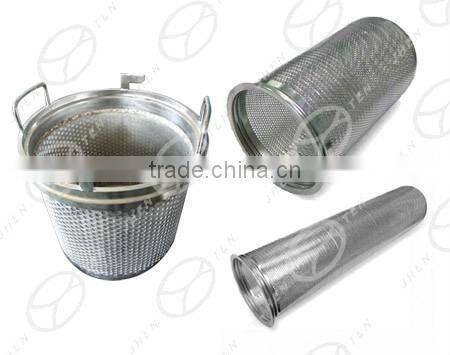

Stainless steel basket
Flanged connections or other type
Maximum operating pressure of 150 psi
Maximum operating temperature of 400F with Viton® seals
Domed cover with swing bolts
Mounting legs to adjust vessel height
Type 304 or 316 stainless steel, or carbon steel, bag filter housing

Bag Filter Housing Available Options

Steam jacket
Electro polishing

Heavy Duty Bag Filter Housings

Applications that require the installation of gauges, vents or pressurized air connections are easily accommodated by two 1/4"NPT(BSP) threaded cover taps. 316 stainless steel construction means superior corrosion resistance and consistent performance, year after year. A smooth, mirror finish,  makes it easy to completely clean the interior of the vessel.

bag filter housing Application:                                                                                                                                                                          Automotive
Food and Beverage
Chemical Processing
Paints, Inks, Resins and Coatings
Electronics
Petrochemicals
Municipal Water Treatment
Industrial Water Treatment
Pulp and Paper
Pharmaceutical
Lubricants, Metalworking Fluids
Solvents

Bag Filter Housing drawing for refering
