Filter Housing
- shanghai or ningbo
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Jhenten | |
| Model Number | Bag Filter Housing |
Product Description
Specifications
Filter housing1.Big flux
2.Long life
3.Evident effect
4.High intensi
Bag Filter Housing Features
Top inlet with liquid flow through cover
Sizes for #01 single or #02 double-length filter bags
Cover positively seals filter bag
Stainless steel basket
Flanged connections or other type
Maximum operating pressure of 150 psi
Maximum operating temperature of 400F with Viton® seals
Domed cover with swing bolts
Mounting legs to adjust vessel height
Type 304 or 316 stainless steel, or carbon steel,
Bag Filter Housing Available Options
Steam jacket
Electro polishing
Heavy Duty Bag Filter Housings
Applications that require the installation of gauges, vents or pressurized air connections are easily accommodated by two 1/4"NPT(BSP) threaded cover taps. 316 stainless steel construction means superior corrosion resistance and consistent performance, year after year. A smooth, mirror finish, makes it easy to completely clean the interior of the vessel.
Type No. | 7166-1P1S | 7166-1P2S |
| Filter Bag Size | #01 | #02 |
| Filter Area | 2.6 sq ft | 5.0 sq ft |
| Max. flow- Water* | 90 gpm (20T/H) | 180 gpm( 40T/H) |
| Maximum Operating Pressure | 150 psi | |
| Maximum Operating Temperature With Viton Seals | 400F | |
| Standard Inlet/Outlet | 2" | |
| Vent Ports 1/4" | 2 | |
| Drain 1/2" | 1 | |
| Number of Seals | 2 | |
| Surface finish | Matt polished or mirror polish or Bead blasted | |
| Material of Construction | Stainless steel Type 304 or 316 or carbon steel | |

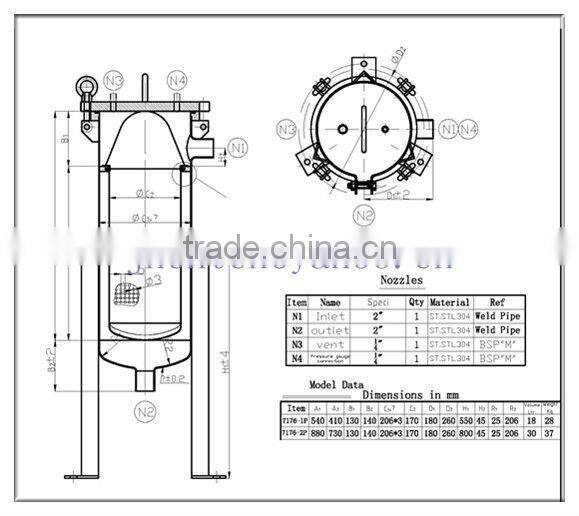

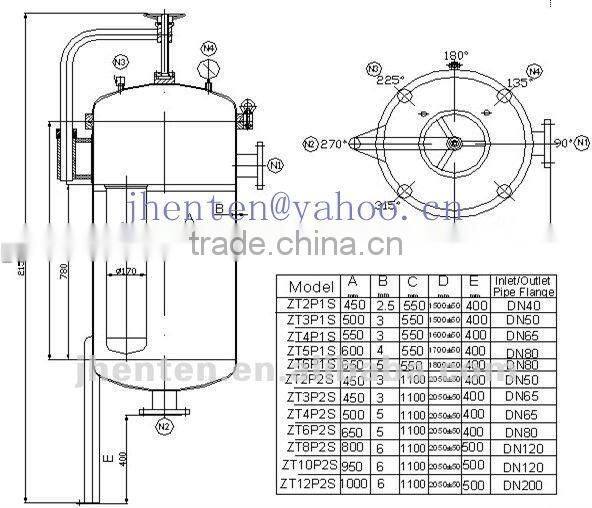

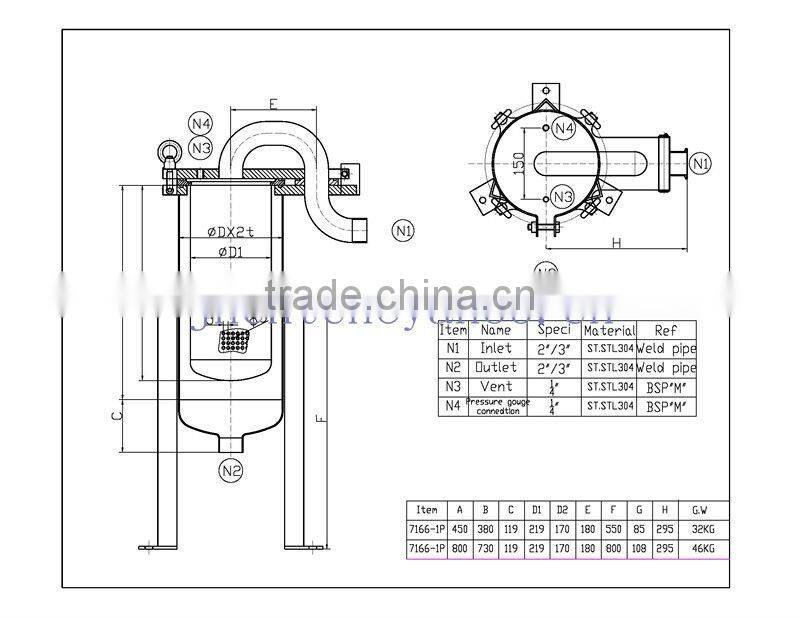

Bag Filter Housing drawing for refering
