Bag Filter

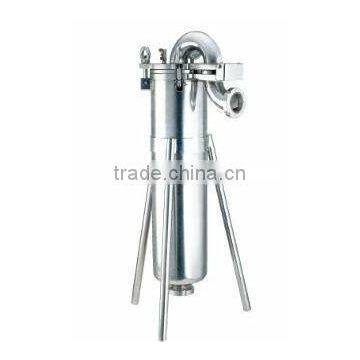

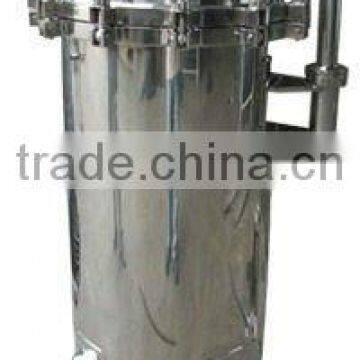

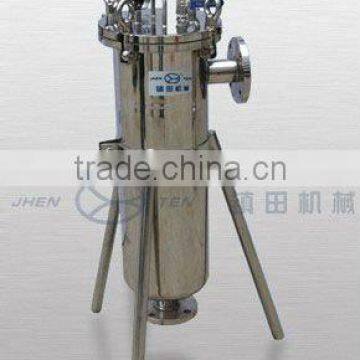

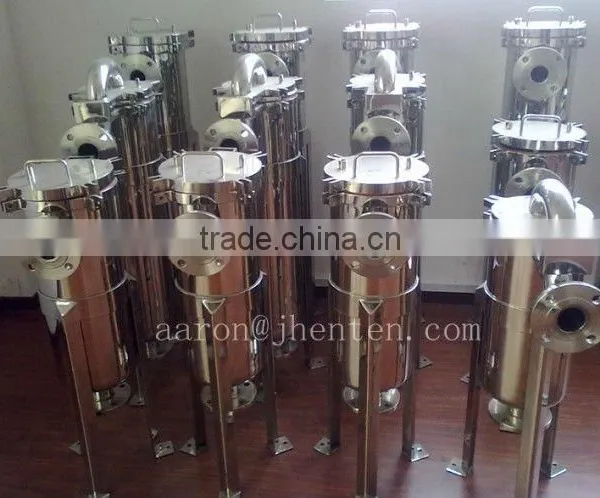

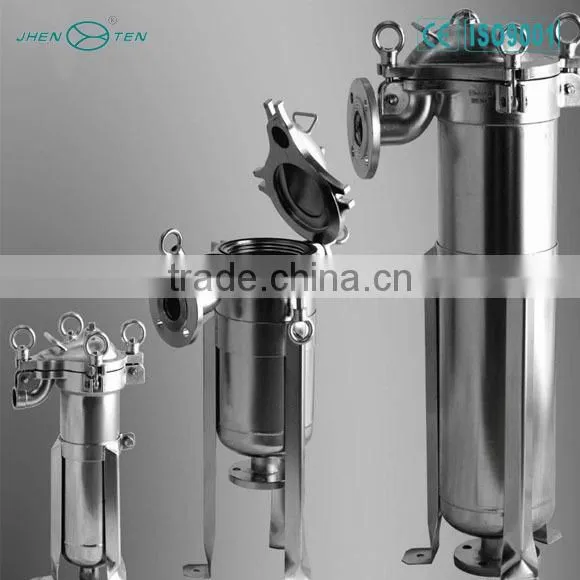

Bag Filter Housing

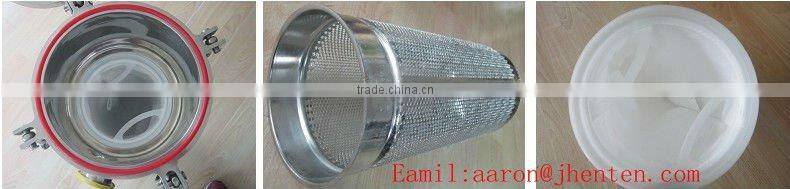

Jhenten's Liquid Bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as water, beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,@3,#4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big,achieving more efficient filtering result.Eye Bolt Closure System.The user friendly,cost effective bag filter housing for high volume,multiple applications and processes. The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.

Operation Parameters
Maximum Operation Pressure: .............150 PSI( 10 Bar)
Maximum Operation Temperature:.........230ºF (110 ºC)
Pressure Tolerance on Weld:.................0.85

Technical specification

 Pressure:150 PSI@149 °C

 Material: 304 or 316L Stainless Steel

 Construction : Single & Multi Round Bag Filter Housing

 Surface finish: Electro Polished or Mirror polished Ra<0.2um

 Filter Bag Type : #1Bay,#2Bag,#3Bag,#4Bag

 O-Ring:Bana-N,Silicone,EPDM,PTFE

 Inlet/outlet: DN50,DN80

 Fitting:With Pressure Gauge,Drain,Vent ,Swing bolts etc

Main Parameters (Side Entry Bag Filter Housing)

                                                          Accessories
